Lenze · EMF2180IB communication module (EthernetCAN) · Communication Manual · DMS 5.1 EN · 09/2016 · TD17 21
5 Installation
5.2 Electrical installation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

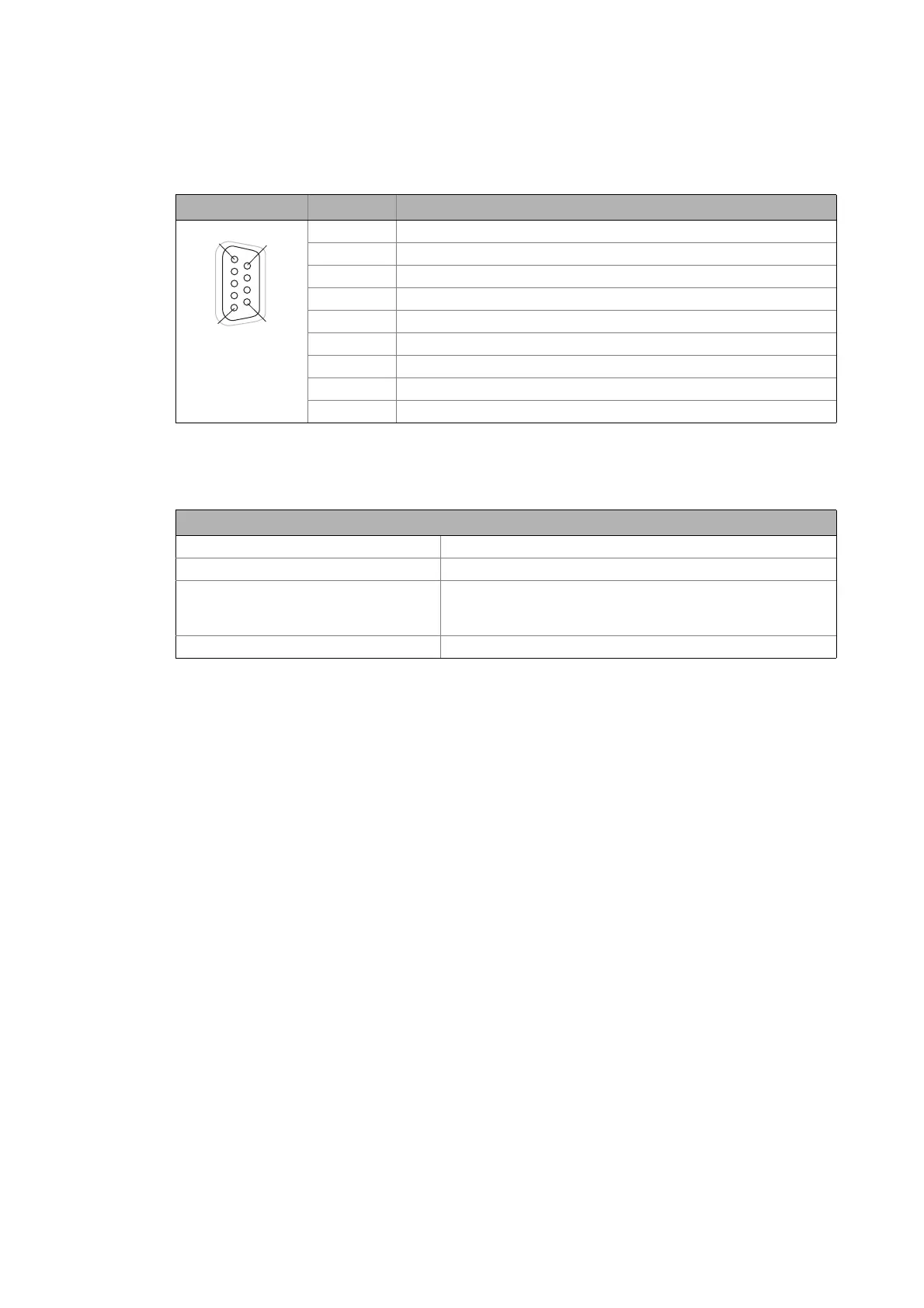

5.2.2.1 Assignment of the 9-pin Sub-D plug connector
5.2.2.2 Specification of the CAN bus cable
We recommend the use of CAN cables complying with ISO 11898-2:
View Pin Assignment
1-
2CAN-LOW
3CAN-GND
4-
5-
6-
7CAN-HIGH
8-
9-
1
6
5
9
CAN cable complying with ISO 11898-2
Cable type Twisted in pairs with shield
Impedance 120  (95 ... 140 )
Cable resistance/cross-section
Cable length  300 m:
Cable length 301 ... 1000 m:
 70 m/m / 0.25 ... 0.34 mm
2
(AWG22)
 40 m/m / 0.5 mm
2
(AWG20)
Signal propagation delay  5 ns/m
