5 Installation
5.2 Electrical installation
30
Lenze · EMF2180IB communication module (EthernetCAN) · Communication Manual · DMS 5.1 EN · 09/2016 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

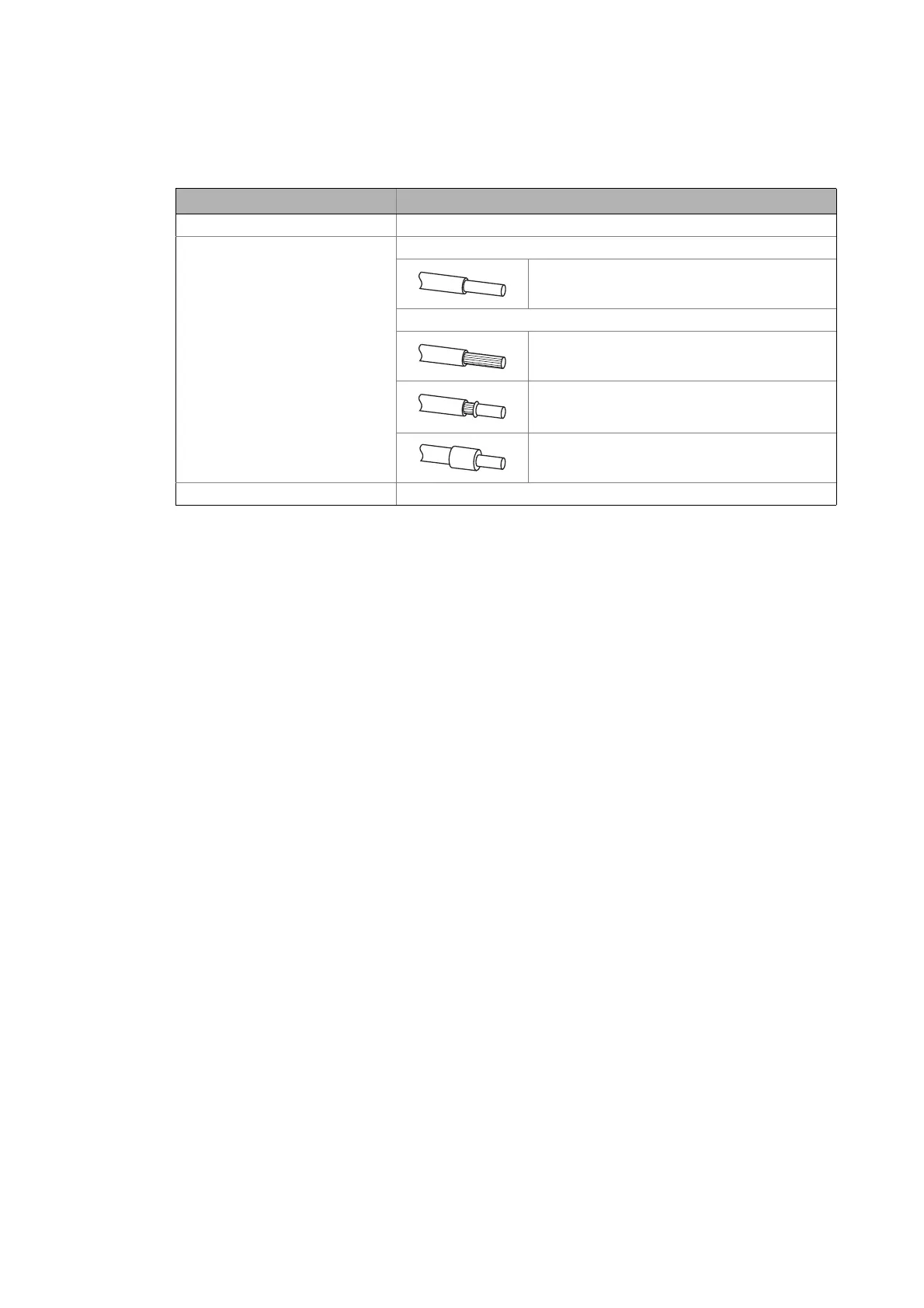

Terminal data
Range Values
Electrical connection Plug connector with spring connection
Possible connections rigid:
2.5 mm2 (AWG 12)
flexible:
without wire end ferrule
2.5 mm
2
(AWG 12)
with wire end ferrule, without plastic sleeve
2.5 mm
2
(AWG 12)
with wire end ferrule, with plastic sleeve
2.5 mm
2
(AWG 12)
Bare end 10 mm
