32×dig. I/O compact
5
The compact system
5.4
L
5.4−1
EDSPM−TXXX−9.0−11/2009
5.4 32×dig. I/O compact
The 32×dig. I/O compact module consists of 1 CAN gateway which serves as the
interface to the master bus system as well as 24 digital inputs and 8 digital outputs.
Each output can be loaded with up to 1 A. The status of the channels is displayed
by LEDs.
l 24 digital inputs
l 8 digital outputs
l Voltage supply via an external 24 V DC voltage source
l Connection to the system bus (CAN) via a 9−pole Sub−D plug
l Address and baud rate setting via coding switch
l The baud rate is stored permanently in an EEPROM in the module
l LEDs display the status
01
1
2
3
0
45
epm−t047

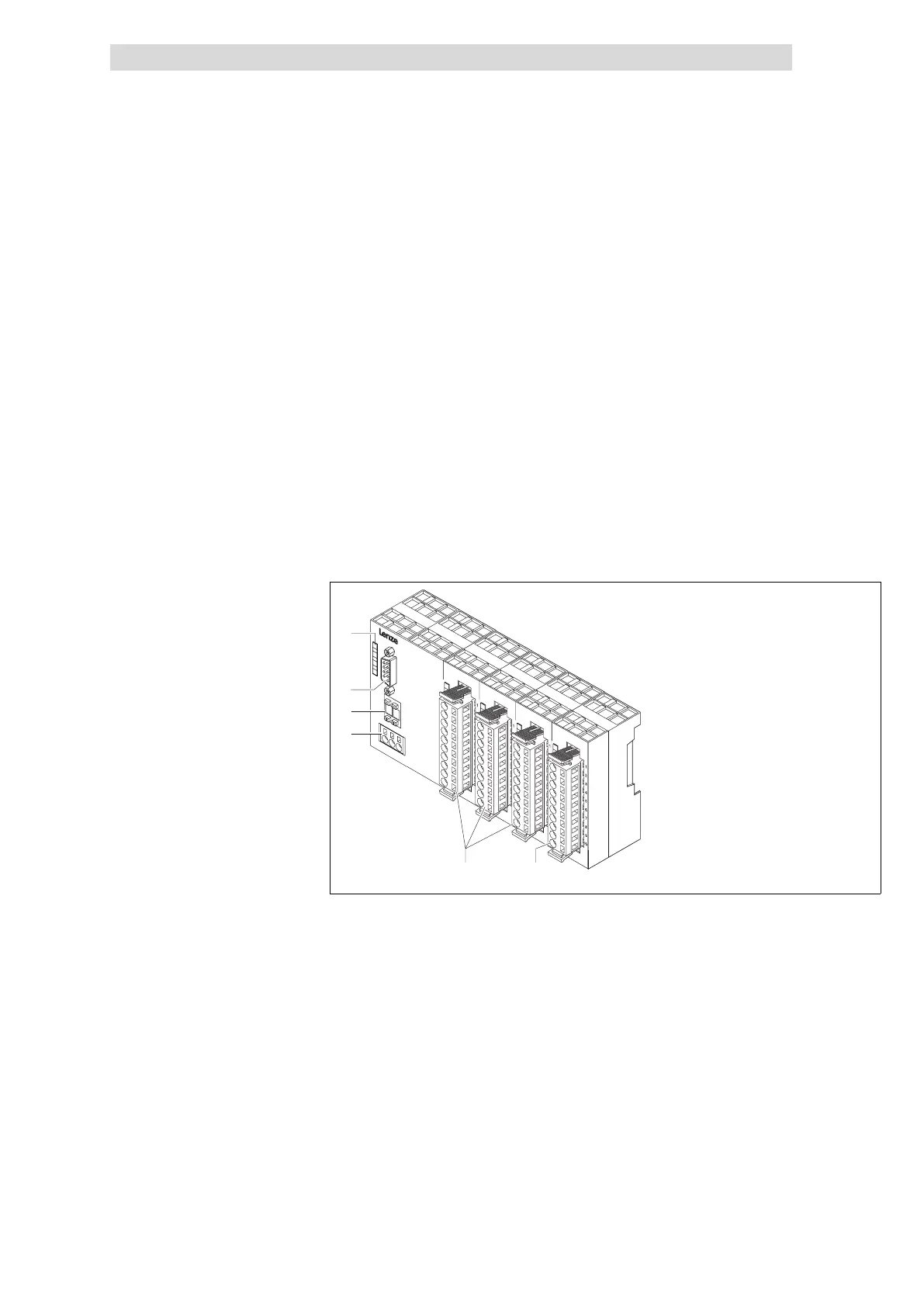

Fig. 5.4−1 32×dig. I/O compact
LEDs for status display
9−pole Sub−D plug for connection to the system bus (CAN)
Coding switch to set address and baud rate
External voltage supply connection
Terminal strips for digital input signals
Terminal strip for digital output signals
Description
Features
Overview
