9.3.5 Process image of the modular system

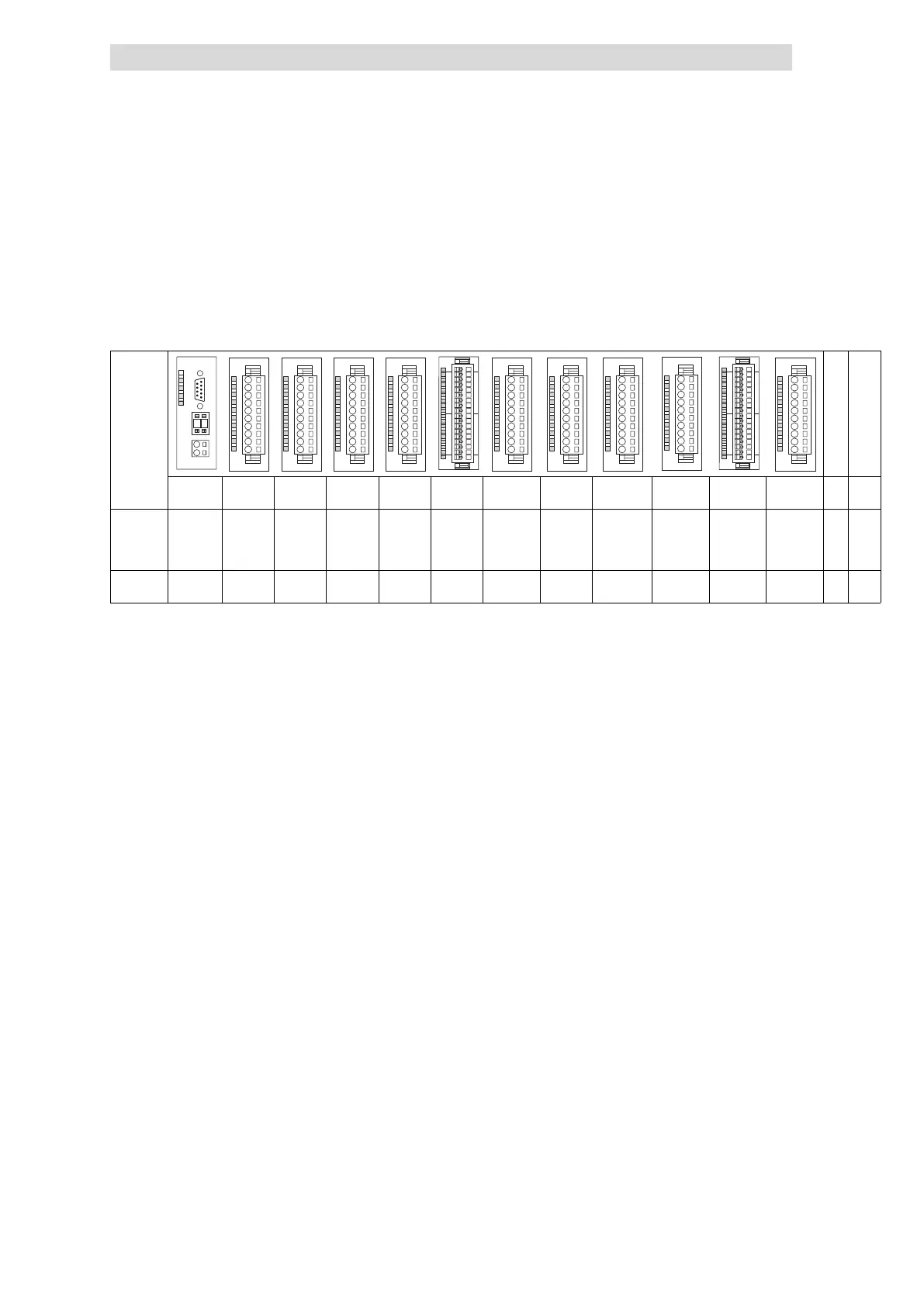

The process image of the modular system is explained on the basis of the following
example. In addition to the CAN gateway, maximally 32 modules can be
connected.
Module
L
0
1
L L L L
EPM – T211
L L L
L
EPM – T211
L
CAN
Gateway
8×DI 8×DI 8×DI 8×DI 16×DI 8×DO 4×AI 2/4×
Counter
SSI
interface
1×counter
/ 16×DI
4×AI/AO
— —
Process
data
— 1 byte TX 1 byte TX 1 byte TX 1 byte TX 2 bytes
TX
1 byte RX 8 bytes
TX
10 bytes
TX
10 bytes
RX
4 bytes TX
4 bytes
RX
6 bytes TX
6 bytes
RX
4 bytes TX
4 bytes
RX
Module
No.
M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11 ... M32
