Lenze EPM-T1 Series - Supply Voltage Connection

Supply voltage connection
7
Electrical installation
7.3
L
7.3−1
EDSPM−TXXX−9.0−11/2009
7.3 Supply voltage connection
PE
N
L1
~
–
DC 24 V (DC 20.4 … 28.8 V)
–+
EPM-T1xx EPM-T2XX
EPM-T3XX
EPM-T4XX
GND
X1
GND
PEPE
PE
0
epm−t063

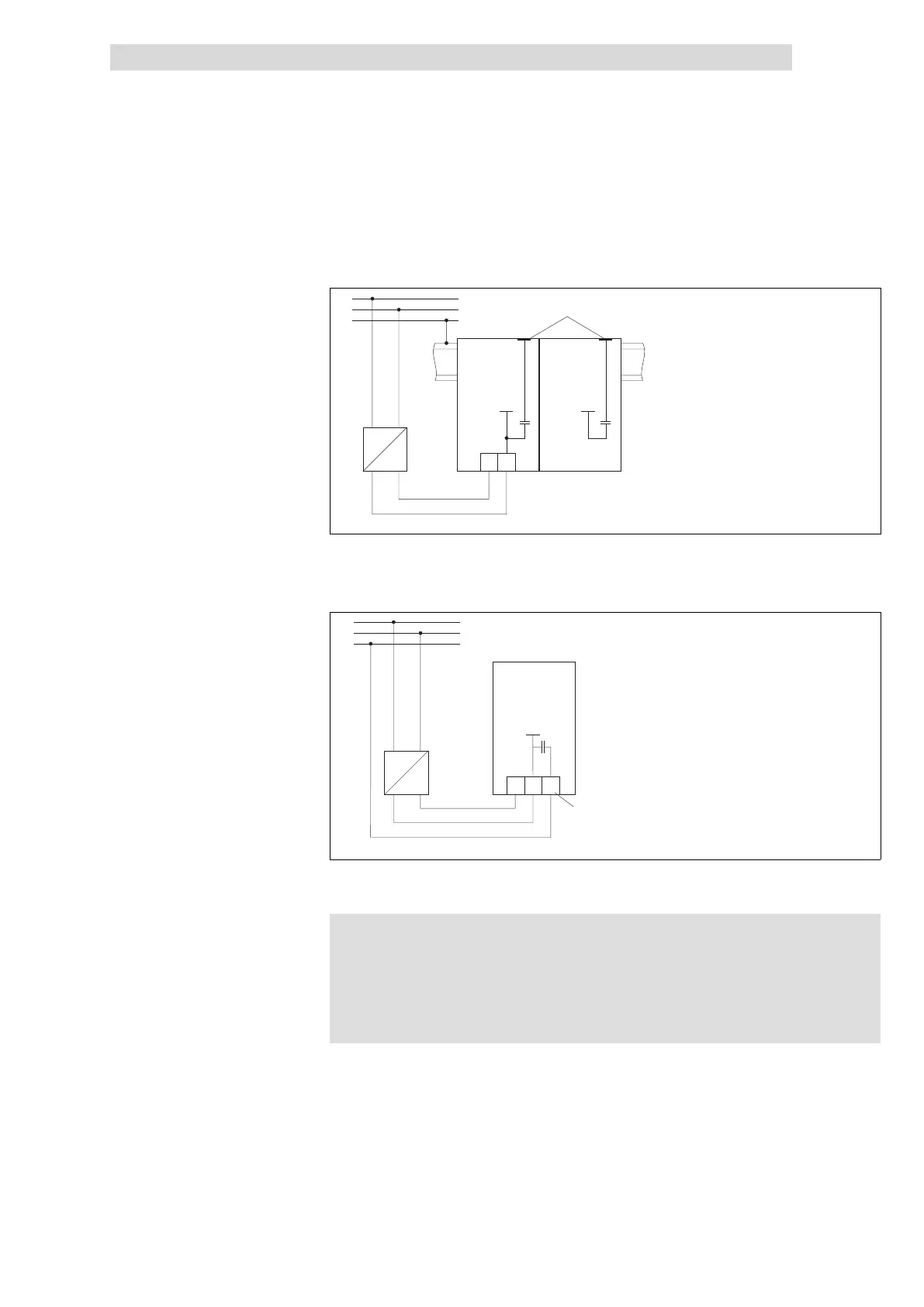

Fig. 7.3−1 Connecting the supply voltage

PE connection of the modules is effected by means of the DIN rail and is
established via a contact on the backplane of the module
PE
N
L1
~
–
DC 24 V (DC 20.4 … 28.8 V)
–
PE
+
EPM-T83X
GND
X1
0
epm−t132
Fig. 7.3−2 Connecting the supply voltage

The PE connection of the modules is made via terminal X1/PE
) Note!
Specific connection data is included in the corresponding module
description:
l Modular system ( 4.1 ff)
l Compact system ( 5.1 ff)
Modular system
Compact system
