Lenze EPM-T1 Series - Input Data Output Data

Parameterising 1xcounter/16xdigital input module
Input data / output data
12
Parameter setting via system bus (CAN) / CANopen
12.6
12.6.2
L
12.6−2
EDSPM−TXXX−9.0−11/2009
12.6.2 Input data / output data
epm−t192

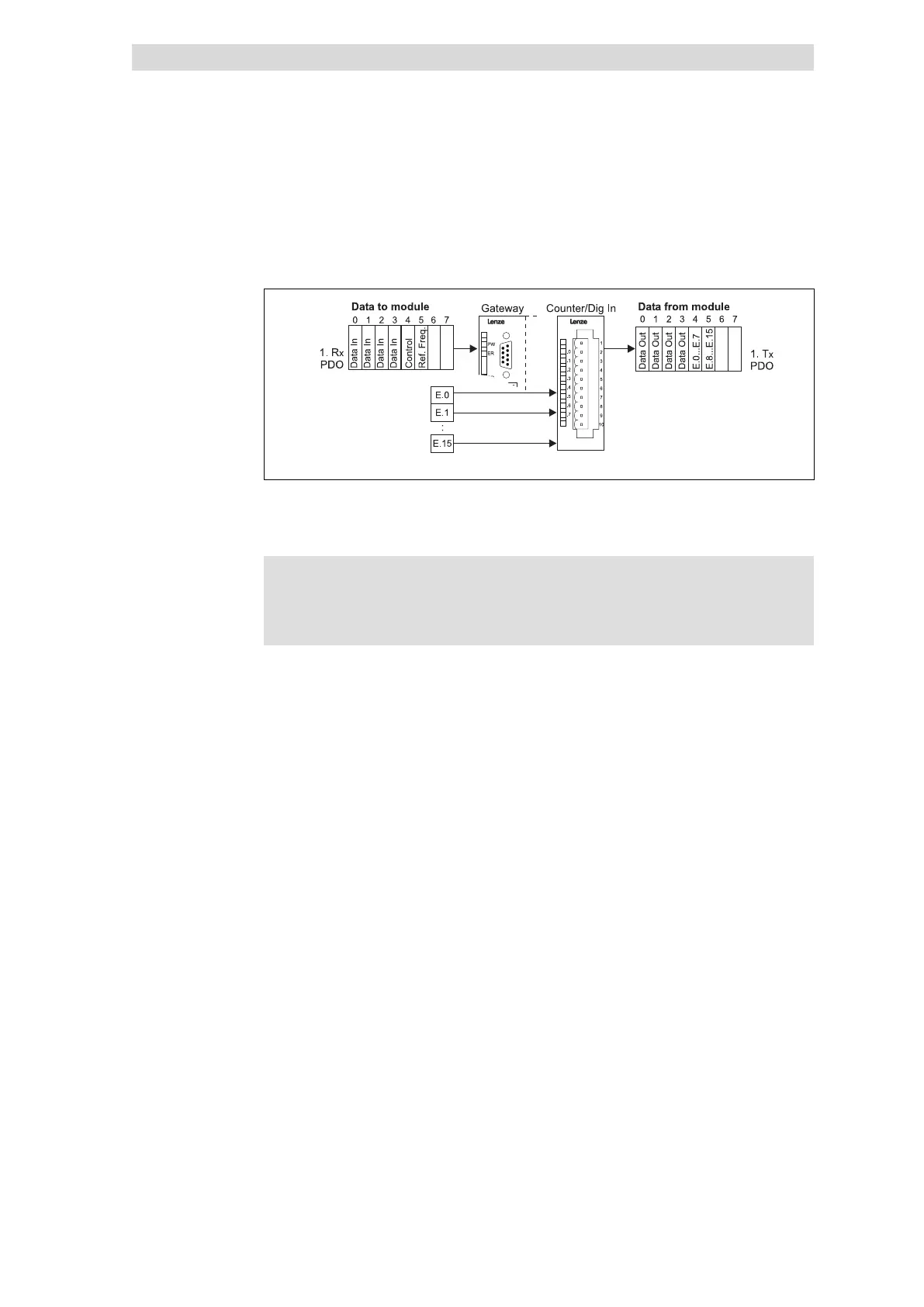

Fig. 12.6−2 Data input / data output 1xcounter/16xdigital input
For data input / output, six bytes are available which are transmitted via a PDO to
the counter (Rx PDO) or output by the counter (Tx PDO).
) Note!
Input and output data get lost when the mains supply is switched
off/on; they are not stored!
