Lenze EPM-T1 Series - Page 337

Parameterising 2/4xcounter module
2 × 32 bit counter with GATE and RES level−triggered (modes 12 and 13)
12
Parameter setting via system bus (CAN) / CANopen
12.4
12.4.7
L
12.4−17
EDSPM−TXXX−9.0−11/2009
epm−t084

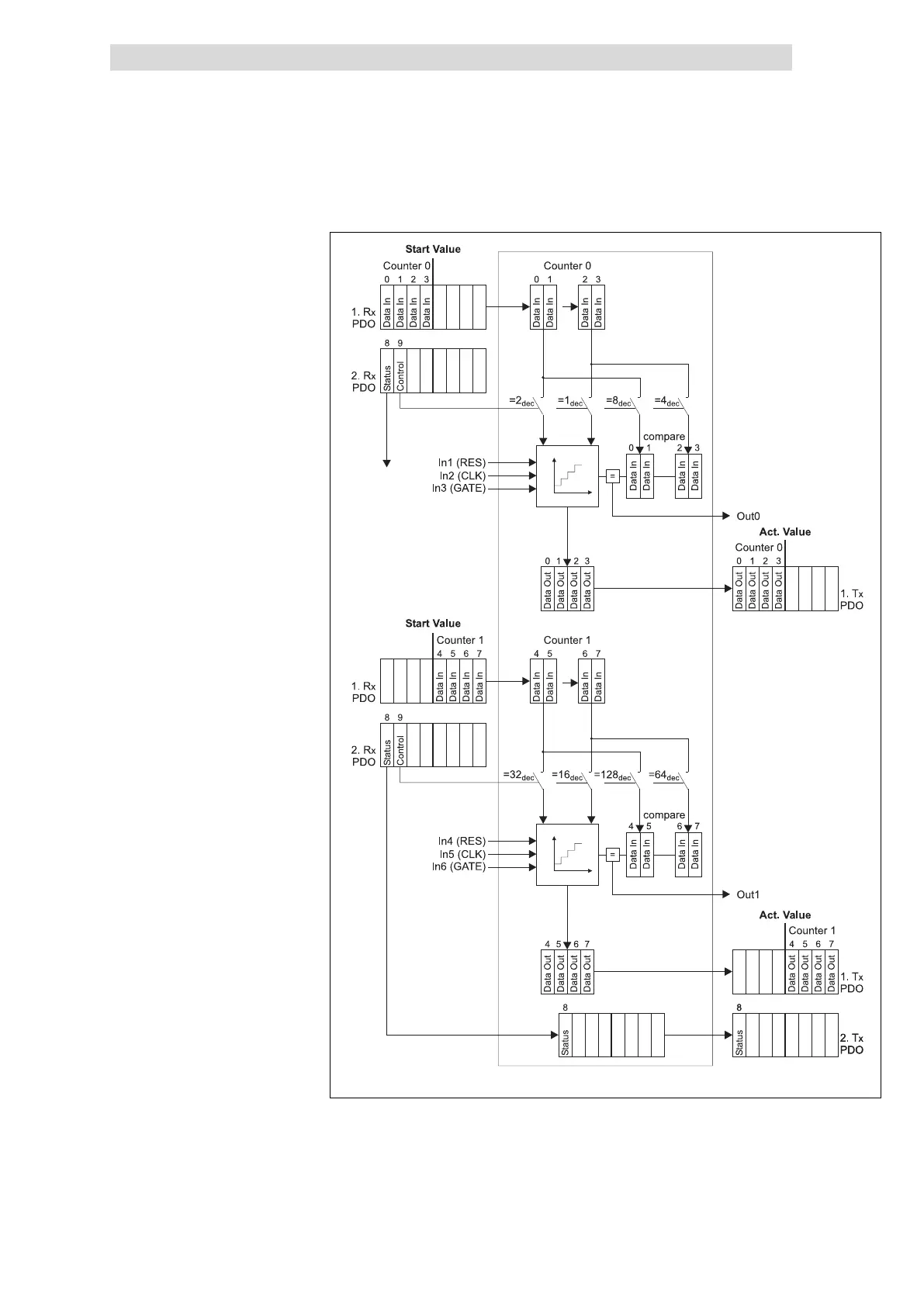

Fig. 12.4−24 Counter access of the 2/4xcounter in the modes 12 and 13
Counter access
