Lenze EPM-T1 Series - Page 340

Parameterising 2/4xcounter module
2 × 32 bit counter with GATE, RES level−triggered and auto reload (modes 14 and 15)
12
Parameter setting via system bus (CAN) / CANopen
12.4
12.4.8
L
12.4−20
EDSPM−TXXX−9.0−11/2009
epm−t086

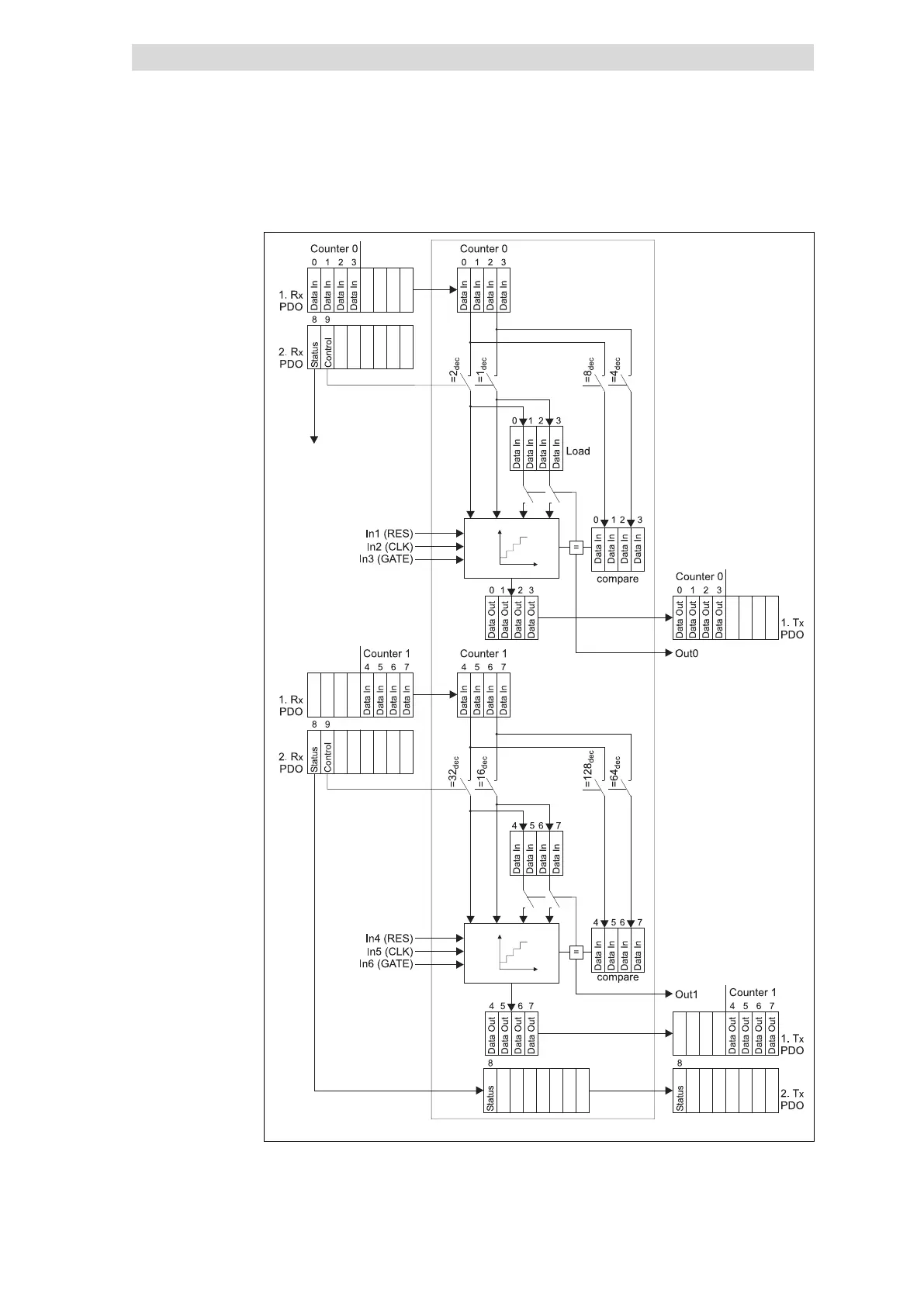

Fig. 12.4−27 Counter access of the 2/4xcounter in the modes 14 and 15
Counter access
