Parameterising 2/4xcounter module
Encoder with GATE (modes 36 ... 38)
12
Parameter setting via system bus (CAN) / CANopen
12.4
12.4.19
L
12.4−54
EDSPM−TXXX−9.0−11/2009
epm−t165

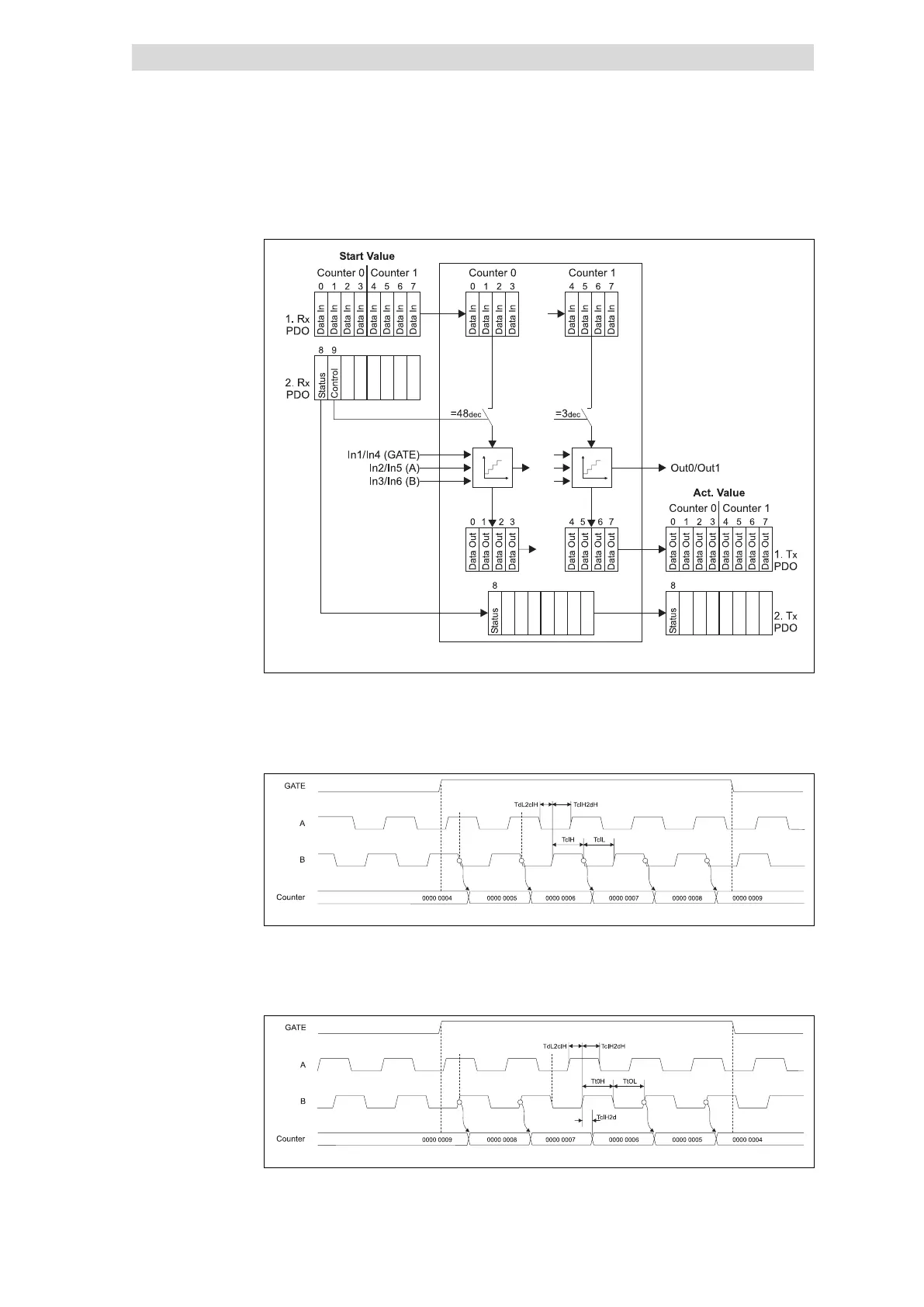

Fig. 12.4−74 Counter access of the 2/4xcounter in the modes 36, 37 and 38
Every HIGH−LOW edge at input IN2 / IN5 (A) increments the counter by 1 if a HIGH
level is applied to input IN3 / IN6 (B) at this time.
epm−t166
Fig. 12.4−75 Signal characteristic of 2/4xcounter in the mode 36 (upcounter)
Every LOW−HIGH edge at input IN2 / IN5 (A) decrements the counter by 1 if a HIGH
level is applied to input IN3 / IN6 (B) at this time.
epm−t167
Fig. 12.4−76 Signal characteristic of 2/4xcounter in the mode 36 (downcounter)
Counter access
Signal characteristic in mode 36
