Parameterising 1xcounter/16xdigital input module
32 bit counter (mode 1)
12
Parameter setting via system bus (CAN) / CANopen
12.6
12.6.4
L
12.6−8
EDSPM−TXXX−9.0−11/2009
epm−t180

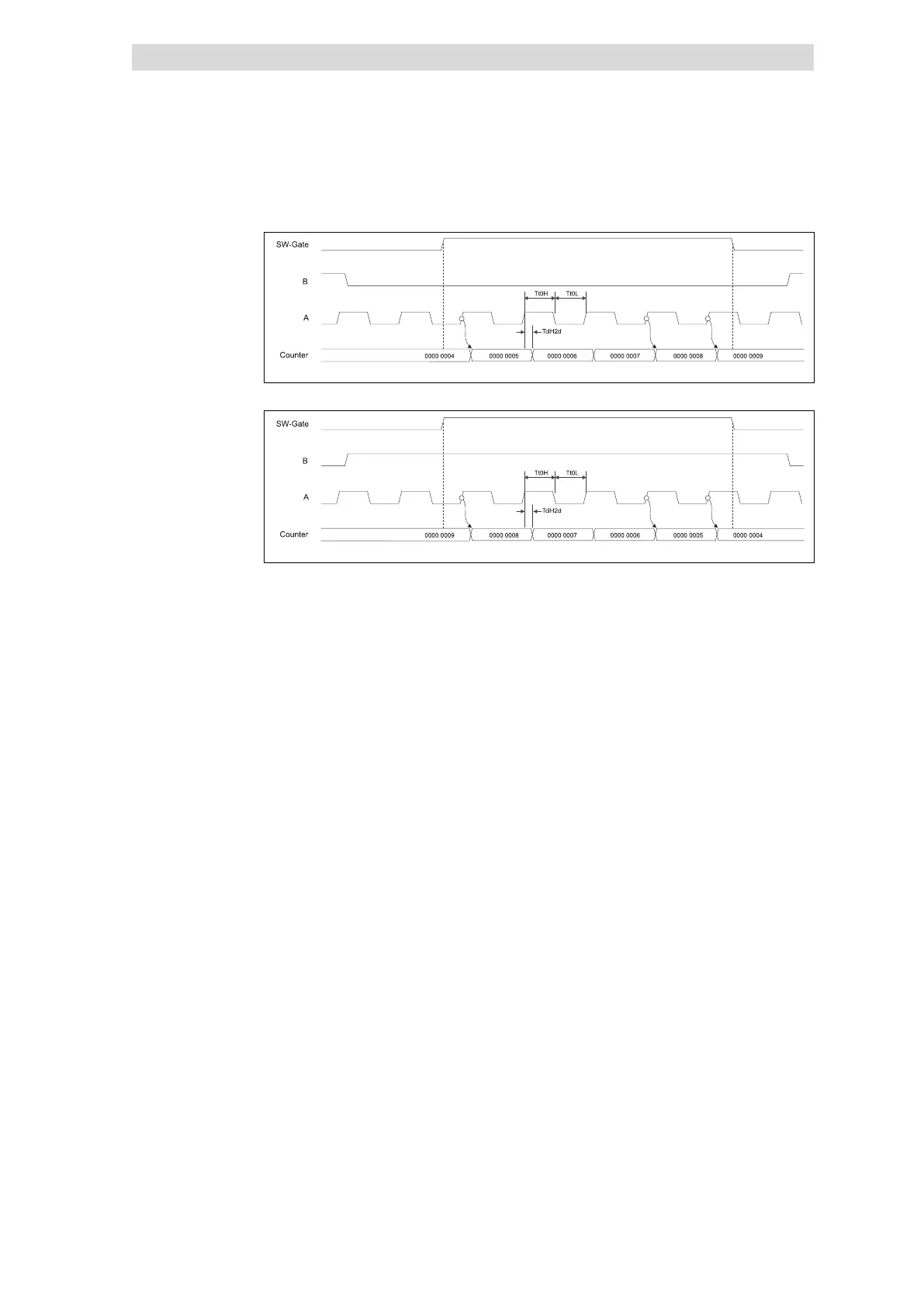

Fig. 12.6−8 Signal characteristic of 1xcounter/16xdigital input in the mode 1 (upcounter)
epm−t181
Fig. 12.6−9 Signal characteristic of 1xcounter/16xdigital input in the mode 1 (downcounter)
Signal characteristic
