8×digital input / output
4
The modular system
4.13
L
4.13−1
EDSPM−TXXX−9.0−11/2009
4.13 8×digital input / output
The channels of the module 8×digital input / output can be used either as digital
inputs or outputs. The digital inputs or outputs are supplied via an external voltage
source.
) Note!
The chapter "Parameter setting" describes how to parameterise
the module.
l 8 digital inputs or outputs, depending on the circuit configuration
l DC 24 V supply voltage
l Each digital output has a capacity of up to 1 A
l LED shows the status
0
1
2
epm−t015

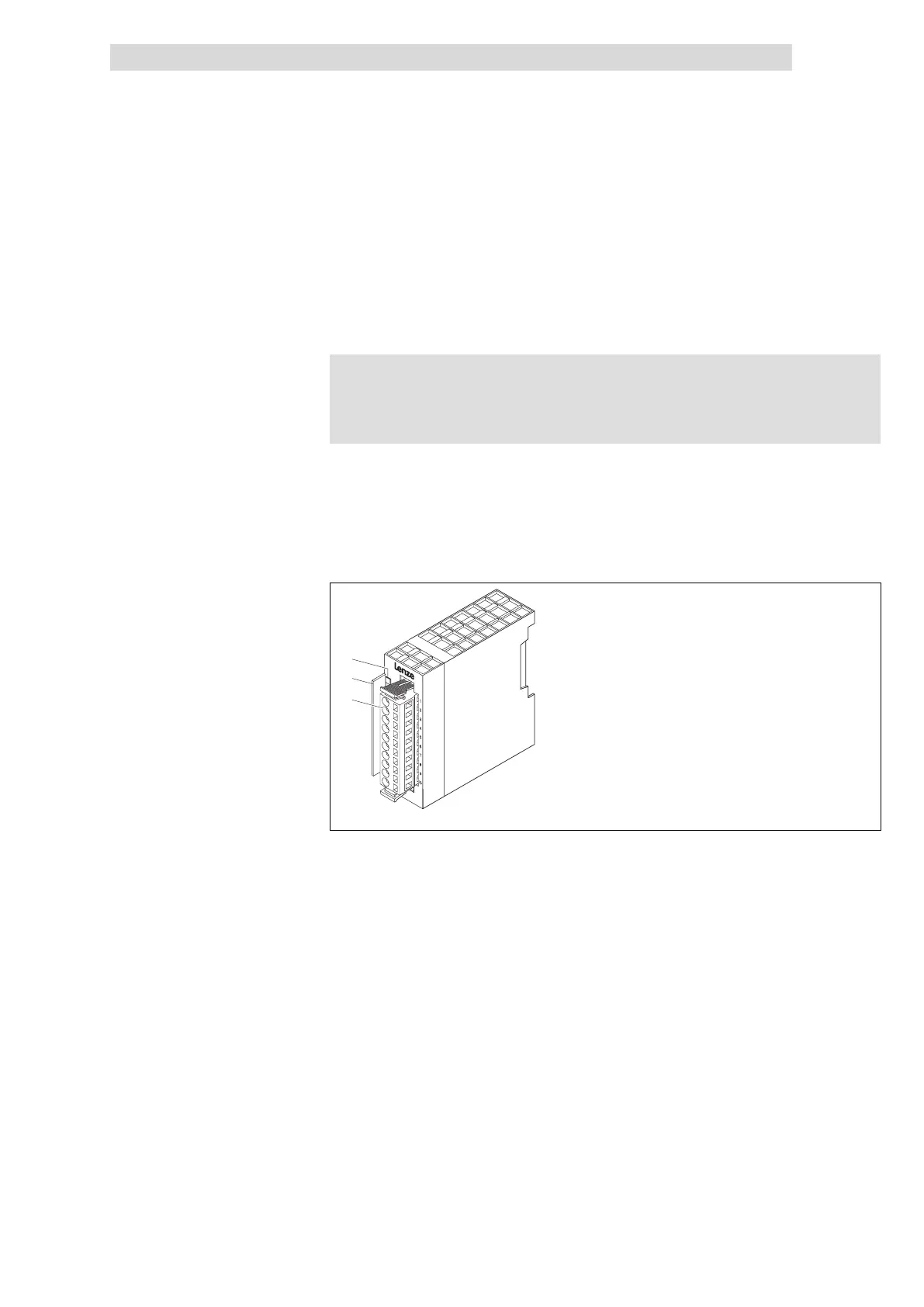

Fig. 4.13−1 Overview of 8×digital input / output
LED for status display
Bit address label card
Plug−in terminal strip
Description
Features
Overview
