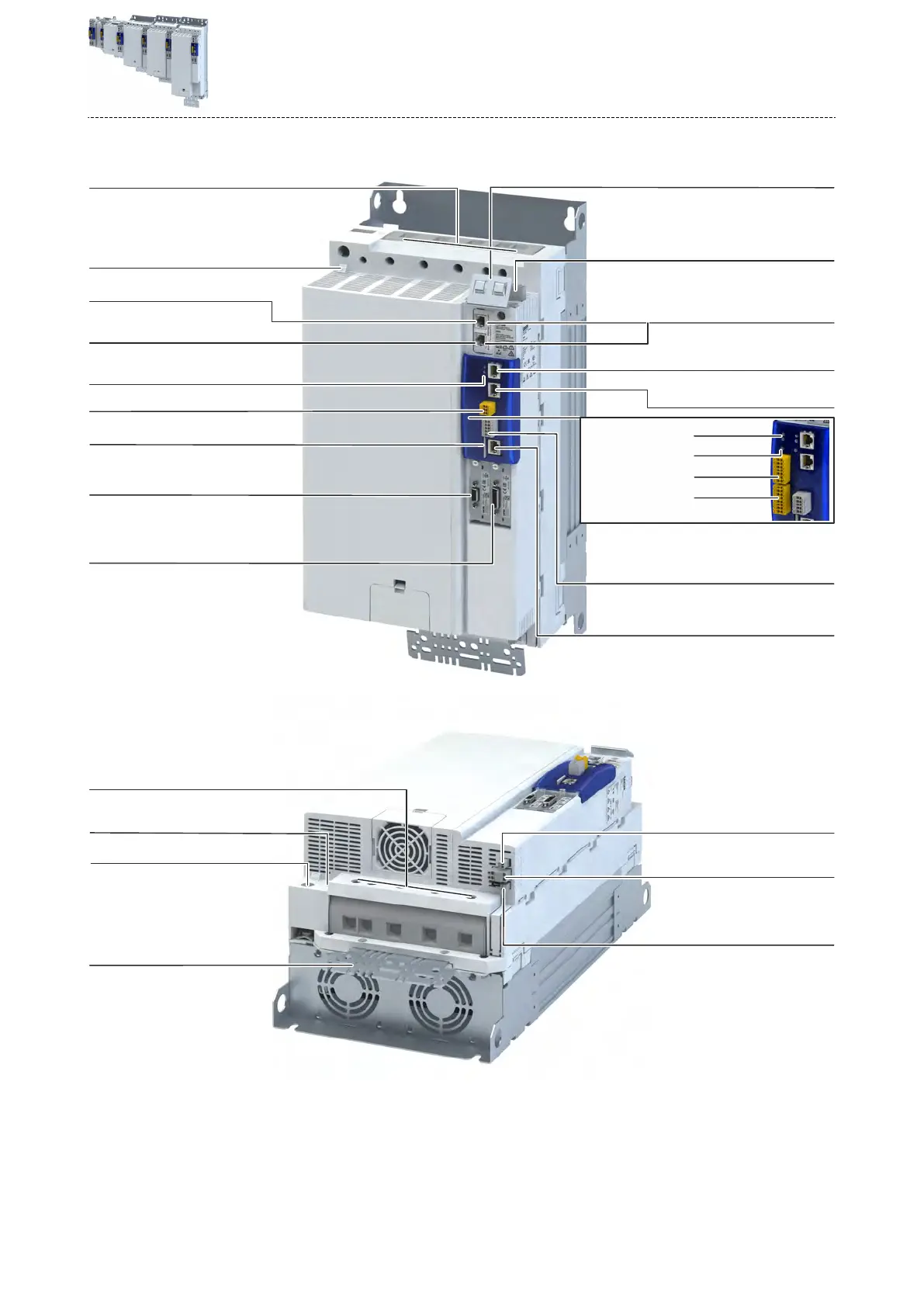

Leistungsbereich 30 kW ... 45 kW
X83
X82
S82
Schirmauflage
Steueranschlüsse
SD-Karte
Option
A
B
PE-Anschluss
Netzanschluss/DC-Bus
X100
Motorgeber
Option
Option
Lastgeber oder Leitgeber
X5
Status-LED Netzwerk
X236
X237
X1
X16
Engineering Port
Inbetriebnahme,
Diagnose
X3
Steuerklemme
Basic Safety-STO
onboard EtherCAT
OUT
onboard EtherCAT IN
24-V-Versorgung
Steuerelektronik
X2x6
Netzwerk
Option
X2x7
Netzwerk
Option
Status-LEDs Umrichter
Extended Safety
Option
Status-LEDs
PE-Anschluss
X106
Motorhaltebremse
X107
24-V-Versorgung
Motorhaltebremse
X109
PTC-Eingang
X105
Motoranschluss
Bremswiderstand
Schirmauflage Motoranschluss
IT-Schraube
PE-Anschluss
Produknformaon
Auss
taung
17
