Device description
Leuze electronic GmbH + Co. KG BPS 307i 18
NOTICE
Configure the BPS for the used BCB type!
Ä The used BCB type must be set in the webConfig tool with the Tape selection parameter;
see chapter 9.3.4 "CONFIGURATION function".
Ä On delivery, the BPS is set for BCBG40… with a 40mm grid.
If the BCBG30… with a 30mm grid is used, the Tape selection must be adjusted in the
BPS configuration.
Ä If the used BCB type does not correspond to the Tape selection configured in the BPS, ex-
act position determination cannot be performed by the BPS.

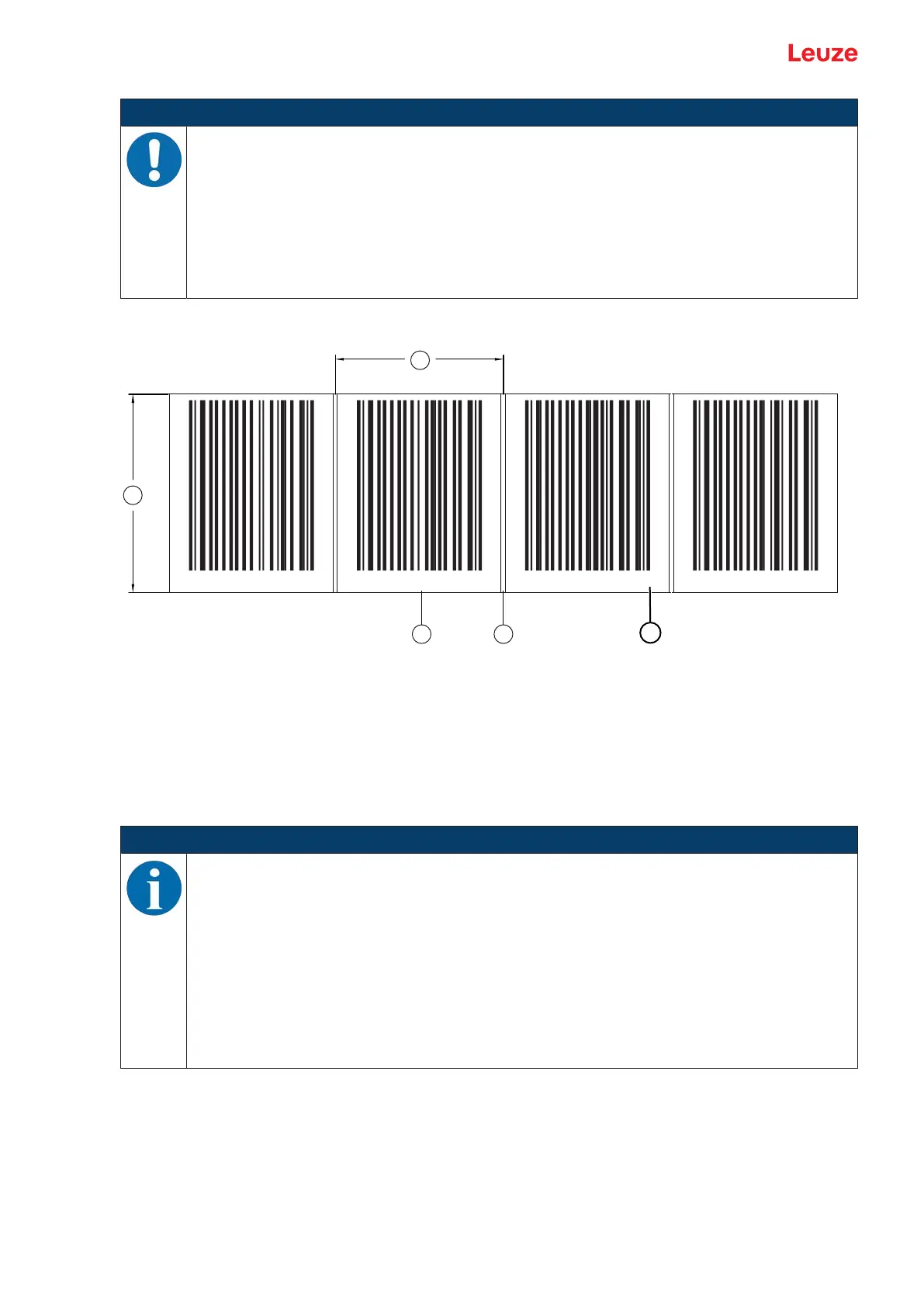

BCBG40… barcode tape with 40mm grid
1 2
000040 000044 000048 000052
3
4
G40LeuzeG40LeuzeG40LeuzeG40Leuze
5
1 Position label with position value
2 Cut mark
3 Grid dimension = 40mm
4 Height
Standard heights: 47mm and 25mm
5 G40 = designation in plain-text for 40mm grid
Fig.3.8: BCBG40… barcode tape with 40mm grid
NOTICE
Standard BCBG40… bar code tapes are available in various length increments in the following
heights:
- 47mm
- 25mm
Special BCBG40… bar code tapes are available in mm height increments between 20 and
140mm.
An entry wizard is available for special bar code tapes on the Leuze website under devices
BPS300 - Accessories tab. The entry wizard provides support when entering the individual
pieces of tape data and creates a query or order form with the correct part number and type
designation.
