Leuze BPS 307i - Mounting with the BT 300 W Mounting Bracket; Mounting with BT 56 Mounting Device

Mounting
Leuze electronic GmbH + Co. KG BPS 307i 41
1
2
3
1 Clamp profile
2 Clamping jaws
3 Screw terminal

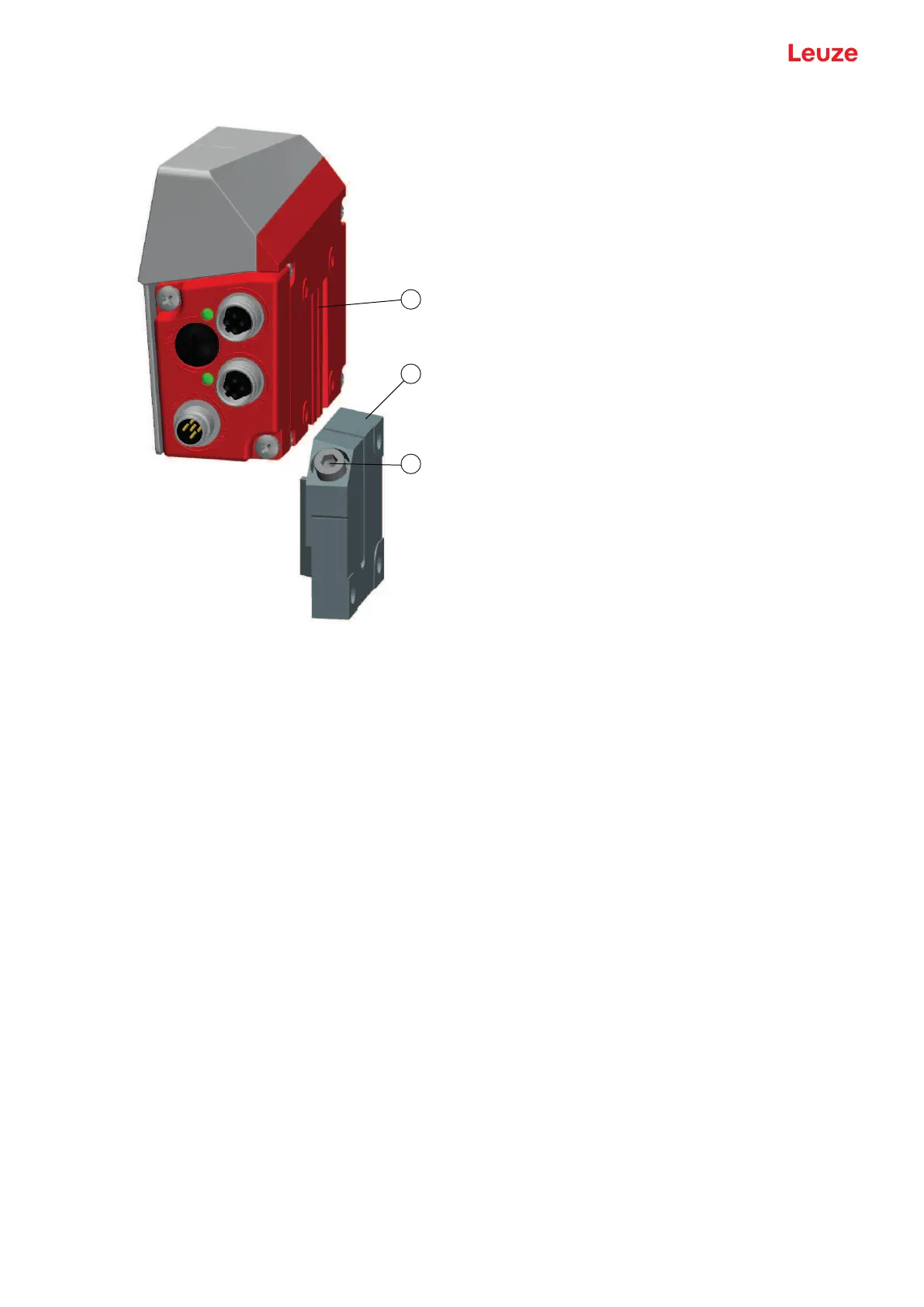

Fig.6.10: Mounting the BPS with the BTU0300M-W mounting device
Ä Mount the BTU0300M-W on the system side with M6 fastening screws (not included in delivery con-
tents).
Ä Mount the BPS with the dovetail fastening grooves on the clamping jaws of the BTU0300M-W with limit
stop at end.
Ä Secure the BPS with the M6 screw terminal.
Maximum tightening torque for the M6 screw terminal: 8Nm
6.2.4 Mounting with the BT300W mounting bracket
Mounting of the BPS with a BT300W mounting bracket is intended for wall mounting.
For ordering information see chapter 14 "Order guide and accessories"; for dimensioned drawing see chap-
ter 13.4 "Dimensioned drawings: Accessories".
Ä Mount the BT0300 W mounting bracket on the system side with M6 fastening screws (included in de-
livery contents).
Ä Mount the BPS on the mounting bracket with M4 fastening screws (included in delivery contents).
Maximum tightening torque of the M4 fastening screws: 2Nm
6.2.5 Mounting with BT56 mounting device
Mounting of the BPS with a BT56 mounting device is intended for rod mounting.
For ordering information see chapter 14 "Order guide and accessories"; for dimensioned drawing see chap-
ter 13.4 "Dimensioned drawings: Accessories".
Ä Mount the BT56 on the rod with the clamp profile (system-side).
Ä Mount the BPS with its fastening grooves on the clamping jaws of the BT56 with limit stop at end.
Ä Secure the BPS with the M6 screw terminal.
Maximum tightening torque for the M6 screw terminal: 8Nm
