13.1 General specifications
Tab.13.1: Optics
Light source Laser diode
Wavelength 655nm
Impulse duration <150µs
Max. output power 1.8mW
Average life expectancy laser diode 100,000 h (typ. at +25°C)
Beam deflection Via rotating polygon wheel
Exit window Glass
Laser class 1acc. to IEC/EN60825-1:2014
Working range 50mm…170mm
At a reading distance of 50mm, the reading field width is
120mm.
At a reading distance beyond 100mm, the reading field width is
160mm (see BPS reading field curve).
250 7550 100 150 200 250 30012
5 175 225 275
25
50
75
100
-25
-50
-75
-100
1
2
1 Reading field width [mm]
2 Reading distance [mm]

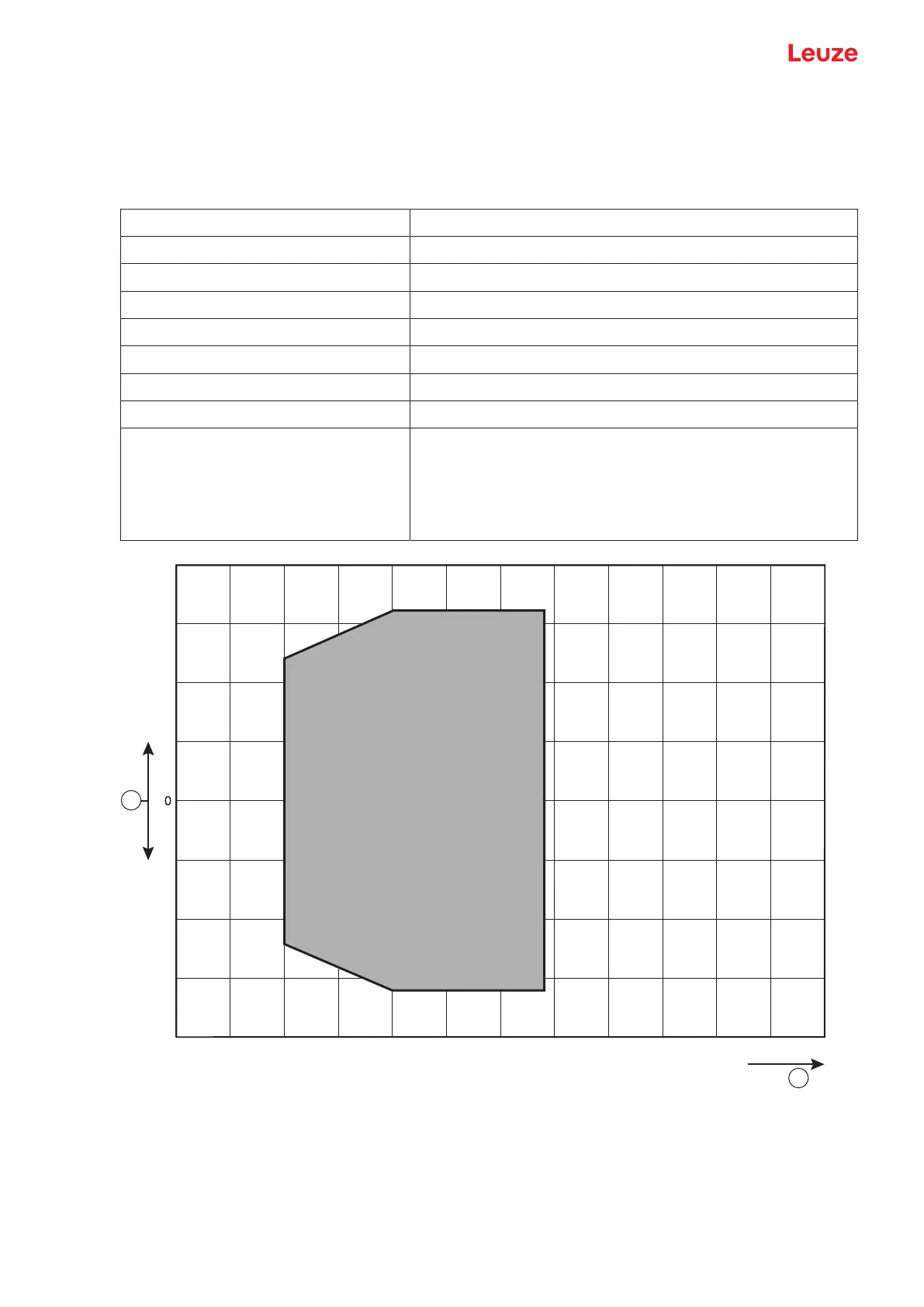

Fig.13.1: BPS reading field curve
