Mounting
Leuze electronic GmbH + Co. KG BPS 307i 40
6.2.2 Orientation of the BPS to the bar code tape

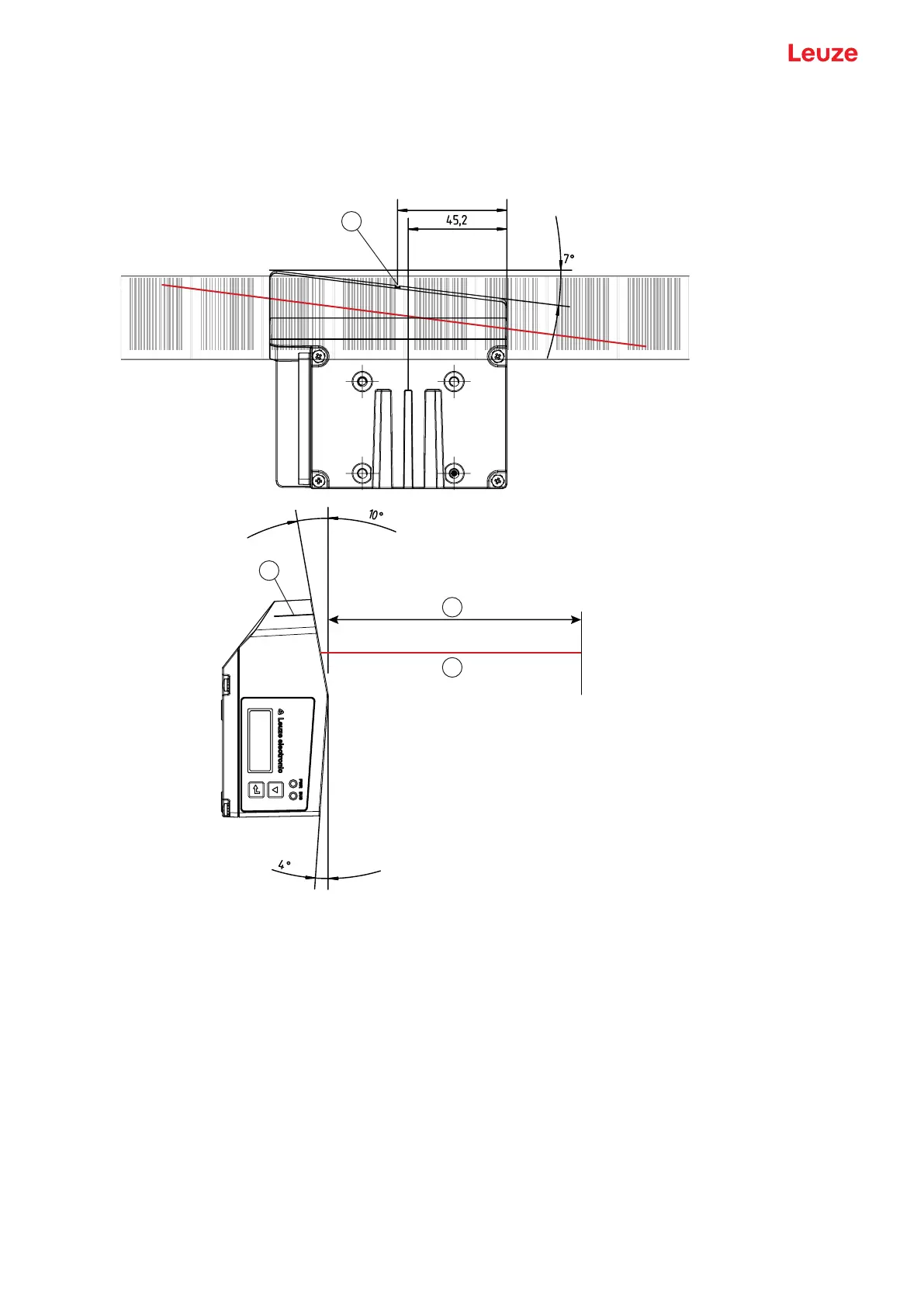

The beam of the BPS must be oriented at an incline of 7° to the bar code tape (see following figure). When
positioning, make certain that the angle of radiation to the rear side of the housing is 90° and the reading
distance to the bar code tape is maintained.
00004
0
00004
4
00004
8
00005
2
000056
00006
0
00006
4
00006
8
G40
Leuze
G40
Leuze
G40
Leuze
G40
Leuze
G40
Leuze
G40
Leuze
G40
Leuze
G40
Leuze
1
3
2
2
50
1 Reading distance
2 Reference point for the bar code position
3 Scanning beam
Fig.6.9: Beam exit
6.2.3 Mounting with the BTU 0300M-W mounting device
Mounting the BPS with a BTU0300M-W mounting device is intended for wall mounting.
For ordering information see chapter 14 "Order guide and accessories"; for dimensioned drawing see chap-
ter 13.4 "Dimensioned drawings: Accessories".
