6.1.2 Cutting barcode tapes
NOTICE
Avoid cutting BCB!
Ä If possible, avoid cutting barcode tapes.
Optimum position value determination by the BPS is achieved with continuously affixed
BCB.
Ä If there are mechanical gaps, first affix the BCB continuously. Then cut the BCB.

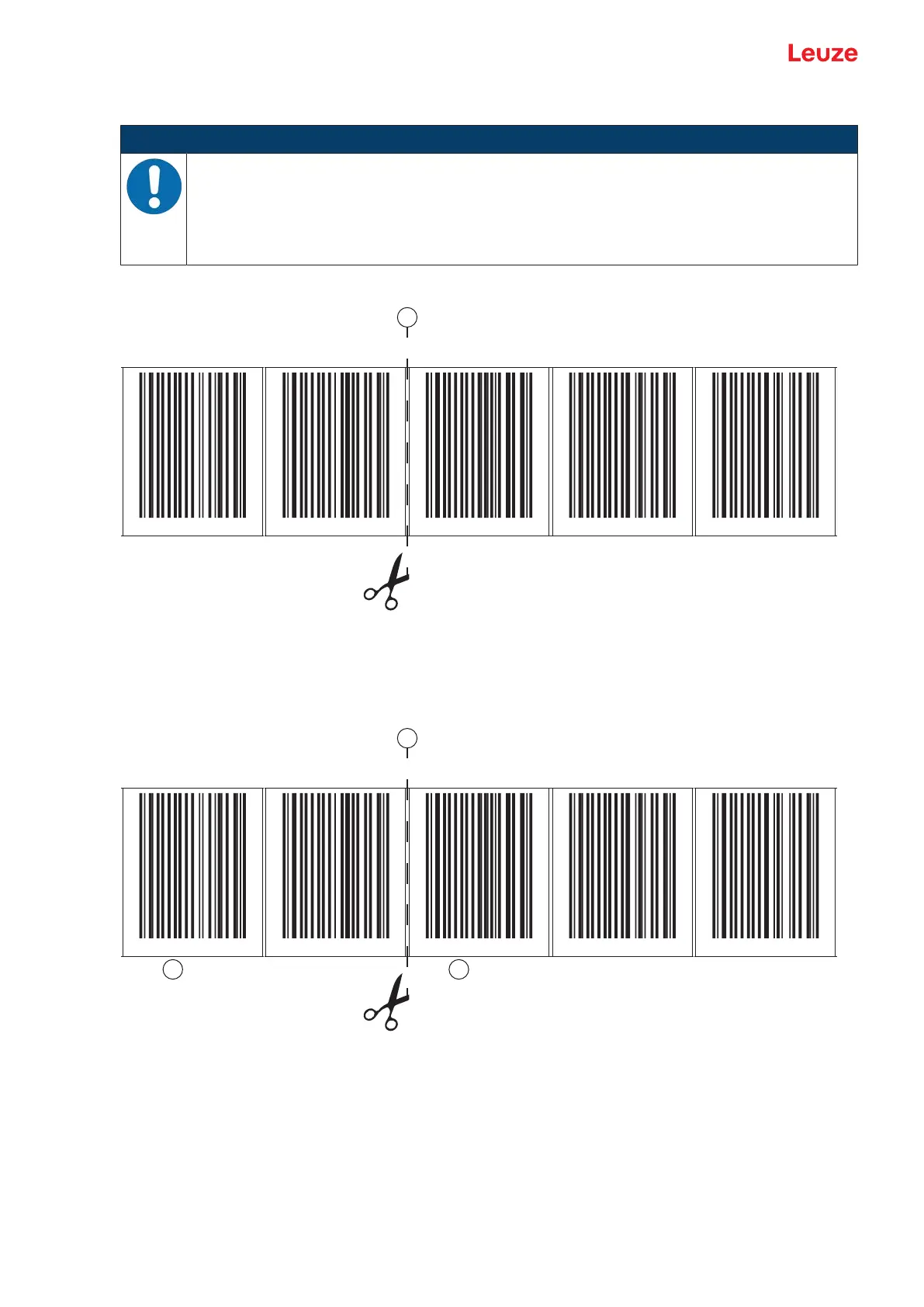

The BCB is cut at the indicated cut marks:
1
000040 000044 000048 000052 000056
G40L
euze G40Leuze G40Leuze G40Leuze G40Leuze
1 Cut mark
Fig.6.1: Cut mark on the bar code tape
If another BCB is to be affixed directly after the preceding BCB, the subsequent barcode value must differ
from the preceding BCB by at least 1m:
1
000040 000044 000148 000152 000156
2
3
G40L
euze G40Leuze G40Leuze G40Leuze G40Leuze
1 Preceding barcode tape
2 Cut mark
3 Subsequent barcode tape, value range +1m
Fig.6.2: Cut bar code tape
If there is a gap without tape after the preceding BCB, it must be at least 300mm wide before the subse-
quent BCB is affixed. The first barcode value of the subsequent BCB must differ by at least 20 (200mm)
from the last barcode value of the preceding BCB.
