Electrical connection
Leuze electronic GmbH + Co. KG BPS 307i 44
7.2 MS307 connection hood with connectors
The MS307 connection hood features two M12 connector plugs and a Mini-Btype USB socket as a ser-
vice interface.
The integrated parameter memory for the simple replacement of the BPS is located in the MS307.
1
3
4
2
1 PWR/SW IN/OUT: M12 plug (A-coded)
2 SERVICE: Mini-B USB socket (behind protective cap)
3 HOST/BUSIN: M12 plug (B-coded), SSI
4 BUS OUT: not equipped

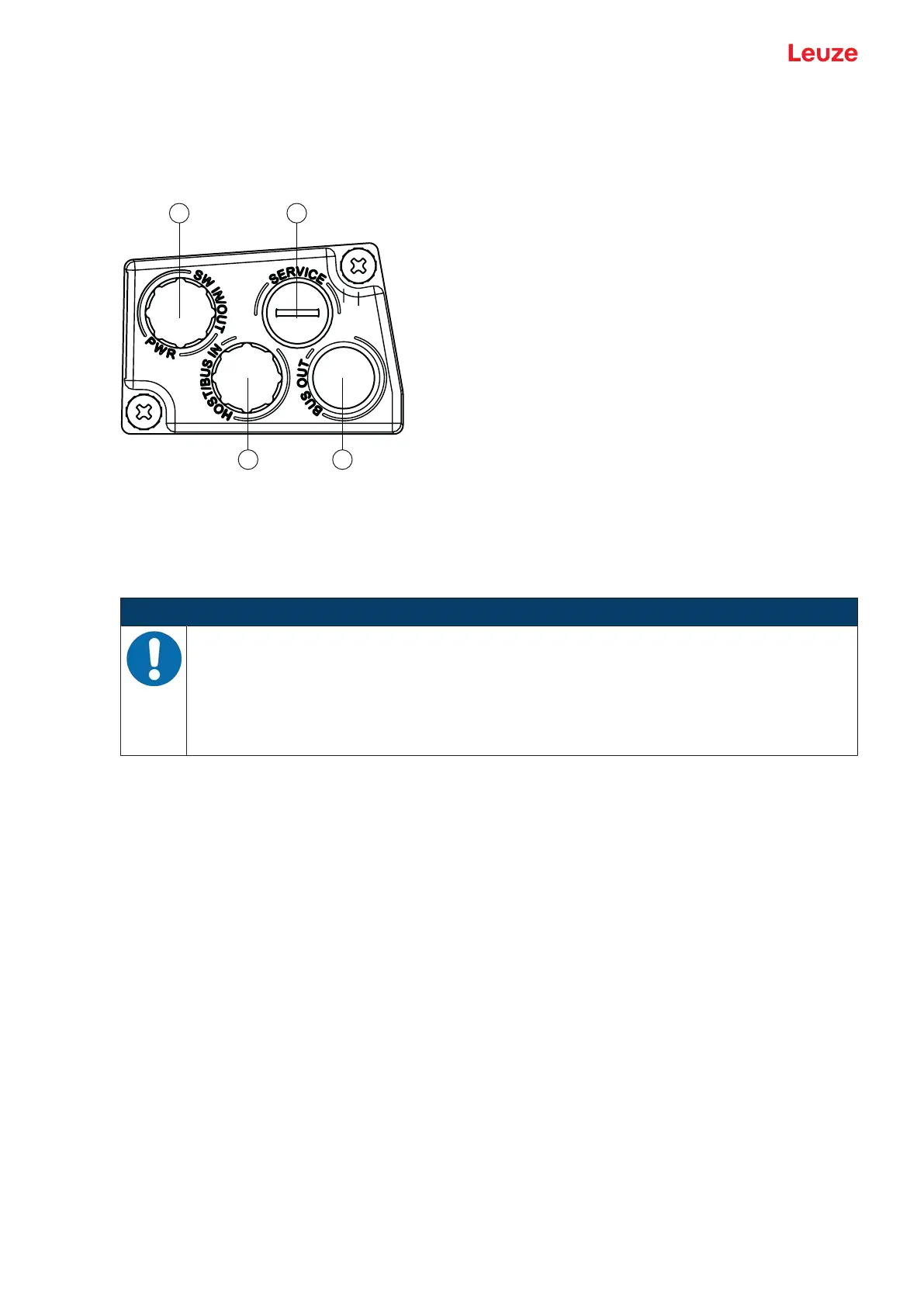

Fig.7.1: MS307 connection hood, connections
NOTICE
Shielding connection and functional earth connection!
Ä The shielding connection is done via the M12 connector housing.
Ä Ensure that the functional earth (FE) is connected correctly.
Unimpaired operation is only guaranteed when the functional earth is connected properly.
All electrical disturbances (EMC couplings) are discharged via the functional earth connec-
tion.
Ä Connect connection PWR/SWIN/OUT to the supply voltage or the switching inputs/outputs.
Ä Connect connection SSI (HOST/BUSIN) to your SSI interface.
7.3 MK307 connection hood with spring-cage terminals
With the MK307 connection hood, the BPS is connected directly and with no additional plug.
• The MK307 features cable bushings in which the shielding connection for the interface cable is also lo-
cated.
• The integrated parameter memory for the simple replacement of the BPS is located in the MK307.
• A Mini-Btype USB socket is used for service purposes.
