Electrical connection
Leuze electronic GmbH + Co. KG BPS 307i 46
NOTICE
No integrated parameter memory!
Ä No parameter memory is integrated in connection hood KB307.
Ä Remove the system plug (JST) at the end of the cable.
Ä Connect the connection cable to your SSI interface.
7.5 Pin assignment
7.5.1 PWR/SWIN/OUT (Power and switching input/output)
5-pin, M12 plug (A-coded) or terminal block for connecting to PWR/SWIN/OUT.
3
2
1
4
5
2
3
1
4
5
FE

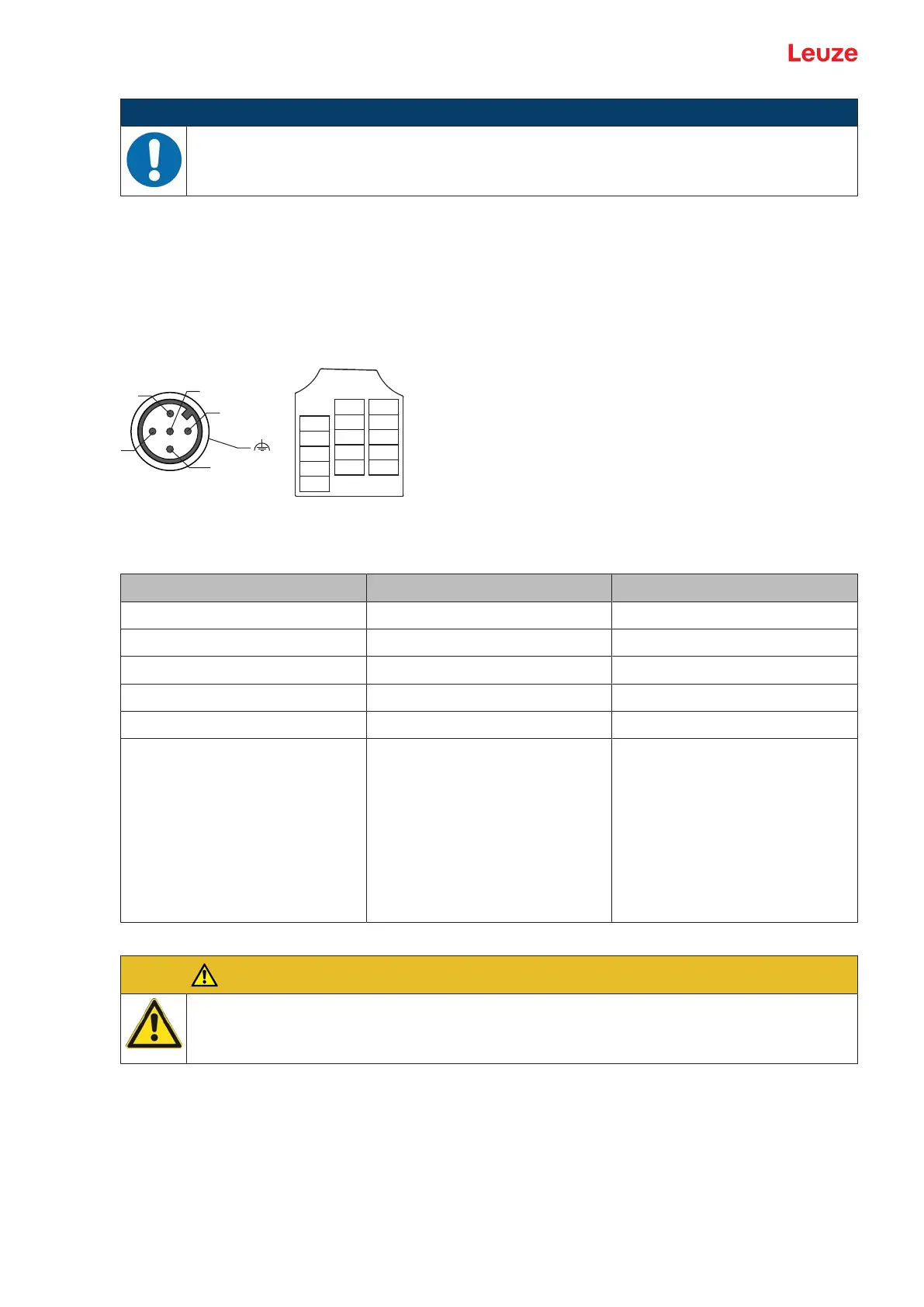

Fig.7.4: PWR/SW IN/OUT connection
Tab.7.1: PWR/SWIN/OUT pin assignment
Pin/terminal Designation Assignment
1 VIN +18…+30VDC supply voltage
2 SWIO1 Sw. input/output 1 (configurable)
3 GNDIN Negative supply voltage (0VDC)
4 SWIO2 Sw. input/output 2 (configurable)
5 FE Functional earth
Thread (M12 connector)
Cable gland
Functional earth Connection cable shield.
The shield of the connection cable
is on the thread of the M12 plug
or on the screw fitting of the cable
bushing.
The thread or the screw fitting is
part of the metallic housing. The
housing is at the potential of the
functional earth via pin5.
Connection cables: see chapter 14 "Order guide and accessories"
CAUTION
UL applications!
For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (Na-
tional Electric Code).
