Device description
Leuze electronic GmbH + Co. KG BPS 307i 14
3.2.3 KB307 connection hood with cable
With connection hood KB307, it is possible to directly connect the BPS.
• A Mini-Btype USB socket is used for service purposes and for configuration and diagnostic of the BPS.
• The length of the connection cable is 3m.
NOTICE
To connect, the system plugs (JST) at the end of the cable must be removed.
No parameter memory is integrated in connection hood KB307.
1
2
1 SERVICE: Mini-B USB socket (behind protective cap)
2 Connection cable

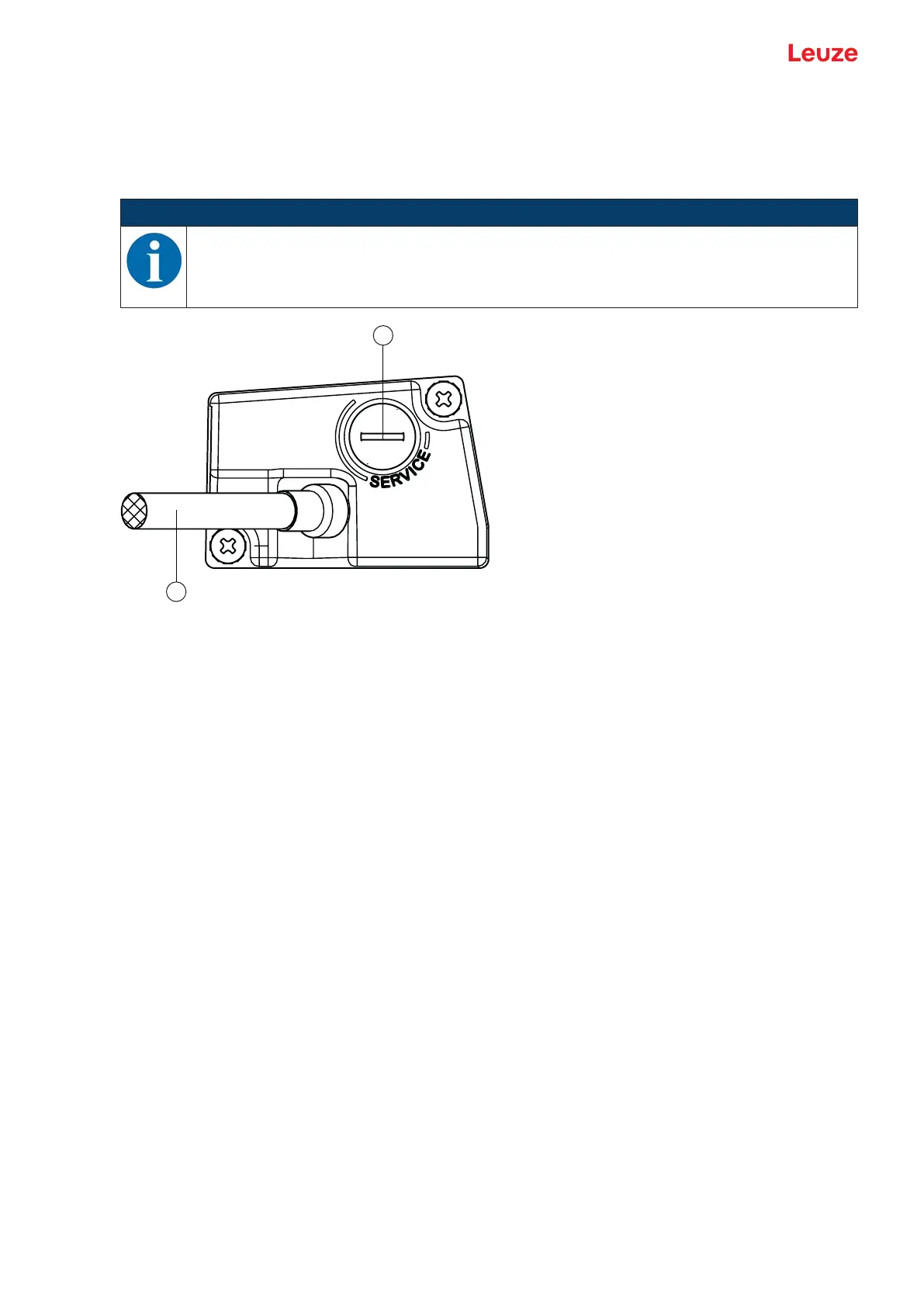

Fig.3.5: Connection hood KB307-3000
3.3 Display elements
The BPS is available optionally with display, two control buttons and LEDs or with only two LEDs as indica-
tors on the device housing.
3.3.1 LED indicators
The device housing features the following multicolor LED indicators as primary display element:
• PWR
• BUS
