Device description
Leuze electronic GmbH + Co. KG BPS 307i 19

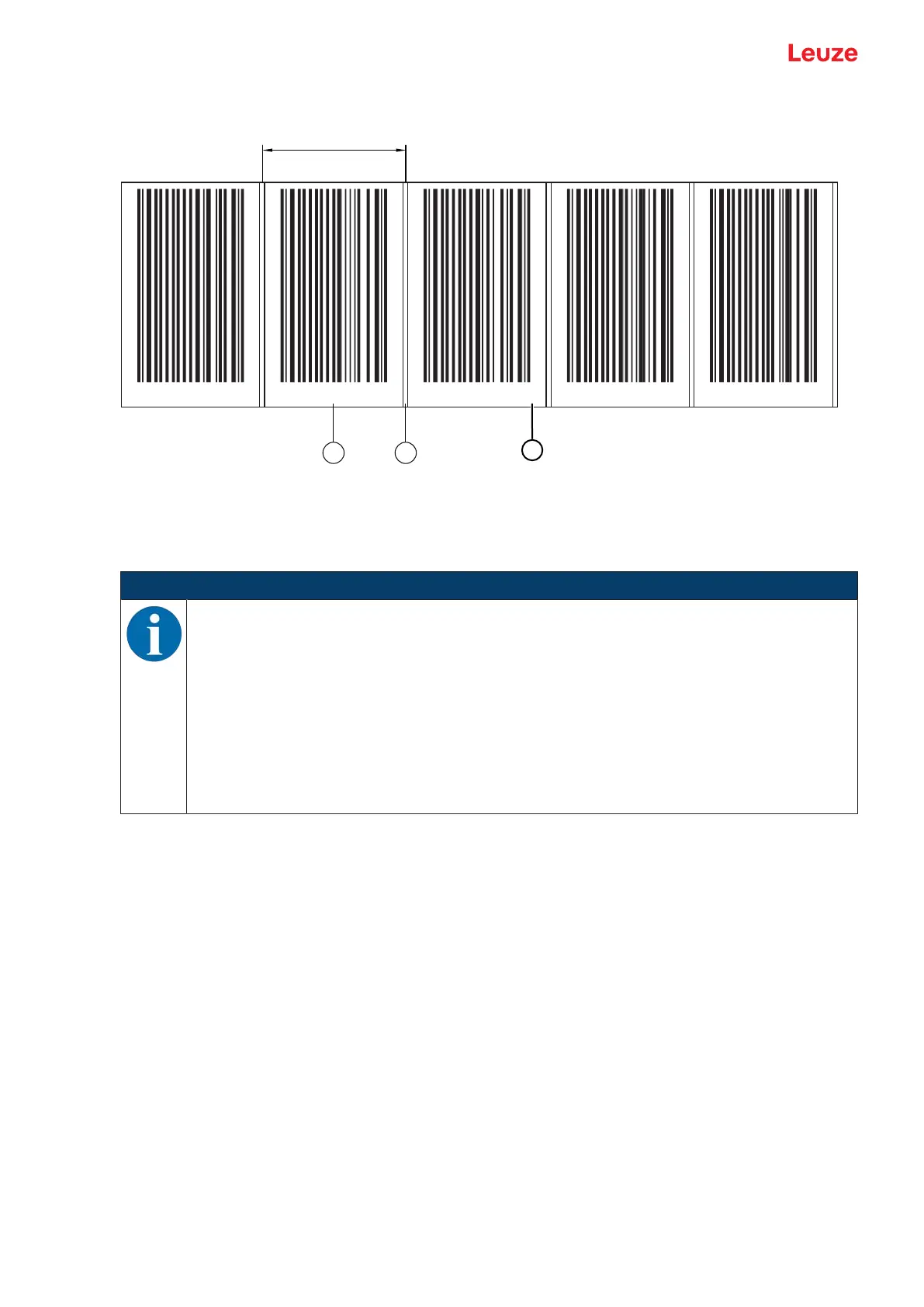

BCBG30… barcode tape with 30mm grid
000018 000021 000024 000027 000030
1 2
30
G30Leuze G30Leuze G30Leuze G30Leuze G30Leuze
3
1 Position label with position value
2 Cut mark
3 G30 = designation in plain-text for 30mm grid
Fig.3.9: BCBG30… barcode tape with 30mm grid
NOTICE
Standard BCBG30… bar code tapes are available in various length increments in the following
heights:
- 47mm
- 25mm
Special BCBG30… bar code tapes are available in mm height increments between 20 and
140mm.
An entry wizard is available for special bar code tapes on the Leuze website under devices
BPS300 - Accessories tab. The entry wizard provides support when entering the individual
pieces of tape data and creates a query or order form with the correct part number and type
designation.
3.4.2 Control bar codes
With the help of control barcodes that are affixed on top of the barcode tape at appropriate positions, func-
tions in the BPS can be activated or deactivated, e.g., for changing various position values at switches.
Code type Code128 with character setB is used for the control barcode.
MVS label
Designation: BCBG40…MVS or BCBG30…MVS
The MVS label is a control barcode for the direction-independent switching of the position values from one
barcode tape to another in the middle of the control barcode label.
If, upon reaching the changeover position in the middle of the MVS label, the BPS does not detect the new
BCB section in the scanning beam, the position value of the first BCB section is still output after the middle
of the MVS label for half of the label width.
