Device description
Leuze electronic GmbH + Co. KG BPS 307i 20
000040 000044
1
2
G40Leuze G40Leuze G40Leuze
1 Control bar code
2 Deactivation of the position determination at the end of the MVS label

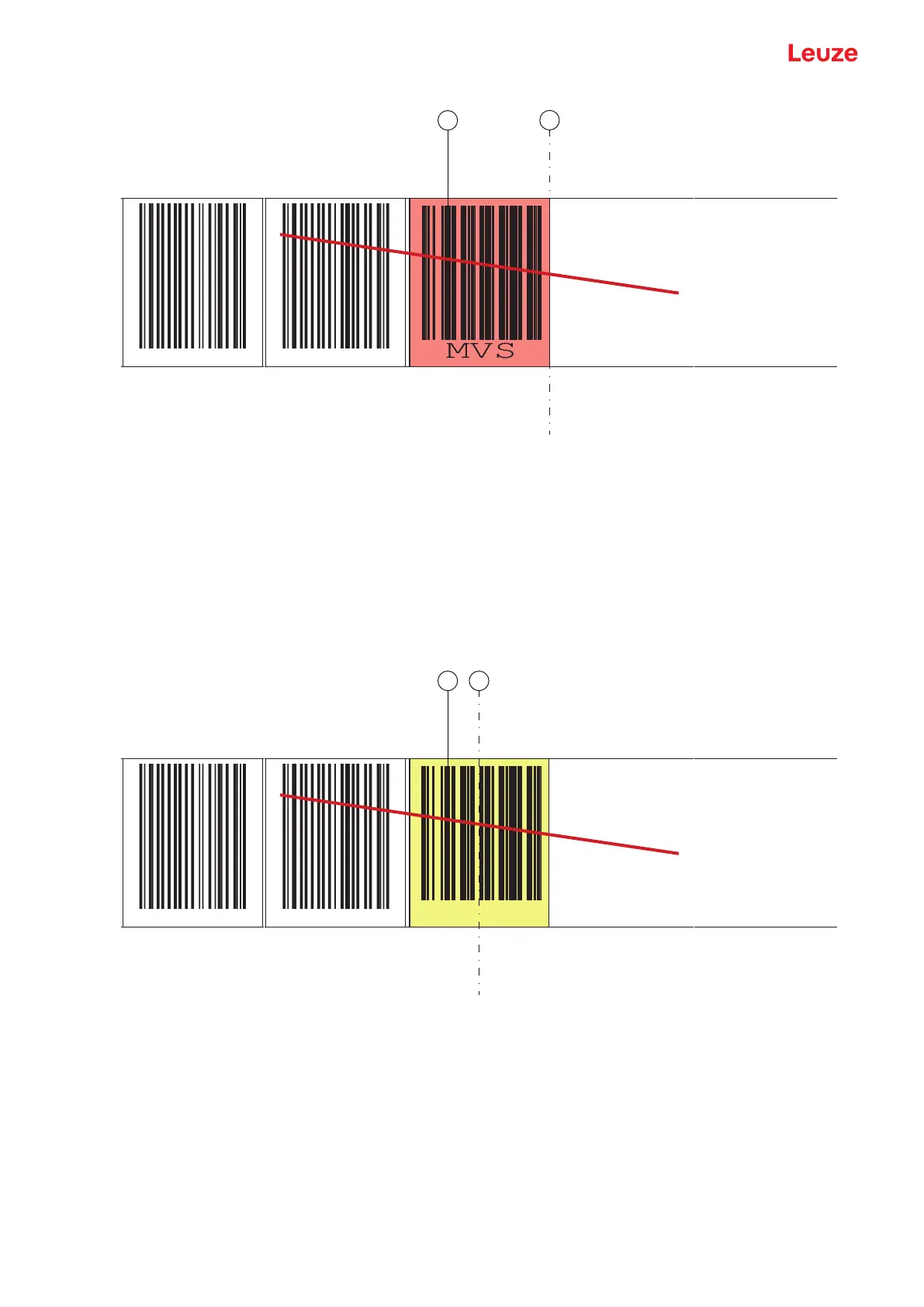

Fig.3.10: Arrangement of the MVS control bar code
MV0 label
Designation: BCBG40…MV0 or BCBG30…MV0
The MV0 label is a control barcode for the direction-independent switching of the position values from one
barcode tape to another in the middle of the control barcode label.
If, upon reaching the changeover position in the middle of the MV0 label, the BPS does not detect the new
BCB section in the scanning beam, no position is output after the middle of the MV0 label for.
000040 000044
1
2
G40Leuze G40Leuze G40Leuze
MV 0
1 Control bar code
2 Deactivation of position determination from the middle of the control bar code
Fig.3.11: Arrangement of the MV0 control bar code
Arrangement of the control barcodes
The control barcode is attached in such a way that it replaces one position barcode or seamlessly con-
nects two barcode tapes with different value ranges to one another.
A position label does not need to follow immediately after the MVS or MV0 control bar code. For an uninter-
rupted measurement value determination, a gap less than or equal to one label width (40 mm) may be
present between the control bar code and the subsequent position label.
