Starting up the device – Basic configuration
Leuze electronic GmbH + Co. KG BPS 307i 55
1 2
1 Slide switch S1
Factory setting: Gray encoding
2 Hexadecimal rotary switch S2
Factory setting: switch position 0, i.e., configuration via webConfig tool

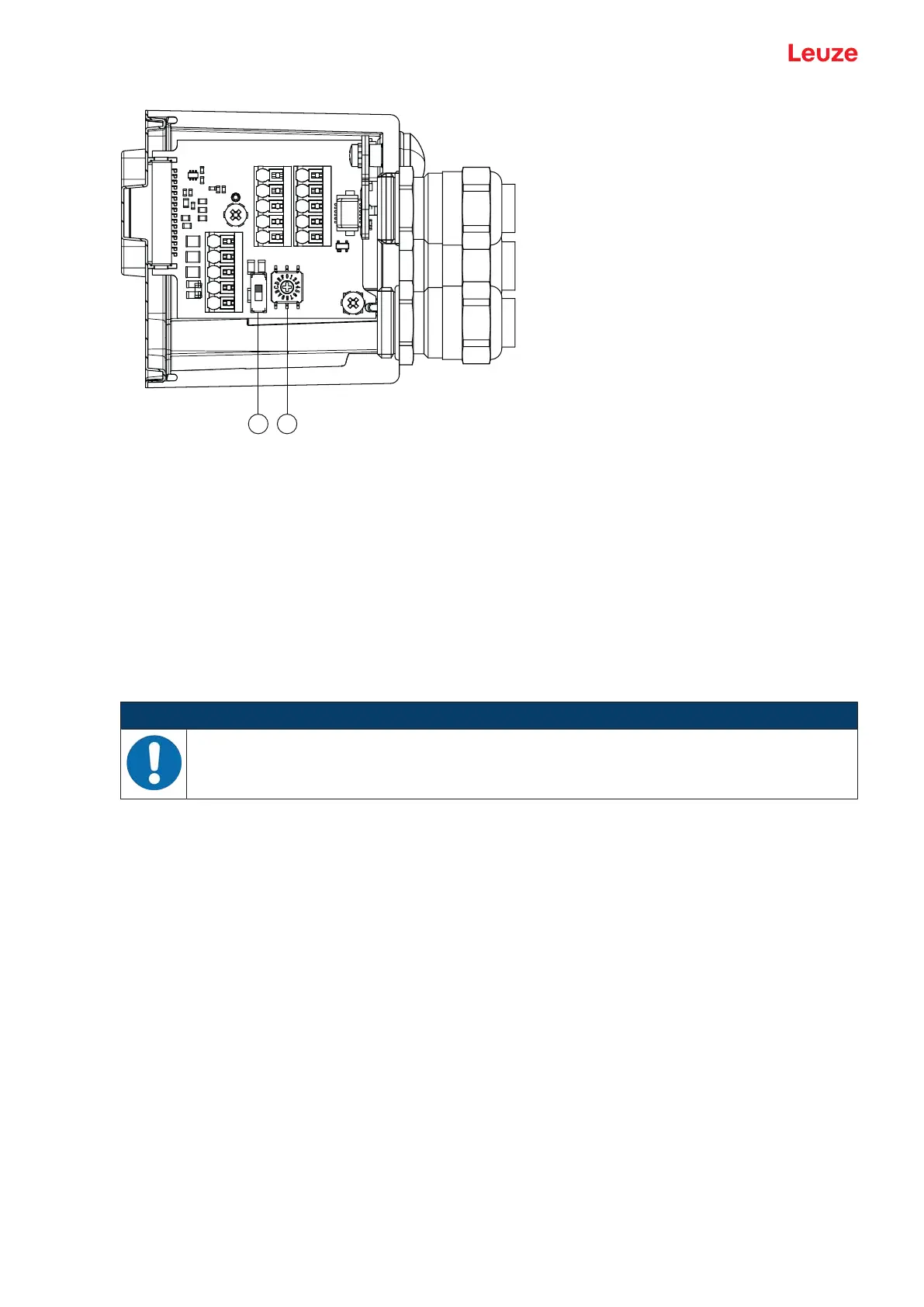

Fig.8.3: Operational controls of connection hood MK307
Slide switch S1
Change the measurement value encoding
• S1 up: Gray encoding
• S1 down: binary encoding
Rotary switch S2
NOTICE
Hexadecimal rotary switch S2 for setting the resolution and speed monitoring!
Ä Set the resolution of the position measurement and speed monitoring via rotary switch S2.
