LEYBOLD MAG Series User Manual

GA05141_0702 - 09/2004
39
Installation

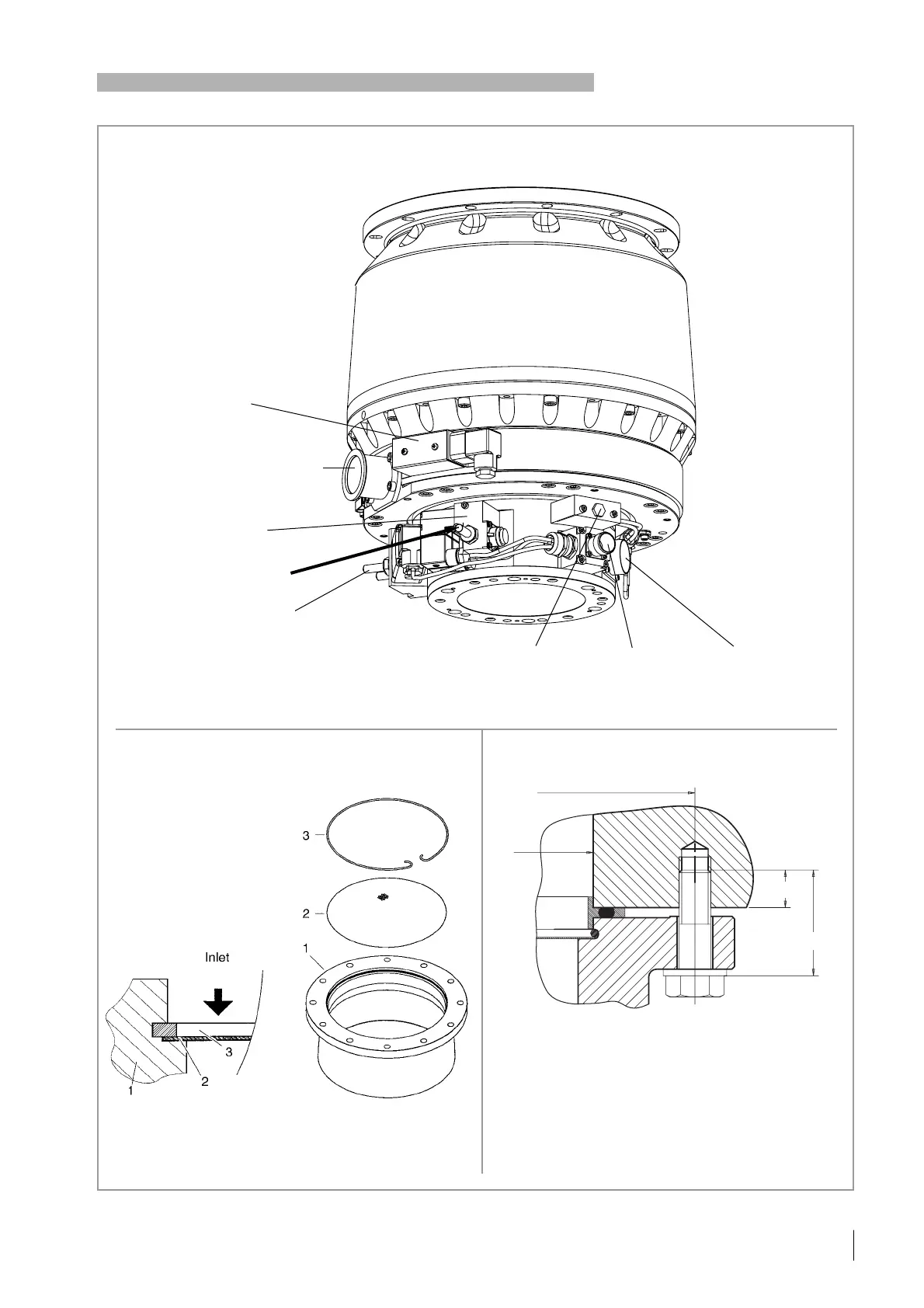

Fig. 25 Connection elements, installing the splinter guard and fixing the intake flange for the MAG W 3200 CT with DN 320 ISO-F flange
Forevacuum flange
Purge gas valve
Purge gas in
High-vacuum flange
DRIVE/BEARING
connection
PK
connection
TMS
connection
Heater band
Cooling water
connection
10 bolts M12 x 40
Installation torque per bolt 45
+5
Nm
Bolt quality:12.9 according to EN ISO 898-1
with coating
0,2% yield strength > 1080 N/mm
2
MAG W 3200 CT
1 Housing
2 Splinter guard
3 Ring
395 mm
318 mm
14 mm
40 mm
