106 Indoor Unit
Disassembly of the parts

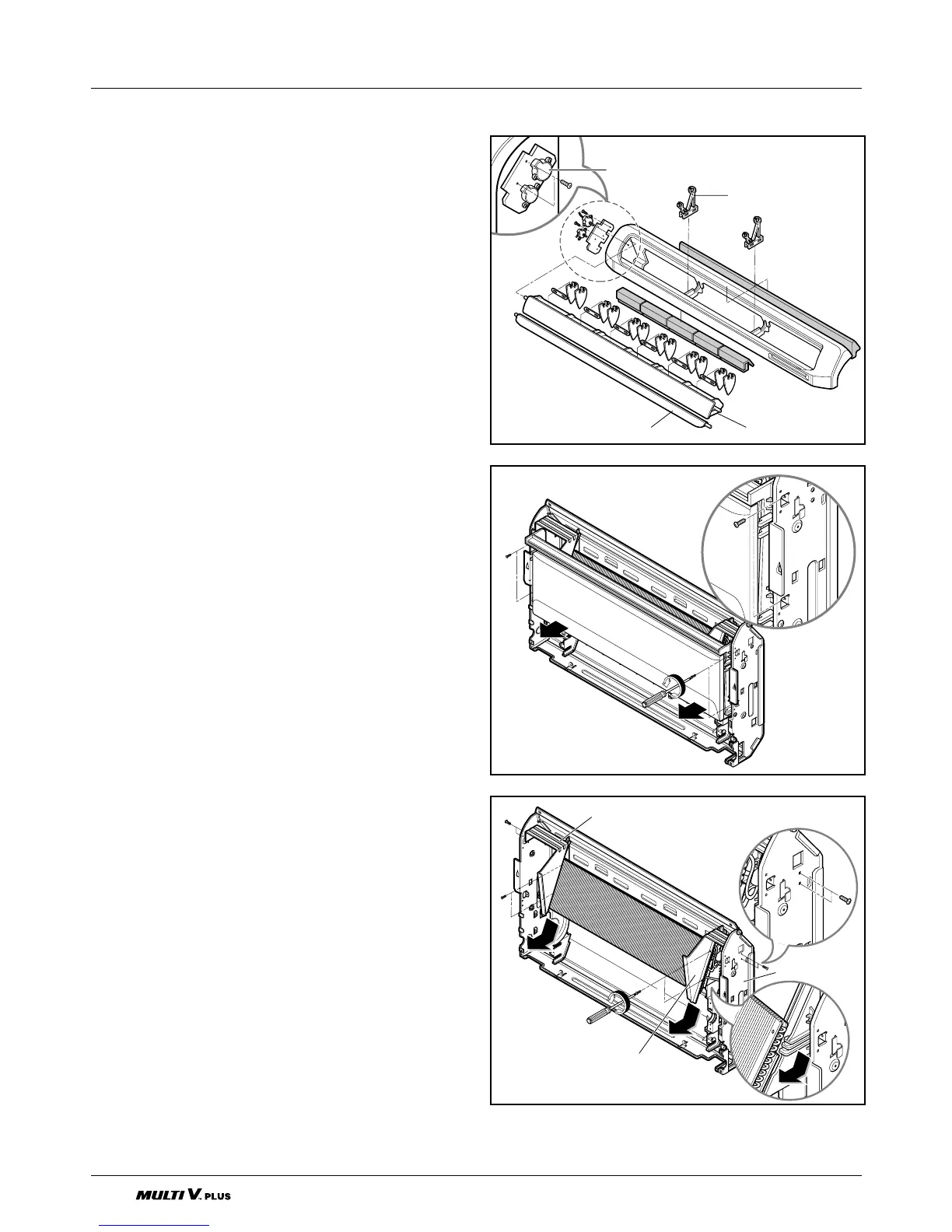

9. Remove the vane-upper, vane-lower and step
motor.
• Remove 2 screws securing the step motor
assembly and pull it out from the vanes care-
fully.
• Unhook the vanes from the vane supporter
and remove the upper vane and lower vane
by pulling the center of vanes with care.
10. Remove the drain pan assembly.
• Remove the both side of screws. (4 pieces)
• Pull out the drain pan assembly.
• Be careful not to harm to the EPS packing of
drain pan and the tubings of evaporator.
11. Remove the evaporator.
• Remove the screws of both sides securing
the EVA barrier-R/L on the side cabinet.
• Remove the screws which fasten the barrier
on the evaporator and take out the barrier
assembly.
• Remove the evaporator assembly by sliding
toward arrow mark. (As shown in figure)
To Next Page
