Service Manual 137

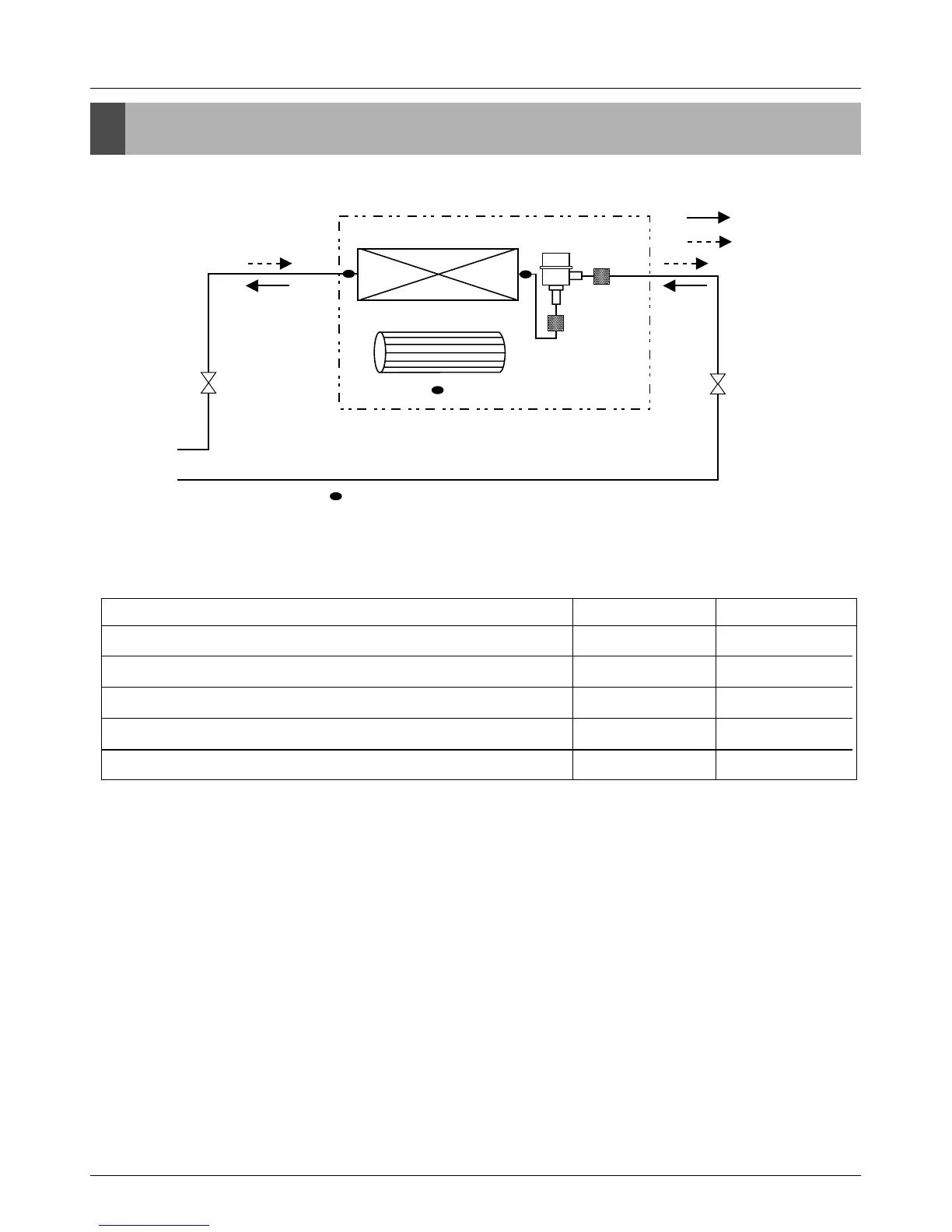

Piping Diagrams

6. Piping Diagrams

Heat Exchanger

C.F.F

lndoor unit

LEV

:Heating

:Cooling

Filter

: Thermistor

Refrigerant pipe connection port diameter

*(Color):R(Mirror), M(Metal), B(Blue), D(Wood), W(White), C:Cherry

MODEL GAS LIQUID

LRNV076SU*0/LRNN076SU*0/LRNV072SU*0/LRNN072SU*0 Ø12.7(1/2) Ø6.35(1/4)

LRNV096SU*0/LRNN096SU*0/LRNV092SU*0/LRNN092SU*0 Ø12.7(1/2) Ø6.35(1/4)

LRNV126SU*0/LRNN126SU*0/LRNV122SU*0/LRNN122SU*0 Ø12.7(1/2) Ø6.35(1/4)

LRNV186S3*0/LRNN186S3*0/LRNV182S3*0/LRNN182S3*0 Ø12.7(1/2) Ø6.35(1/4)

LRNV246S3*0/LRNN246S3*0/LRNV242S3*0/LRNN242S3*0 Ø15.88(5/8) Ø9.52(3/8)

[unit: mm(inch)]
