174
Indoor Unit
Dimensional Dra
wings

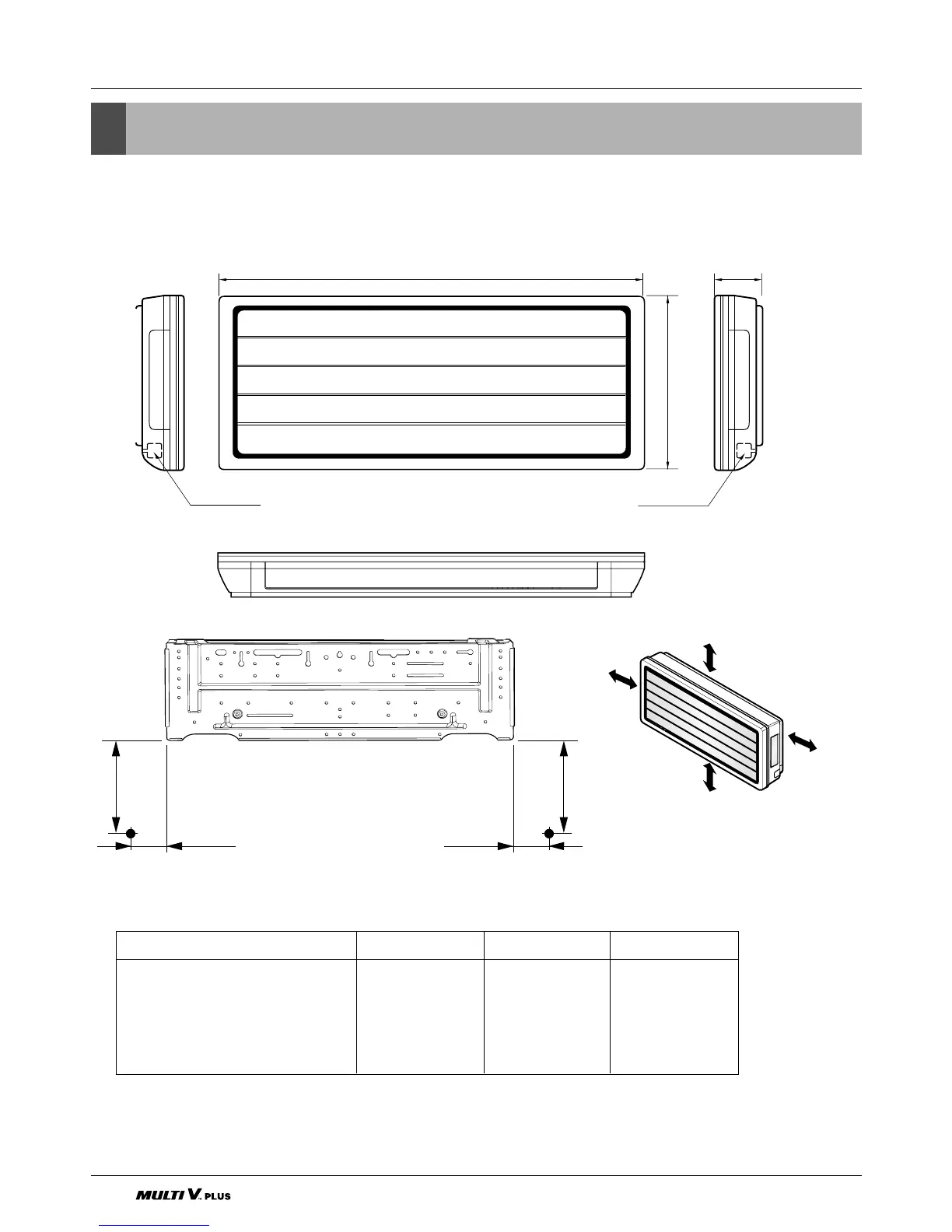

5. Dimensional Dra
wings
Model
LRNV126SV*0/LRNN126SV*0
LRNV122SV*0/LRNN122SV*0
LRNV186SV*0/LRNN186SV*0
LRNV182SV*0/LRNN182SV*0
W
928
H
522
D
147
LRNV126SV*0/LRNN126SV*0/LRNV122SV*0/LRNN122SV*0
LRNV186SV*0/LRNN186SV*0/LRNV182SV*0/LRNN182SV*0
H
W
D
Pipe Hole
Pipe Hole
240mm
60mm
240mm
60mm
More than 10cm
More than 50cm
More than 2m
More than
50cm
(Unit: mm)
173
175
