LG multi V PLUS

Service Manual 31
Piping Diarams

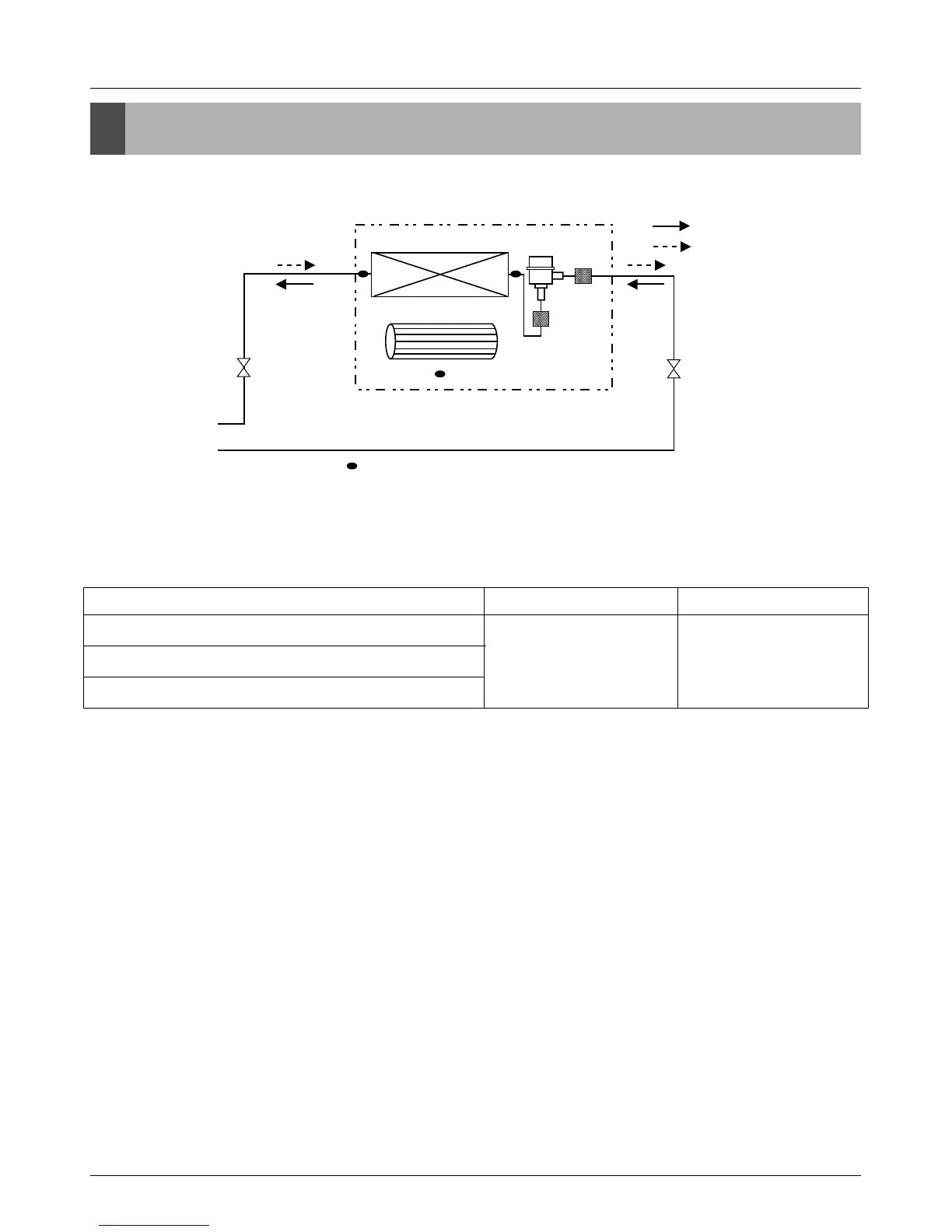

5. Piping Diagrams
Heat Exchanger
C . F.F.
lndoor unit
: Thermistor
LEV
Filter
Filter
:Heating
:Cooling
Refrigerant pipe connection port diameter
Model
LRNV076TCA(C)0/LRNN076TCA(C)0/LRNV072TCA(C)0/LRNN072TCA(C)0
LRNV096TCA(C)0/LRNN096TCA(C)0/LRNV092TCA(C)0/LRNN092TCA(C)0
LRNV126TCA(C)0/LRNN126TCA(C)0/LRNV122TCA(C)0/LRNN122TCA(C)0
Gas
12.7(1/2)
Liquid
6.35(1/4)
[unit: mm(inch)]
