Dimensional Drawings

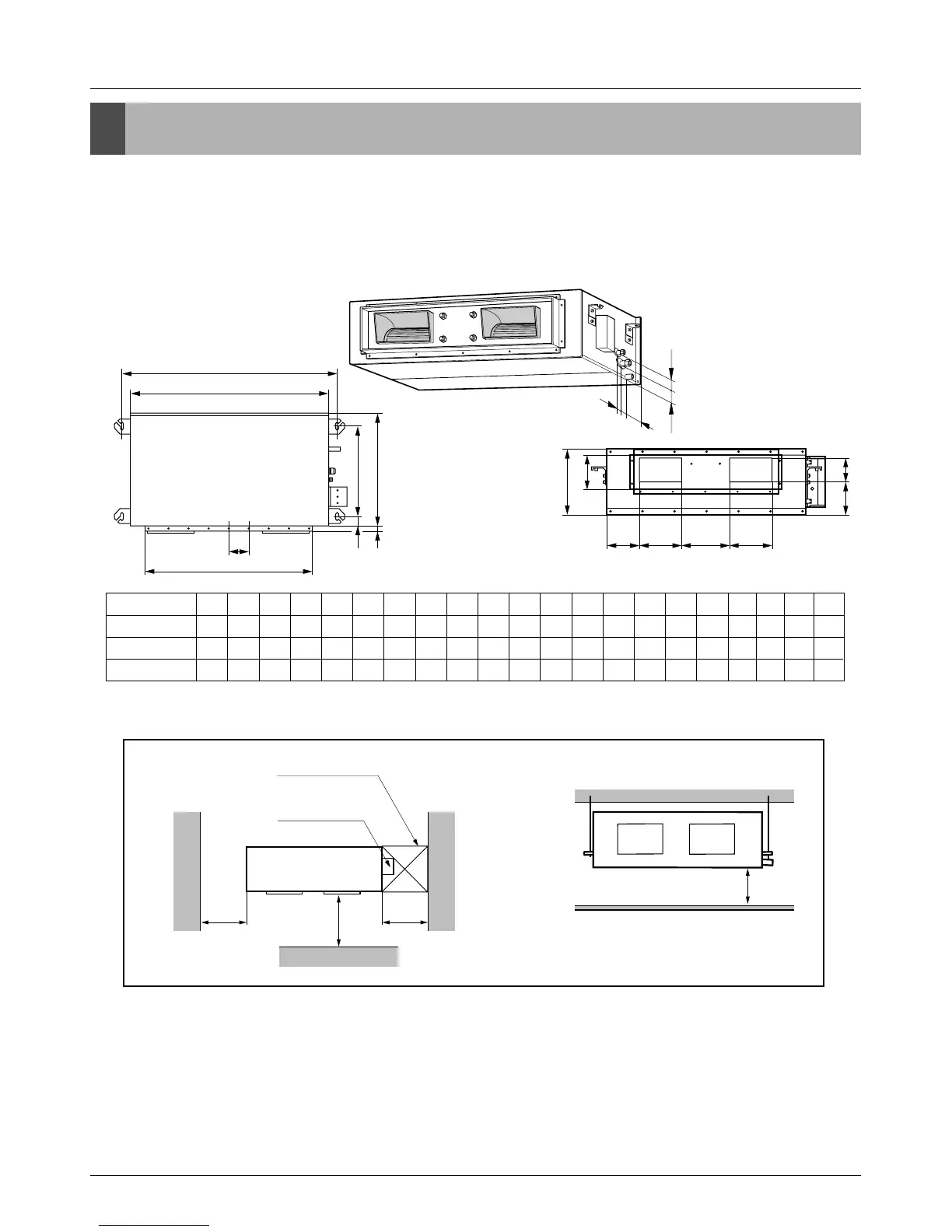

4. Dimensional Drawings
LRNV186BHA0/LRNN186BHA0/LRNV182BHA0/LRNN182BHA0
LRNV216BHA0/LRNN216BHA0/LRNV212BHA0/LRNN212BHA0
LRNV246BHA0/LRNN246BHA0/LRNV242BHA0/LRNN242BHA0
LRNV286BGA0/LRNN286BGA0/LRNV282BGA0/LRNN282BGA0
LRNV366BGA0/LRNN366BGA0/LRNV362BGA0/LRNN362BGA0
LRNV386BGA0/LRNN386BGA0/LRNV382BGA0/LRNN382BGA0
LRNV426BGA0/LRNN426BGA0/LRNV422BGA0/LRNN422BGA0
LRNV486BEA0/LRNN486BEA0/LRNV482BEA0/LRNN482BEA0
l
i
h
j
k
A
H
CD
EF
B
(G)
ab c d
K
J
fe
Top view
(unit: mm)
Front view
600600
Front
Inspection hole
※Suitable dimension "H" is necessary
to get a slope to drain as figure.
(600X600)
Control box
1000
H
C D E F (G) H J K a b c d e f h i j k l
355 45.5 450 30 87 750 163 260 61.5 243 212.3 243 110 130 52 66 81 30 158.5
355 45.5 450 30 87 830 186 298 229.5 243 232 243 116 160 53 59 81 19 158.5
570.5 54 680 30 120 1006 294 370 253.5 253 217 253 152 186 42 143 82 50 172
Model A B
18/21/24 BH 932 882
28/36/38/42 BG 1232 1182
48 BE 1292 1230
(Unit: mm)
