LG multi V PLUS Service Manual

Service Manual 51

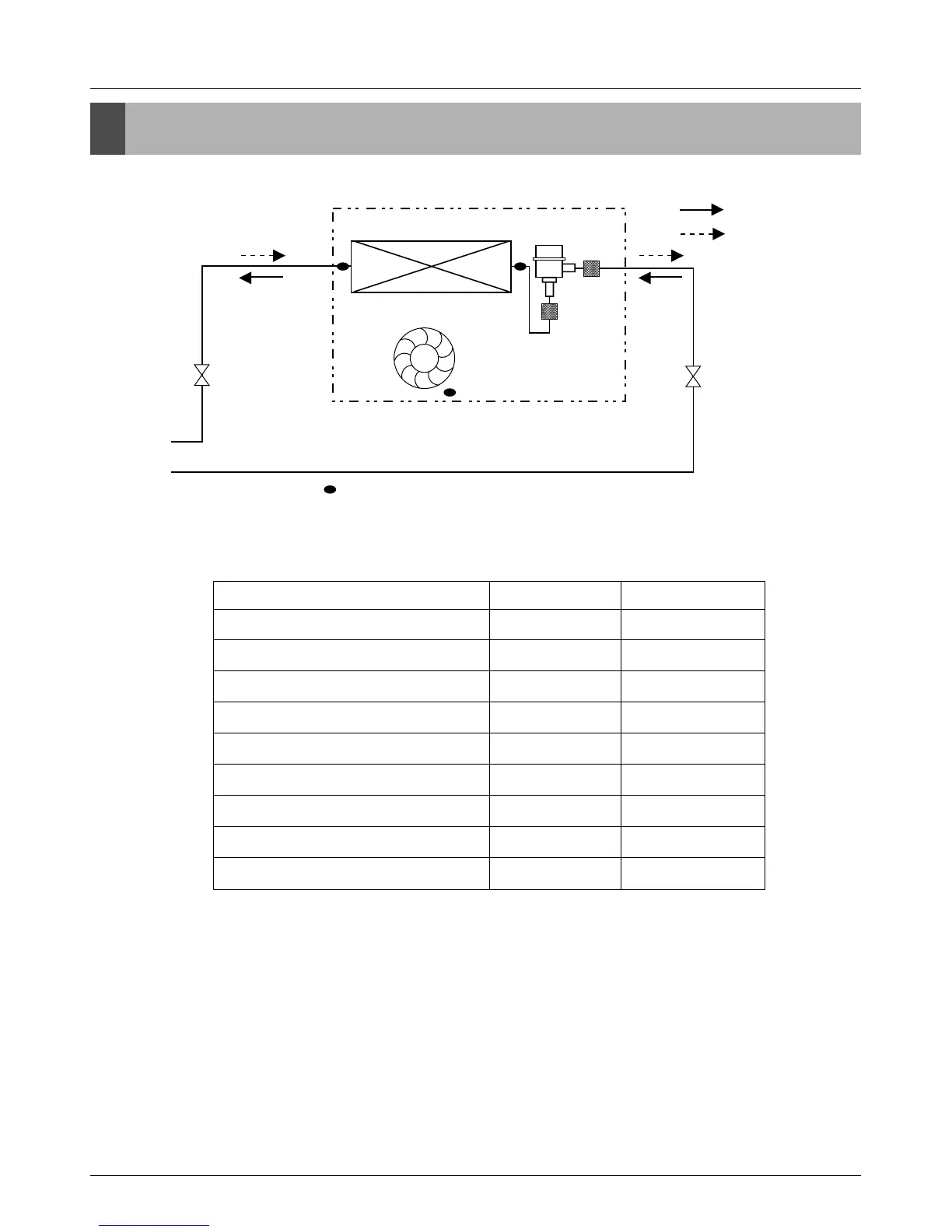

Piping Diagrams
5. Piping Diagrams
Heat Exchanger
Turbo Fan
lndoor unit
LEV
:Heating
:Cooling
Filter
Filter
: Thermistor
Refrigerant pipe connection port diameter
Model
LRNV126TEA(C)0/LRNN126TEA(C)0/LRNV122TEA(C)0/LRNN122TEA(C)0
LRNV186TEA(C)0/LRNN186TEA(C)0/LRNV182TEA(C)0/LRNN182TEA(C)0
LRNV216TDA(C)0/LRNN216TDA(C)0/LRNV212TDA(C)0/LRNN212TDA(C)0
LRNV246TDA(C)0/LRNN246TDA(C)0/LRNV242TDA(C)0/LRNN242TDA(C)0
LRNV286TDA(C)0/LRNN286TDA(C)0/LRNV282TDA(C)0/LRNN282TDA(C)0
LRNV366TDA(C)0/LRNN366TDA(C)0/LRNV362TDA(C)0/LRNN362TDA(C)0
LRNV386TDA(C)0/LRNN386TDA(C)0/LRNV382TDA(C)0/LRNN382TDA(C)0
LRNV426TDA(C)0/LRNN426TDA(C)0/LRNV422TDA(C)0/LRNN422TDA(C)0
LRNV486TDA(C)0/LRNN486TDA(C)0/LRNV482TDA(C)0/LRNN482TDA(C)0
Gas
Ø12.7(1/2)
Ø15.88(5/8)
Ø15.88(5/8)
Ø15.88(5/8)
Ø15.88(5/8)
Ø19.05(3/4)
Ø19.05(3/4)
Ø19.05(3/4)
Ø19.05(3/4)
Liquid
Ø6.35(1/4)
Ø9.52(3/8)
Ø9.52(3/8)
Ø9.52(3/8)
Ø9.52(3/8)
Ø9.52(3/8)
Ø9.52(3/8)
Ø9.52(3/8)
Ø9.52(3/8)
[unit: mm(inch)]
