LG multi V PLUS Service Manual

50 Indoor Unit

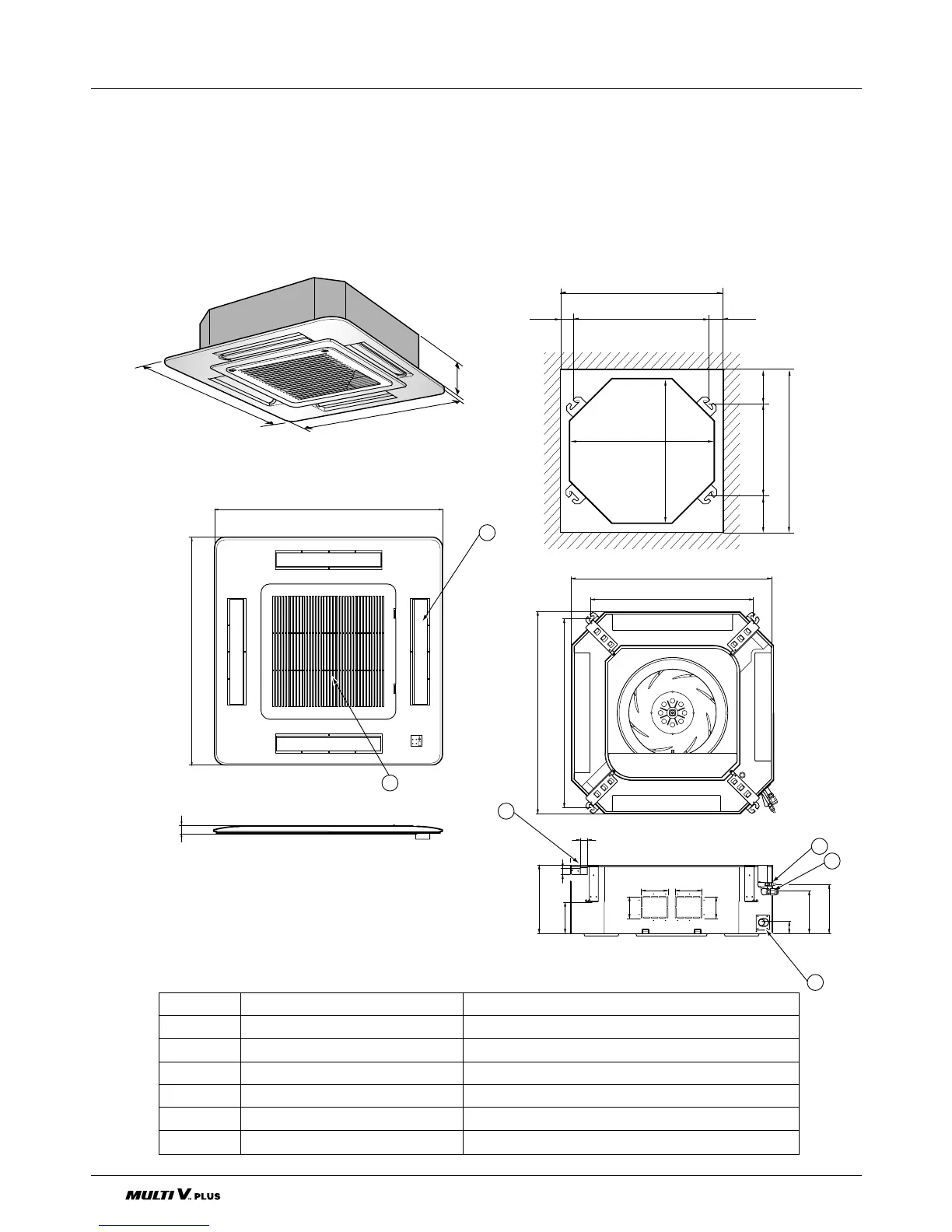

Dimensional Drawings
LRNV216TDA(C)0 / LRNN216TDA(C)0 / LRNV212TDA(C)0 / LRNN212TDA(C)0
LRNV246TDA(C)0 / LRNN246TDA(C)0 / LRNV242TDA(C)0 / LRNN242TDA(C)0
LRNV286TDA(C)0 / LRNN286TDA(C)0 / LRNV282TDA(C)0 / LRNN282TDA(C)0
LRNV366TDA(C)0 / LRNN366TDA(C)0 / LRNV362TDA(C)0 / LRNN362TDA(C)0
LRNV386TDA(C)0 / LRNN386TDA(C)0 / LRNV382TDA(C)0 / LRNN382TDA(C)0
LRNV426TDA(C)0 / LRNN426TDA(C)0 / LRNV422TDA(C)0 / LRNN422TDA(C)0
LRNV486TDA(C)0 / LRNN486TDA(C)0 / LRNV482TDA(C)0 / LRNN482TDA(C)0
290
950
950
290
210.5
180
52
140
40
110
30
90 90
110
30
840
785
840
672
840 Unit size
840 Unit size
672 (Hanging bolt)
101.5101.5
875 (Ceiling opening)
875 (Ceiling opening)
785(Hanging bolt)
45
45
Unit:mm
4
1
2
3
950
950
5
6
Number Name Descripition
1 Liquid pipe connection
Unit Size(21k24k, 28k):Ø9.52, (36k, 38k, 42k, 48k):Ø9.52
2 Gas pipe connection Unit Size(21k, 24k, 28k): Ø 15.88, (36k, 38k, 42k, 48k): Ø 19.05
3 Drain pipe connection
4 Power supply connection
5 Air discharge grill
6 Air suction grill
(unit : mm)
