LG multi V PLUS Service Manual

70 Indoor Unit

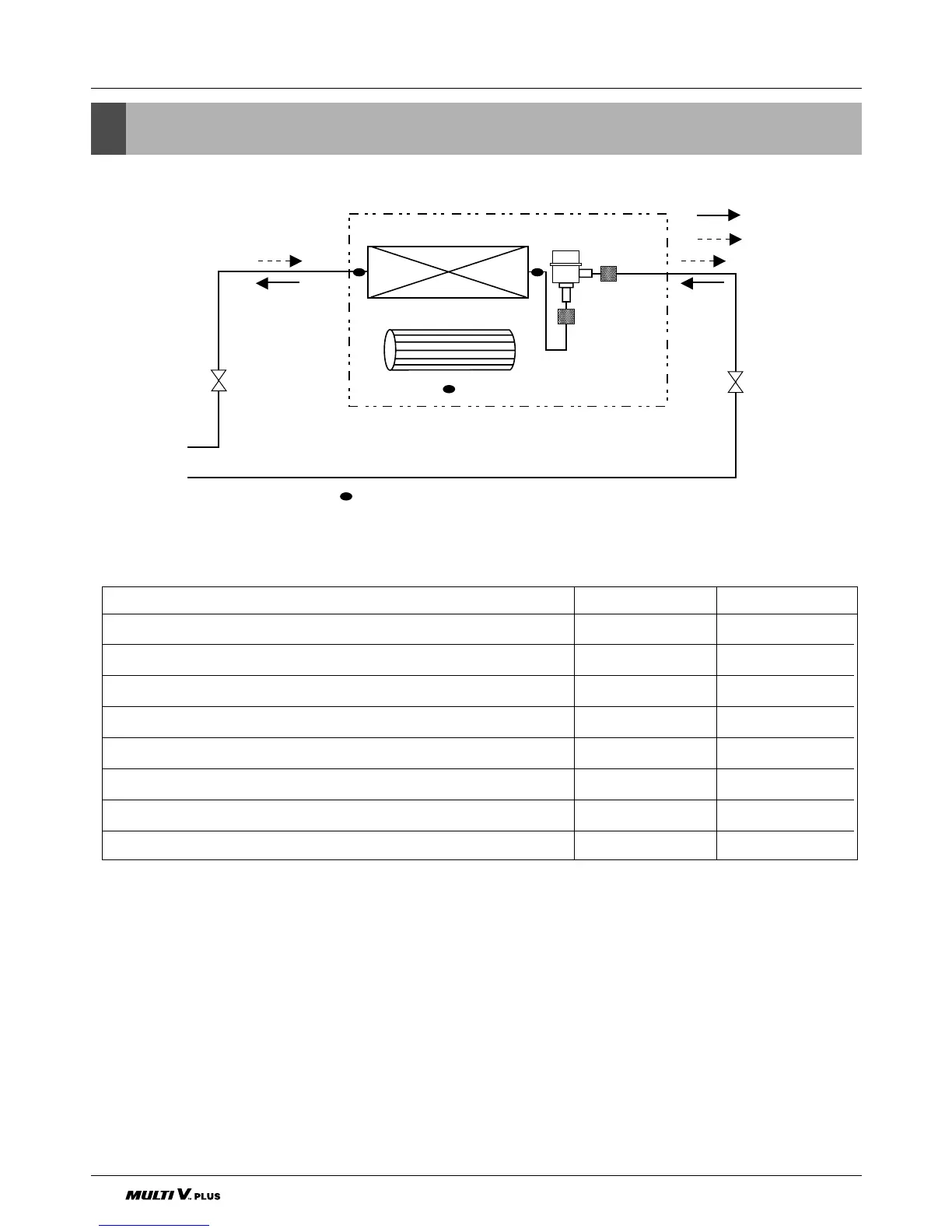

5. Piping Diagrams
Piping Diagrams
Heat Exchanger
Sirocco Fan
lndoor unit
LEV
:Heating
:Cooling
Filter
Filter
: Thermistor
Refrigerant pipe connection port diameter
MODEL GAS LIQUID
LRNV186BHA0/LRNN186BHA0/LRNV182BHA0/LRNN182BHA0 Ø15.88(5/8) Ø9.52(3/8)
LRNV216BHA0/LRNN216BHA0/LRNV212BHA0/LRNN212BHA0 Ø15.88(5/8) Ø9.52(3/8)
LRNV246BHA0/LRNN246BHA0/LRNV242BHA0/LRNN242BHA0 Ø15.88(5/8) Ø9.52(3/8)
LRNV286BGA0/LRNN286BGA0/LRNV282BGA0/LRNN282BGA0 Ø15.88(5/8) Ø9.52(3/8)
LRNV366BGA0/LRNN366BGA0/LRNV362BGA0/LRNN362BGA0 Ø19.05(3/4) Ø9.52(3/8)
LRNV386BGA0/LRNN386BGA0/LRNV382BGA0/LRNN382BGA0 Ø19.05(3/4) Ø9.52(3/8)
LRNV426BGA0/LRNN426BGA0/LRNV422BGA0/LRNN422BGA0 Ø19.05(3/4) Ø9.52(3/8)
LRNV486BEA0/LRNN486BEA0/LRNV482BEA0/LRNN482BEA0 Ø19.05(3/4) Ø9.52(3/8)
[unit: mm(inch)]
