LG multi V PLUS Service Manual

Service Manual 119

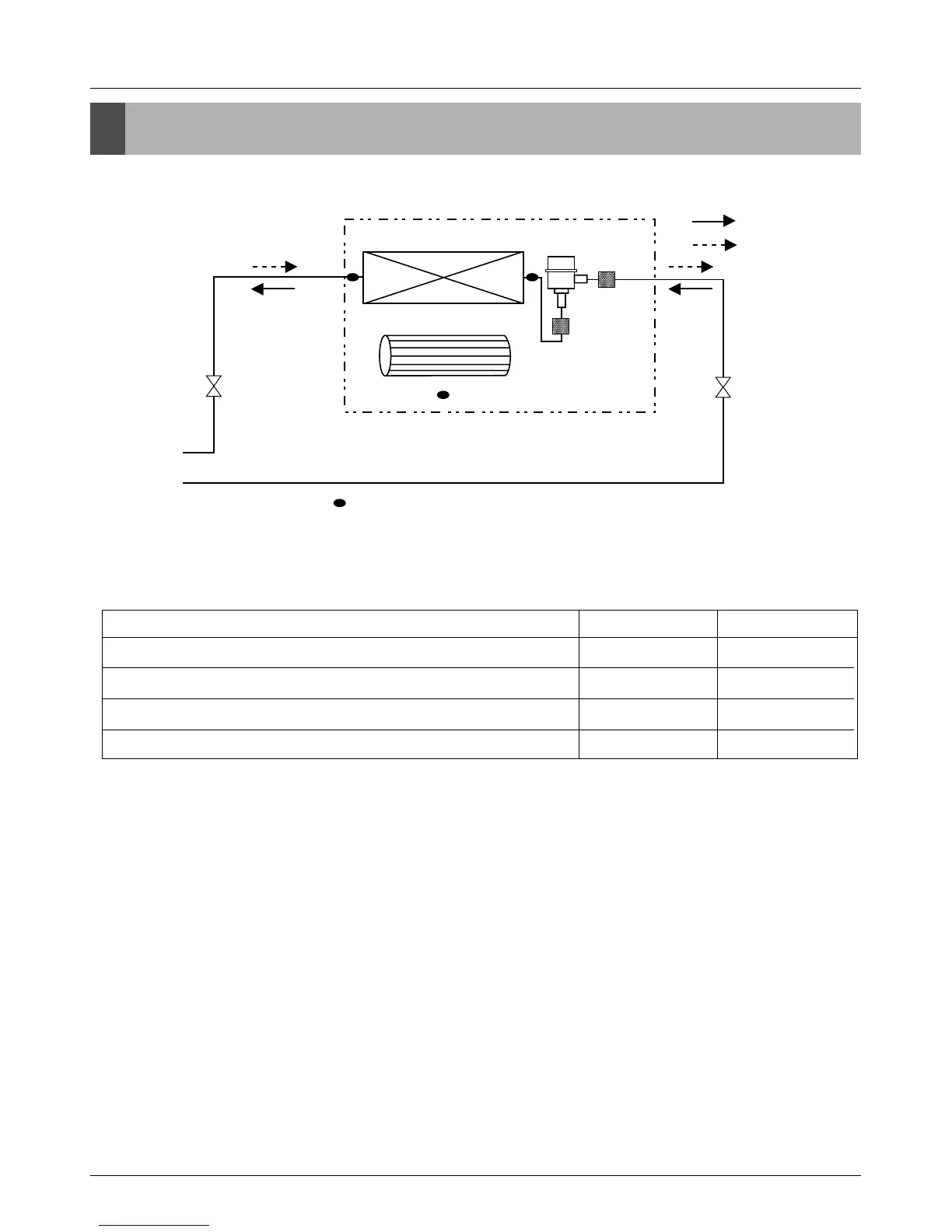

Piping Diagrams
5. Piping Diagrams
Heat Exchanger
C.F.F
lndoor unit
LEV
:Heating
:Cooling
Filter
Filter
: Thermistor
Refrigerant pipe connection port diameter
MODEL GAS LIQUID
LRNV076SRA
(L) 0/LRNN076SRA (L) 0/LRNV072SRA (L) 0/LRNN072SRA (L) 0 Ø12.7(1/2) Ø6.35(1/4)
LRNV096SRA
(L) 0/LRNN096SRA (L)
0/LRNV092SRA (L) 0/LRNN092SRA
(L) 0 Ø12.7(1/2) Ø6.35(1/4)
LRNV126SRA (L) 0/LRNN126SRA (L) 0/LRNV122SRA (L) 0/LRNN122SRA (L) 0 Ø12.7(1/2) Ø6.35(1/4)
LRNV186STA
(L) 0/LRNN186STA (L) 0/LRNV182STA (L) 0/LRNN182STA (L) 0 Ø15.88(5/8) Ø9.52(3/8)
[unit: mm(inch)]
