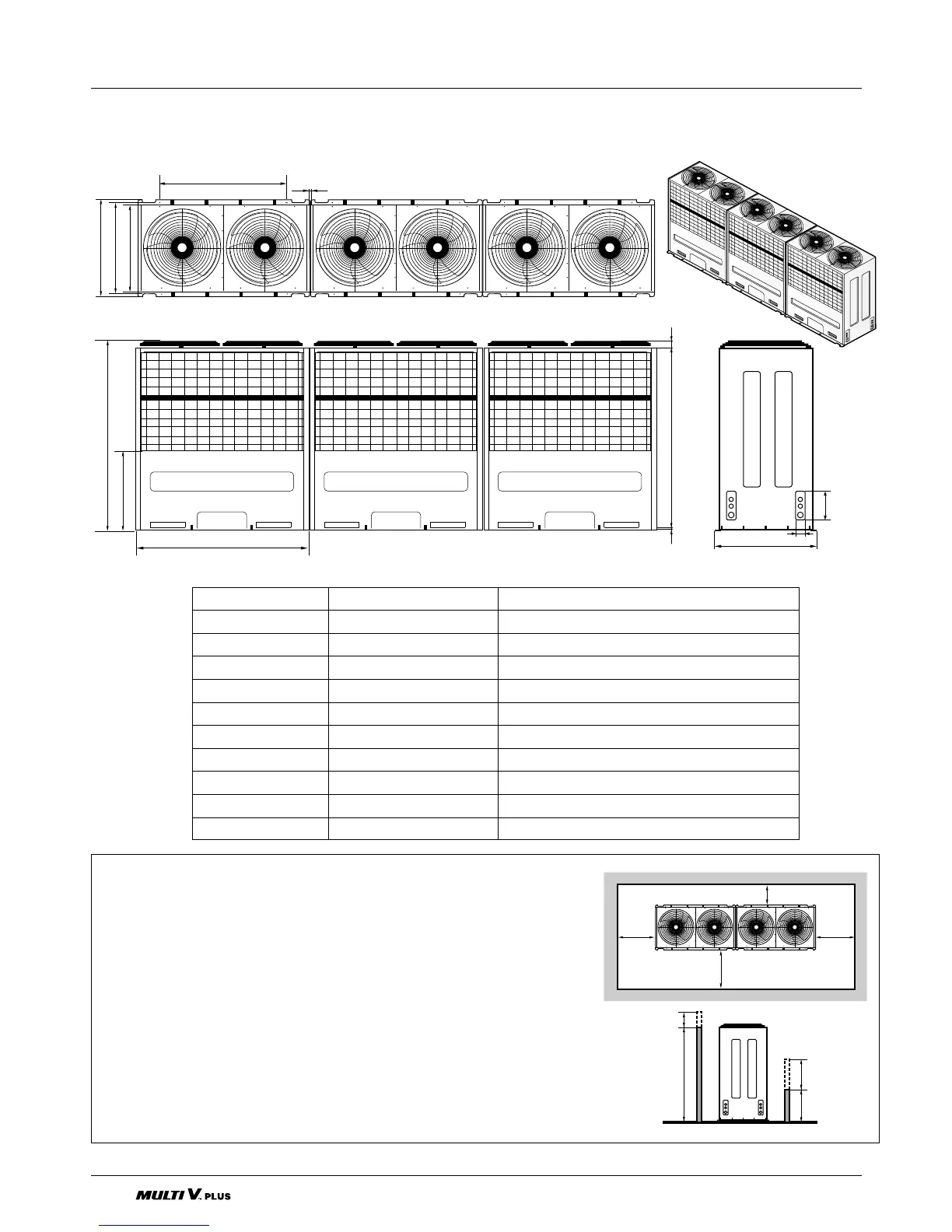

W mm(inch) 1280(50.4)
H mm(inch) 1555(61.2)
D mm(inch) 730(28.7)
L1 mm(inch) 1479(58.3)
L2 mm(inch) 700(27.6)
L3 mm(inch) 690(27.2)
L4 mm(inch) 900(35.4)
L5 mm(inch) 10(0.4)
L6 mm(inch) 705(27.8)
L7 mm(inch) 48(1.9)
L8 mm(inch) 28(1.1)
Notes:
1. High of walls in case of pattern1:
Front side:1500mm, Suction side:500mm
2. If the above wall heights are exceeded then h1/2 and h2/2 should be
added to the front and suction side service spaces respectively as
shown in the following figure.
3. When installing the units, the most appropriate pattern should be
selected from those shown.
In order to obtain the best fit in the space available always bear in
mind the need to leave enough room for a person to pass between
units and wall and for the air to circulate freely. Your layout should be
taken account of the possibility of short circuits.
4. The Units should be installed to leave sufficient space at the front for
the on site refrigerant piping work to be carried out comfortably.
