Operation 4
Standard equipment
CAUTION
Attachments affect the load capacity and stability of
the forklift truck.
Attachments which are not supplied with the forklift
truck should only be used when the authorised dea-
ler has checked that safe operation is ensured by
the allocation in terms of load capacity and stability.

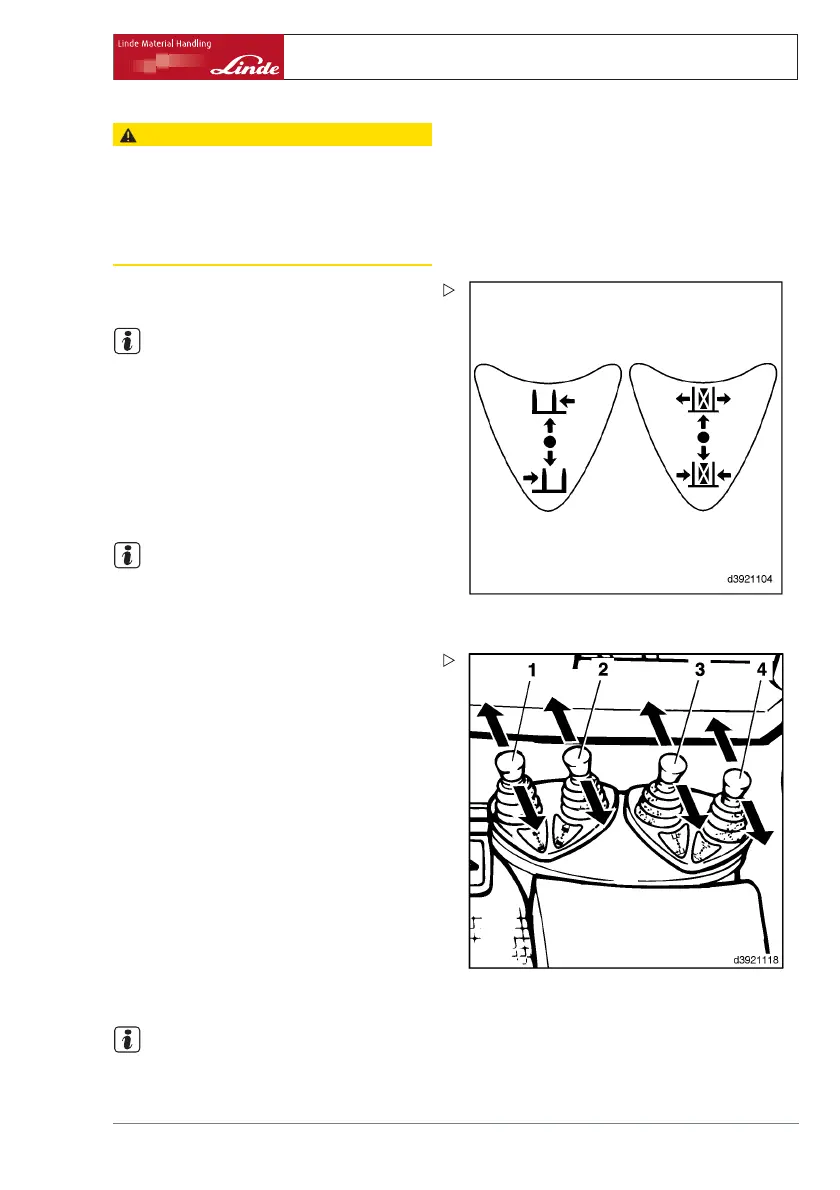

¾ Take note of the switching symbols with
arrows.
NOTE
For every attachment, a plate stating the load
capacity of the truck must be affixed beside
the load diagram in the top left of the overhead
guard, and a symbol label for the relevant at-
tachment must be affixed behind the actuating
lever.
Operating the sideshift
NOTE
In order to prevent damage, do not activate
the sideshift when the fork arms are on the
ground.
¾ Push actuating lever (3) forwards.
Sideshift moves to the left.
¾ Pull actuating lever (3) backwards.
Sideshift moves to the right.
Operating the clamp
¾ Release the actuating lever (4) by pressing
down on the button.
¾ Push actuating lever (4) forwards.
Clamp opens.
¾ Pull actuating lever (4) backwards.
Clamp closes.
Operating the fork positioner
NOTE
In order to prevent damage, do not activate the
fork positioner with a load, or with the fork arms
Operating Instructions – 393 807 1001 EN – 08/2008 55
