34 CHAPTER 4: ELECTRICS
TRYTON 107/112
4.2.5. Programmable controller (PLC)
The programmable controller (PLC) continuously scrutinizes all data from the remote control, probes,
switches, cells, interface, etc.
The program loaded into the PLC manages this information. It then distributes the interface signals, pilots
the motors as well as the pneumatic valves and displays appropriate messages on the remote control.
In the case of a power cut, the data contained in the programmable automaton are saved using an
emergency battery. The CR2032 watch battery must be replaced as soon as possible by a battery of the
same type with the barfeed power on.

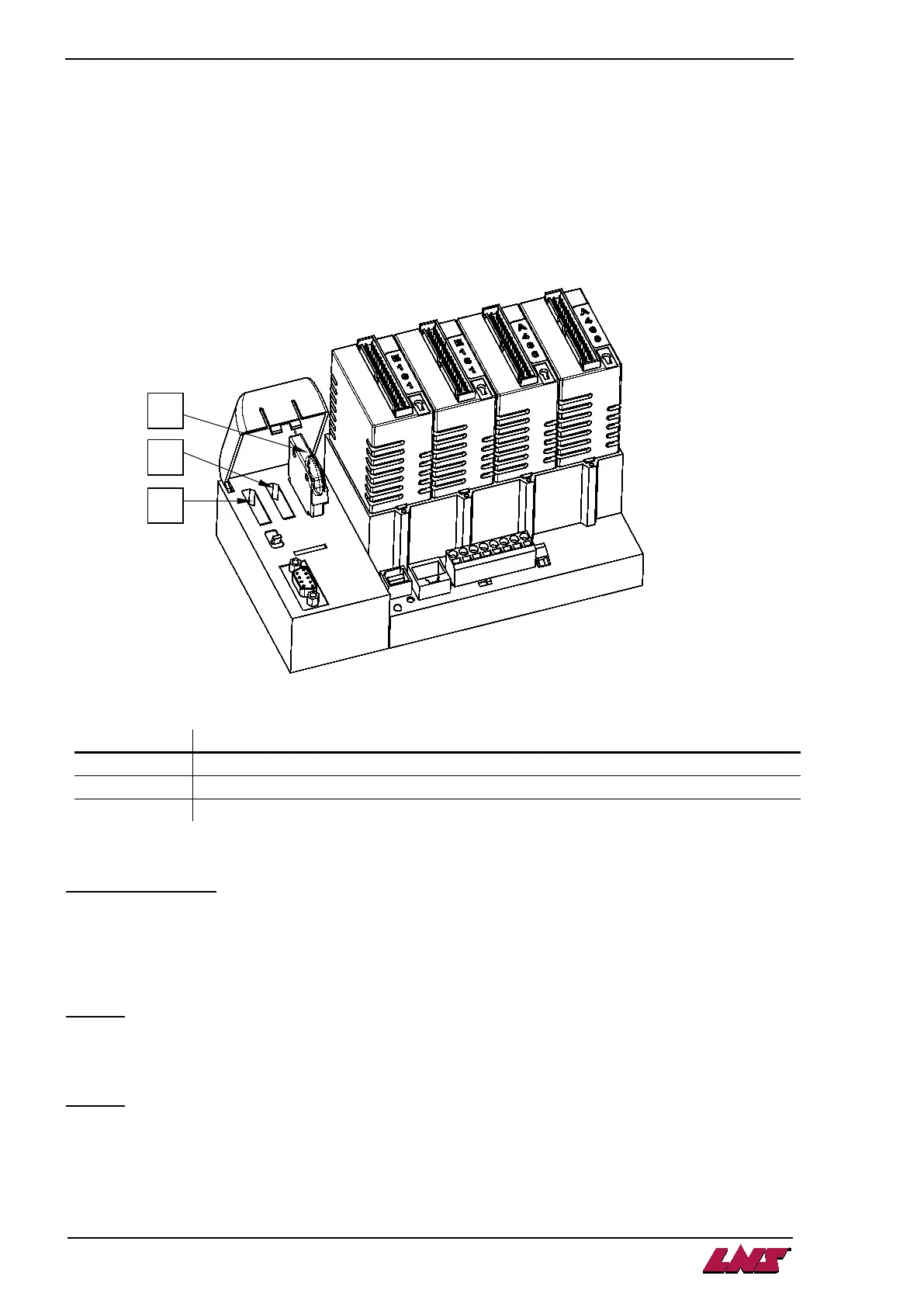

Designation
Description
A
Information/Battery module CR2032 watch battery
M1
Slot for Parts Library
M2 Slot for memory expansion
Information module:
Batt: The backup battery in the information module needs replaced.
Run: The PLC is in RUN mode. This is the standard mode.
Halt: The PLC is in HALT mode. Contact your LNS SA dealer.
Error: The PLC is in a failure mode. Contact your LNS SA dealer.
M1 slot:
This slot is used by a flash (blue) card as memory expansion for the Parts Library. Do not remove the flash
card unless instructed by LNS SA. (Not used)
M2 slot:
This slot is used by a flash (blue) card as memory expansion. Do not remove the flash card unless instructed
by LNS SA. (Not used)
A
M2
M1
