LNS TRYTON 107 - 1. PNEUMATICAL EQUIPMENT

48 CHAPTER 4: ELECTRICS
TRYTON 107/112
0 1 2 3 4 5 6 7 8 9 10

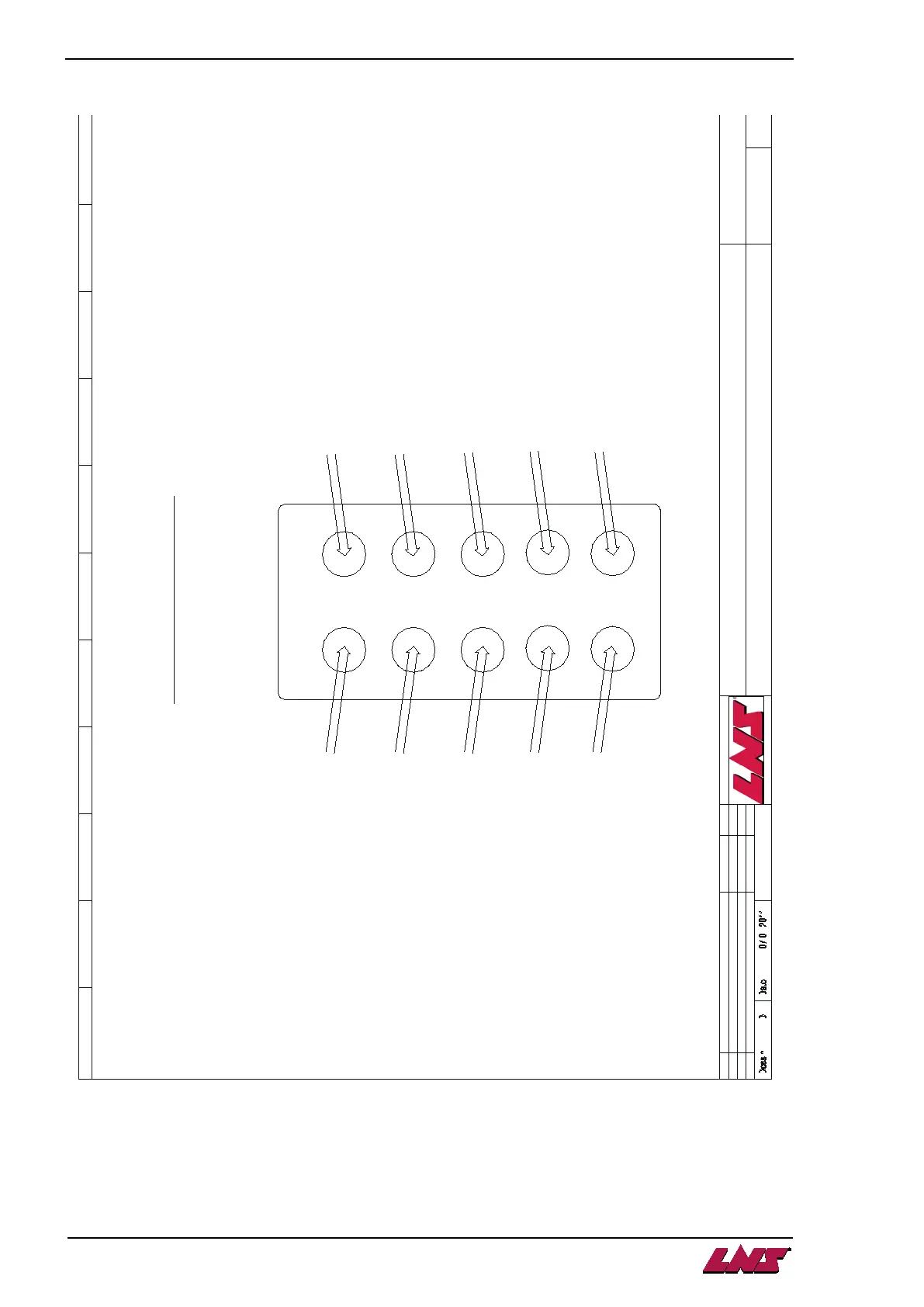

Electrical cabinet exit
KDT/ZE2x05
SQ2 / SQ3
KDT/ZE2x5
SQ4 / SQ5
KDT/ZE2x5
SR2 / SQ7
KDT/ZE2x06
SQ10 / manual
control box
KDT/ZE10
Group electro-valves
SMC
KDT/ZE06
SP1
KDT/ZE07
SQ11 / SQ8
KDT/ZE2x5
SQ6 / KA4
KDT/ZE2x5
SQ9 / KA3
KDT/ZE2x05
KA2 / SQ1
H Added option production control page 2 + 6 15.01.2016
G Crossed wire Black and White on SR2
F
Rev.
Added arc suppressor Z1 on KM1A
Description
DE
19.08.2015 DE
23.06.2015 DE
Date To
ELECTRICAL DIAGRAMS
according to Directive 2006/42/CE
TRYTON
PCD3
112-40-620
Page 10 / 10
Index
H
