Loctite 97152 - Product Description: Peripheral Module Connections; External Valve, Rotor, and Drive Connections

61
2 Description

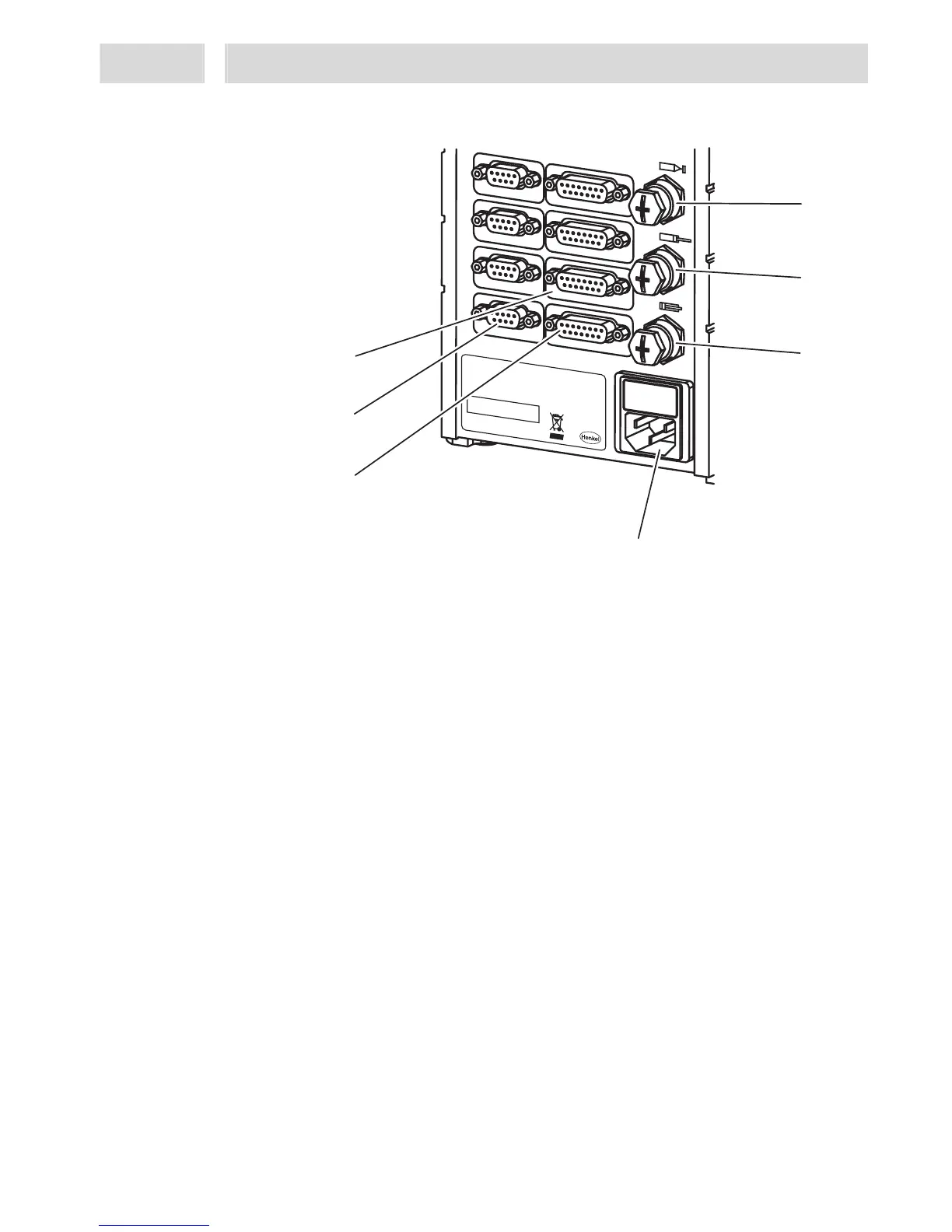

28 Connection XS 12 External solenoid valve module
Use to connect the 15 pin connection cord to the optional external solenoid valve
module 97204.
29 Connection XS 1 Start
Use to connect foot switch 97201.
Two Start inputs each for channels A and B via special start splitter cable 97203.
30 Connection XS 10 DC Drives
Use to connect a DC motor with drive box.
31
Power Connection 100 - 240 VAC, 50/60 Hz with glass tube miniature fuse 2A semi
time-lag, 5 x 20 mm
32 Connection XS 18: Cylinder in top position
Is used to connect the electric end position switch (for pin assignment see
section 7.2.10).
33 Connection XS 17: Cylinder in bottom position
Is used to connect the electric end position switch (for pin assignment see
section 7.2.10).
34 Connection XS 16: Rotor
Is used to connect the rotor (for pin assignment see section 7.2.9).
XS16
XS18
XS17
XS5 RS 232
XS8 I/O Port
XS3 Flow Monitor
XS2 Reservoir
XS1 Start
XS10 PLC Interface
XS12 Valves
XS11 DC Drive
Henkel AG & Co. KG
aA
Standort M
ünchen
Gutenbergstr. 3
D-85748 Garchin
g
100-240 VAC, 50/60 H
z
Fuse: 2A
T (time-lag)
Power Consumption: 100 W
Made in Ge
rmany
Place for S
erial No. Sticker
28
29
30
31
32
33
34
