60
2 Description
23
Connection XS 8 I/O Port
Connection option for additional peripheral units.
One input and one output for each channel, additionally two high-speed outputs, see
section 7.2.5 "XS 8 I/O Port".
24
Connection XS 5 RS232
Serial interface for connection of a programmable logic controller (PLC) or a PC for
data readout or for firmware updating.
Connect via 9 pin Sub D cable (1:1). Only pins 2, 3 and 5 must be assigned. Observe
the serial interface protocol.
9600 baud/1stop bit/no parity/8 data bits.
25
Connection XS 3 Dispense monitor
Connector for a Pre-Amplifier 97211, for flow monitoring on channel A. A second
pre-amplifier for channel B can be connected with splitter cable 97529.
Calorimetric dispense monitoring requires only one Pre-Amplifier 97512. Unlike
pressure based monitoring systems, this pre-amplifier can be used for monitoring
2 dispense valves.
26
Connection XS 10 PLC
Parallel interface for connection of a programmable logic controller.
Per dispense channel, two output signals each are available for “Ready” and “Error”,
and two input signals for “Start” and “Reset”; additional signals for “Refill” and
“Empty” provided from product supply (reservoir).
27
Connection XS 2 Product reservoir
Is used to connect the product reservoir. Only one reservoir can be actuated.

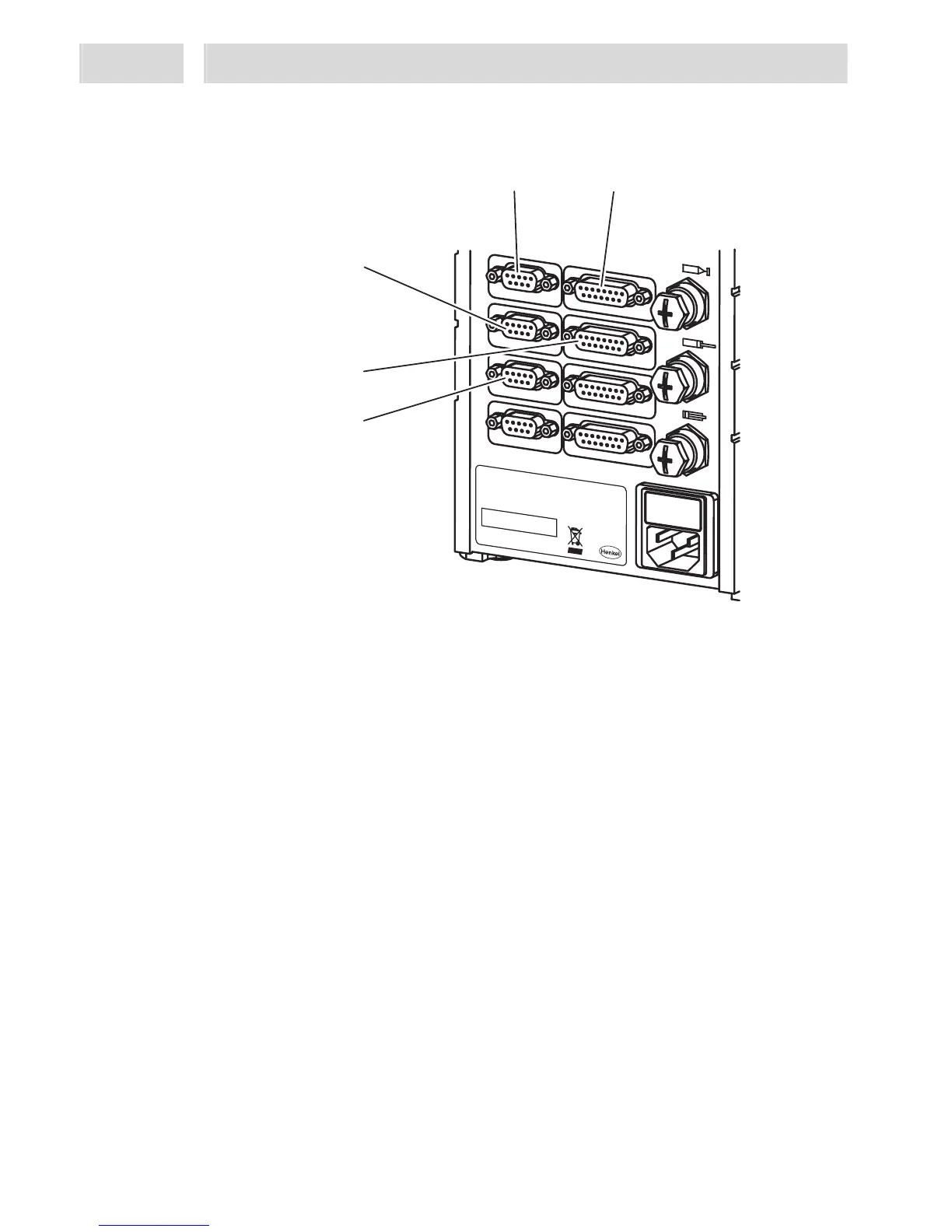

XS16
XS18
XS17
XS5 RS 232
XS8 I/O Port
XS3 Flow
Monito
r
XS2 Reservoir
XS1 Start
XS10 PLC
Inte
rface
XS12 Valves
XS11 DC Drive
Henkel AG
& Co. KGaA
Standort München
Gutenbergstr. 3
D-85748 Garching
100-240 VA
C, 50/60
H
z
Fuse: 2A T (time-lag)
Power Consumption: 100 W
Made in G
e
rmany
Place for S
erial No. Sticker
2324
25
26
27
