Loctite 97152 - Product Description: Pneumatic Interfaces; Reservoir and Valve Connection Ports

59

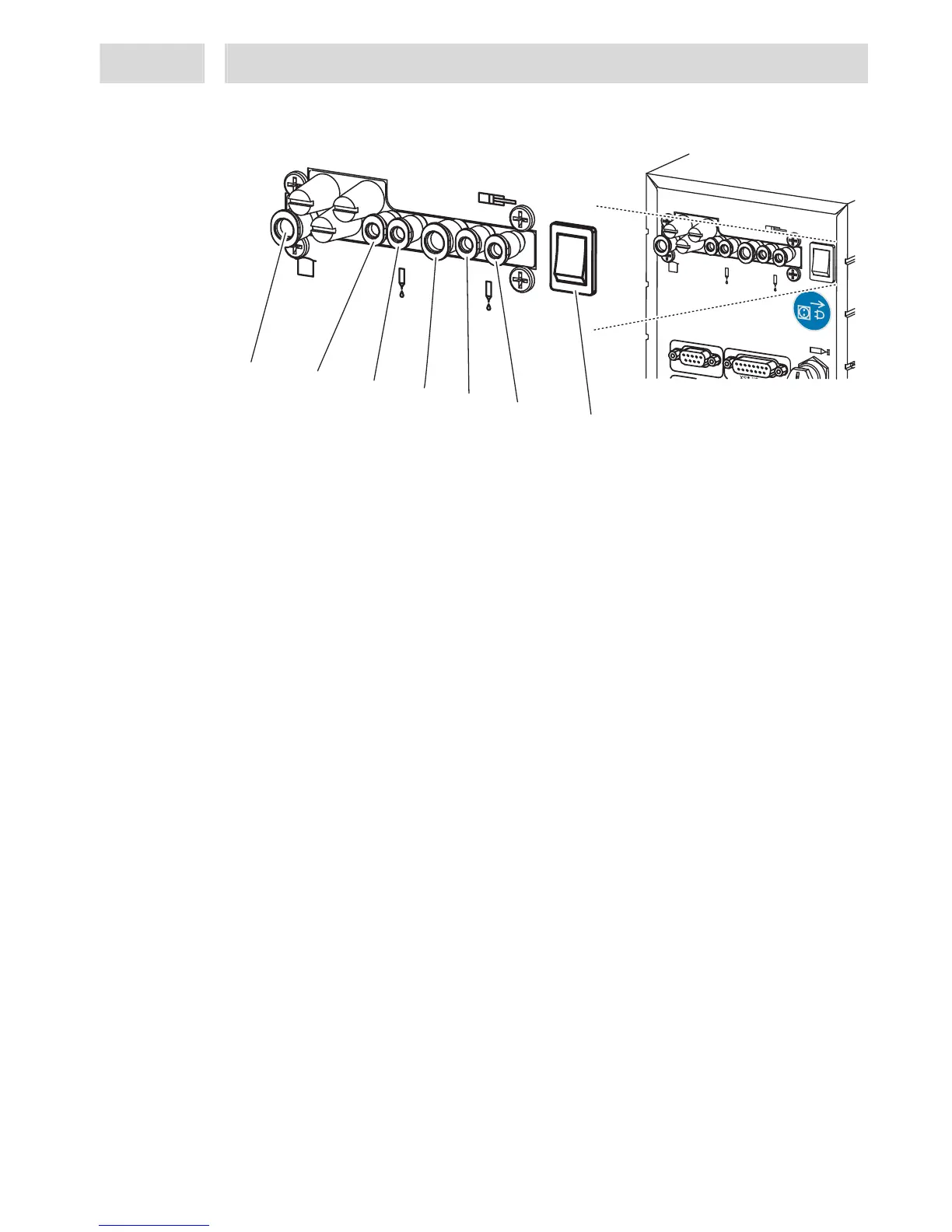

2 Description
16 Pneumatic Connection Reservoir
Regulated air pressure supply (0 - 7 bar, 0 – 100 PSI) to the reservoir, for
air hose OD Ø 6 mm , ID Ø 4 mm.
17, 18
Pneumatic Connection A to a dispense valve
I = Dispense valve open.
O = Dispense valve closed.
Use port I for single actuated dispensing valve and close port 0 with plug, for air hose
OD Ø 4 mm , ID Ø 2.5 mm.
19
Main air connector 2 - 10 bar (30 PSI - 145 PSI) for
air hose OD Ø 6 mm , ID Ø 4 mm
20, 21
Pneumatic Connection B to one dispense valve or one advancing slide
I = dispense valve open or advancing slide forward.
O = dispense valve closed or advancing slide backward.
Use port I for single actuated dispensing valve and close port 0 with plug, for air hose
OD Ø 4 mm , ID Ø 2.5 mm.
22 I/O switch
The power switch is used to switch the unit on and off.
+ 0.05
–0.10
+ 0.05
–0.10
+ 0.05
–
0.10
+ 0.05
–
0.10
B
I/0
P in
6-8 bar
0I 0I
A
P out
0.1-7 bar
XS16
XS5 RS 232
I/0
P in
6-8 bar
0I 0I
A
B
P out
0.1-7 bar
16
17
18
19
20
21
22
