Loctite 97152 - Product Description: Control Panel Keys; Keys for Setup, Priming, and Reservoir Control

58
2 Description
12

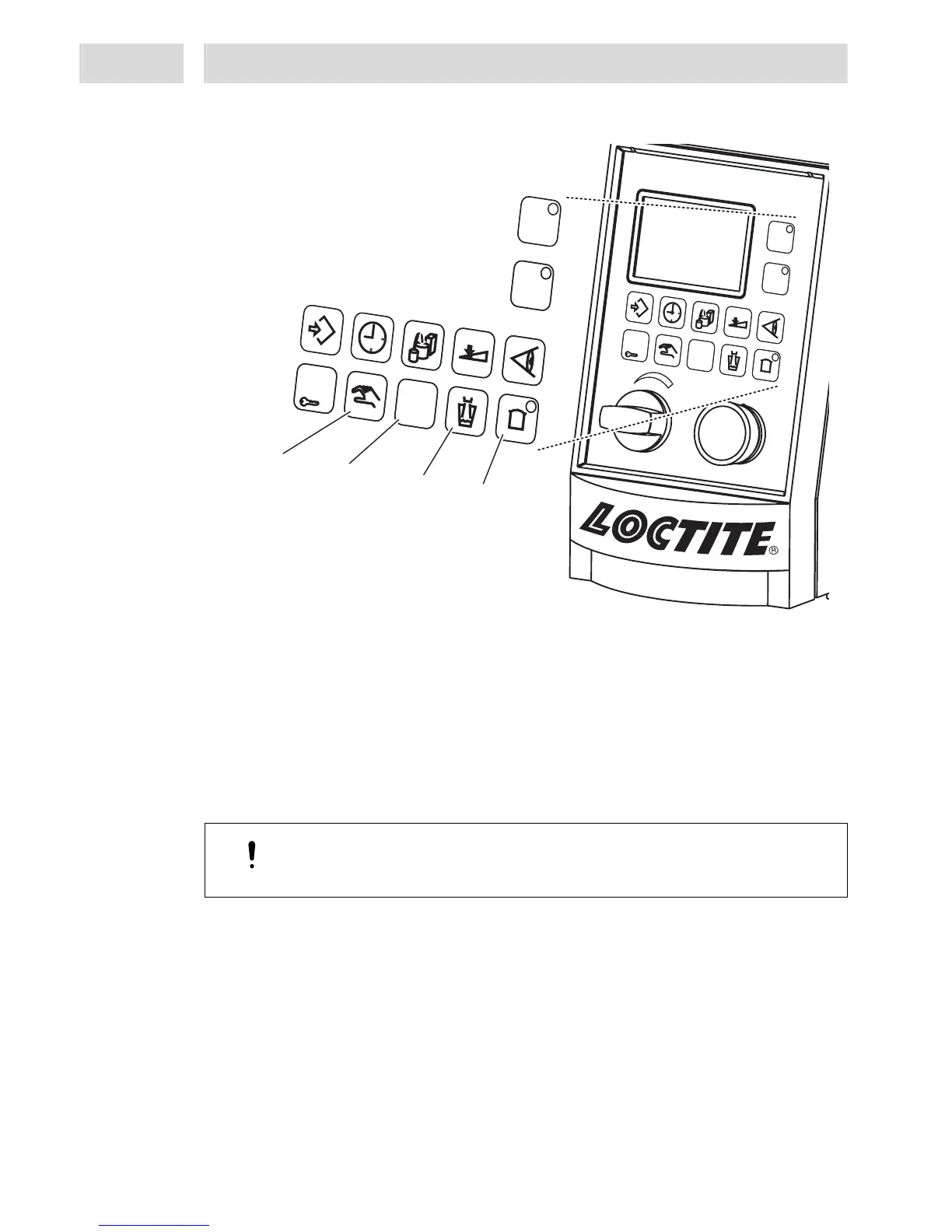

Key: Setup and Manual mode
Without preselected channel, for the following settings:
– Language setting,
– Channel setting,
– Factory settings,
– Setup of dispense program change, and
– Checking of input and output signals.
With preselected channel, the adjustments for setup mode can be made, such as
dispensing valve On or Off.
Caution!
All adjustment and setup operations in the MANUAL OPERATION directory must
be performed by authorized personnel only!
13 Key: Start
After channel preselection a complete dispense cycle can be started, e. g. in manual mode.
Without channel preselection, Channel A is automatically switched to active mode.
14 Key: Prime
With preselected channel, is used for priming the feed line of the selected channel or
opening the selected dispense valve as long as the key is depressed. This step
proceeds independent of the adjusted dispense time. If this key is pressed without
preselecting a channel, Channel A will be automatically switched to active mode.
15 Key: Reservoir
Key for reservoir pressurization/depressurization. Reservoir
pressurization/depressurization is actuated only as long as the key is depressed. The
reservoir will be depressurized automatically after low level signaling. For
pressurization, the hand lever valve on the product reservoir must be set to ON or
Pressurize.
ESC
Start
A
B
97152
ESC
Start
A
B
97152
ESC
Start
A
B
ESC
Start
B
A
12
12
14
14
12
13
14
15
