Logan X90 - Page 11

10A-7
ENGINE AND LOWER ENGINE ASSEMBLY
Engine/gearbox assembly
L90, and K7J, and 710
10A

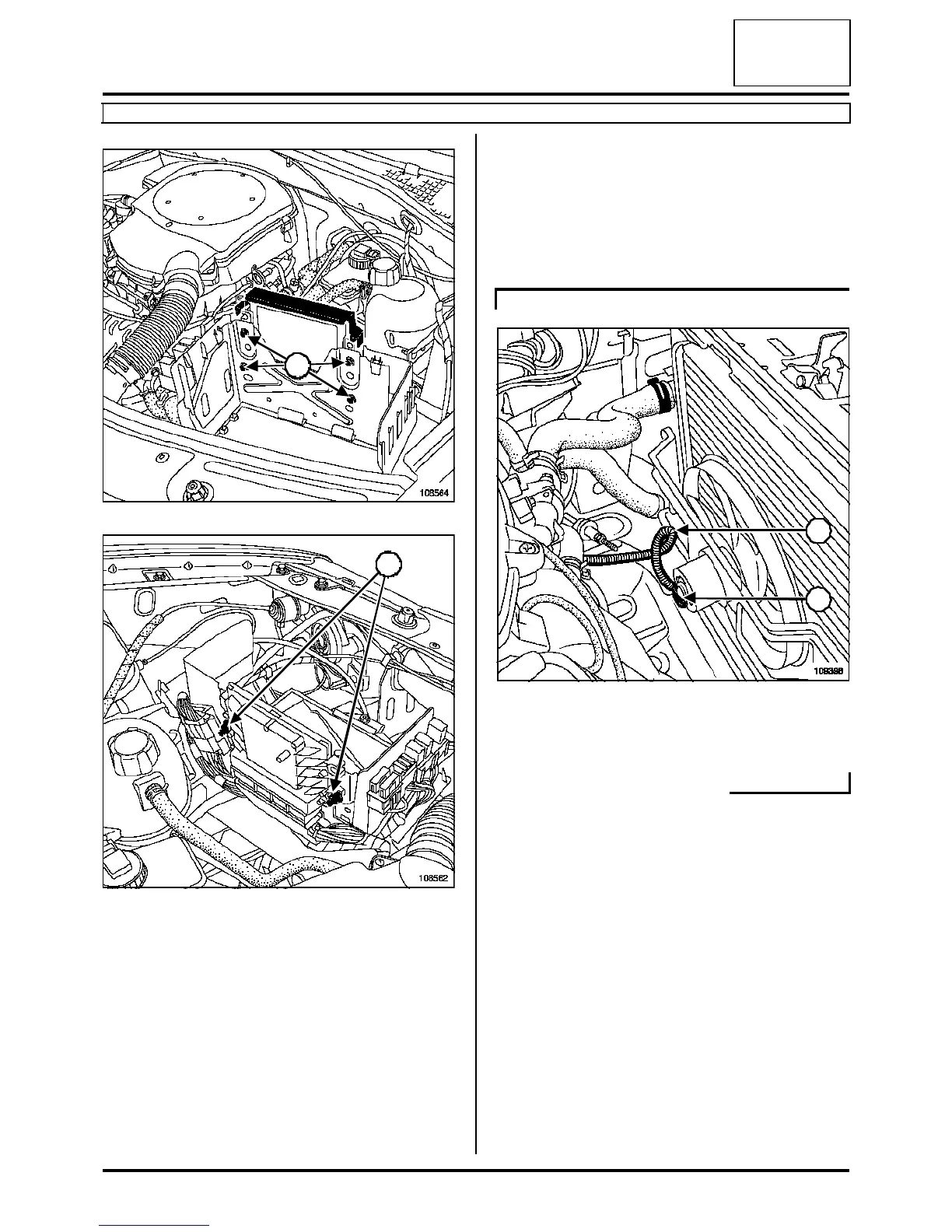

Remove:
-the injection computer protector in (4),
-the injection computer in (5),
-the fuse and relay supports,
-the electrolyte recovery tray under the battery,
-the air suction sleeve on the body,
-the front wheels,
-the engine undertray,
-the bumper mounting bolts under the sub-frame.
Drain:
- the engine oil if necessary,
- the gearbox oil if necessary,
- the cooling circuit via the bottom hose, using tool
(Mot. 1202-01), tool (Mot. 1202-02) or tool (Mot.
1448).
Disconnect fan assembly connector (6).
Unclip the electrical harness from fan assembly (7).
108564
108562
4
4
5
DIRECTION MANUELLE, and BASIC HEATING
109398
7
6
