11A-35
TOP AND FRONT OF ENGINE
Cylinder head gasket
L90, and K7M, and 710
11A
REMOVAL
Place the vehicle on a two-post lift.
Disconnect the battery, starting with the negative ter-
minal.

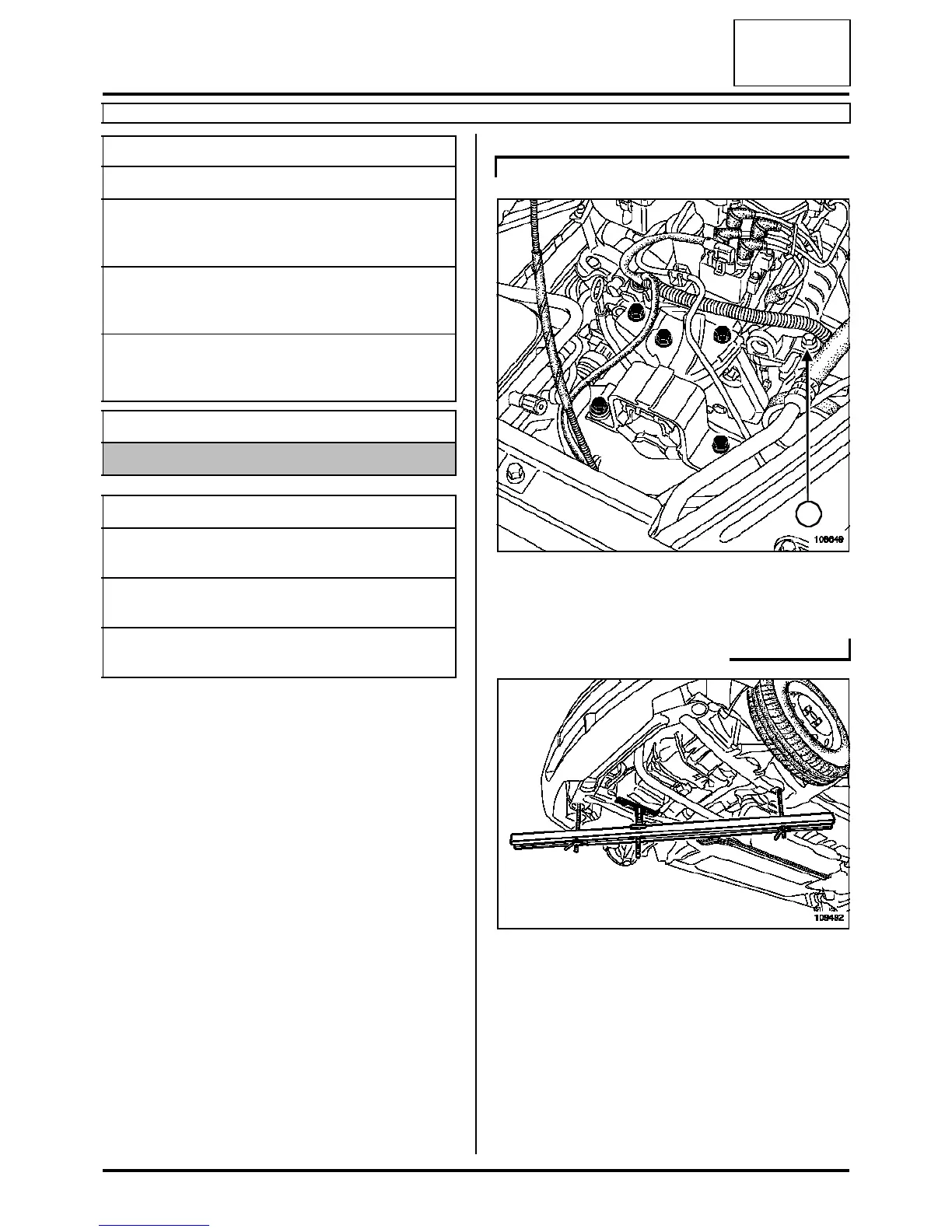

Remove mounting bolt (1) from the multifunction
support.
Set up engine support tool (Mot. 1672).
Remove:
- the accessories belt (see 11A, Top and front of
engine, Accessories belt ).
- the timing belt (see 11A, Top and front of engine,
Timing belt),
Drain the cooling circuit via the bottom hose using
tool (Mot. 1202-01), tool (Mot. 1202-02) or tool (Mot.
1448).
Essential special tooling
Mot. 1672 Lower engine support
Mot. 1202-01 Clip pliers for cooling
system hose clips
(large model)
Mot. 1202-02 Clip pliers for cooling
system hose clips
(small model)
Mot. 1448 Remote operation
pliers for cooling sys-
tem hose clips
Essential equipment
cylinder head testing tool
Tightening torquesm
cylinder head mounting
bolts
220˚ ±±
±±
10
rocker cover mounting
bolts
1 daNm
multifunction support
mounting bolts
2.1 daNm
DIRECTION ASSISTEE, and AIR CONDITIONING
108649
109492
1
