Logan X90 - Refitting the Air Conditioning Compressor Belt

11A-4
TOP AND FRONT OF ENGINE
Accessories belt
L90, and K7M, and 710, and DIRECTION MANUELLE, and AIR CONDITIONING
11A
Tension the belt by turning the alternator.
Set the belt tension using tool (Mot. 1505) or (Mot.
1715) to a value of 305 ±±
±±
10 Hz, (see Technical
Note 3786A, Engine and peripherals, 10A, Belt
tension tester: Use).
Turn the engine through three revolutions to position
the belt correctly.
Check the belt tension using tool (Mot. 1505) or (Mot.
1715).
If the belt tension is outside tolerance, readjust it.
Torque tighten:
-the alternator mounting screw (2.1 daNm),
-the alternator mounting bolt (4.4 daNm).
II - REFITTING THE AIR CONDITIONING
COMPRESSOR BELT

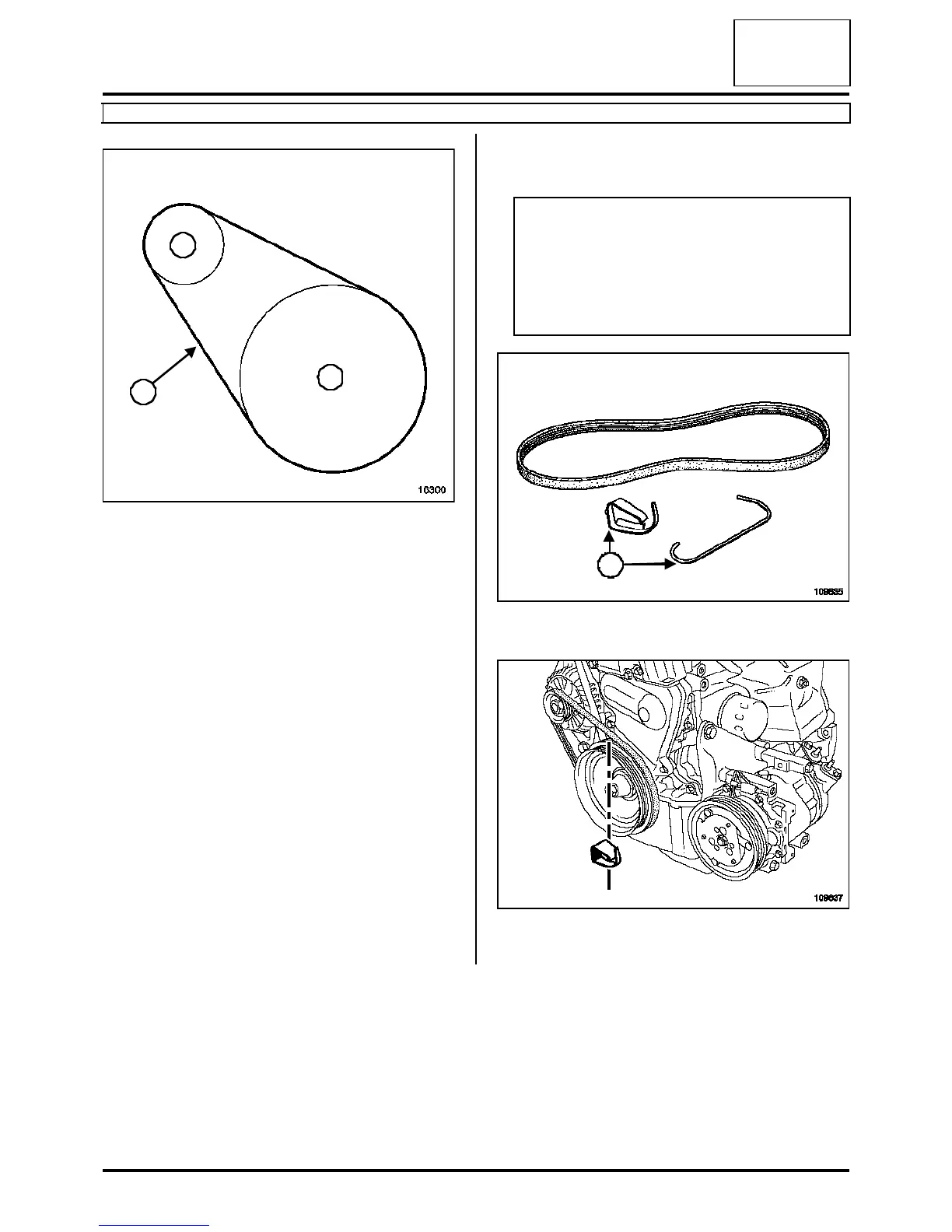

Air conditioning compressor belt fitting tool (6).
Clip the belt fitting tool on the crankshaft pulley as
shown in the diagram.
16300
(3)Crankshaft
(4) Alternator
(5) Measuring point
5
4
3
Note:
The air conditioning compressor belt does not
have a tension wheel, as it is tensioned automati-
cally, and it is refitted using a tool supplied with
the belt.
109635
109637
6
