13A-7
FUEL SUPPLY
Electric fuel: Checking
K7J or K7M, and 710
13A

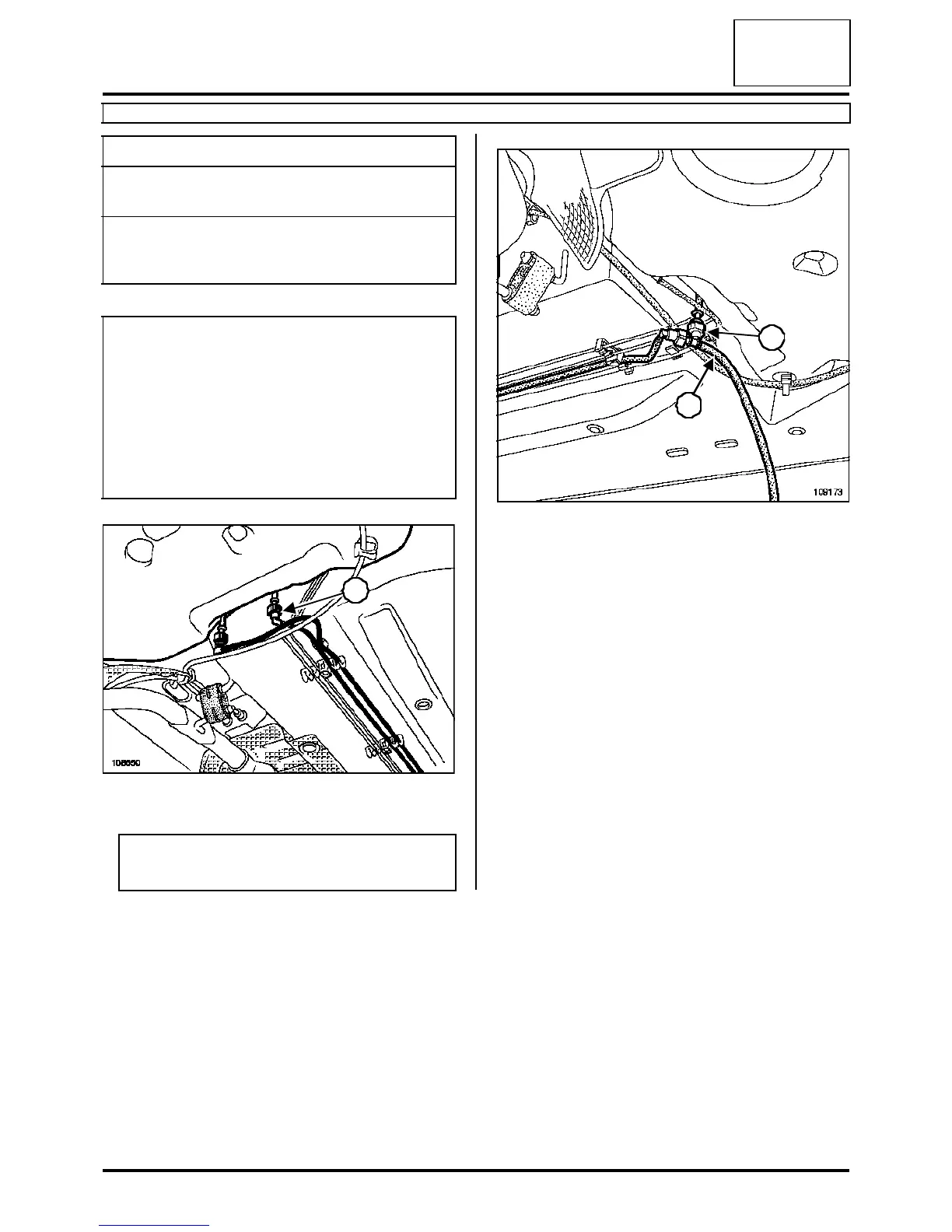

Disconnect the petrol supply pipe union (1).
Connect:
- the "T" union (Mot. 1311-08)(3) to the tank outlet pi-
pe,
- the pipe (2) that comes from the test kit (Mot. 1311-
01) to the "T" union (3),
- the petrol supply pipe to the "T" union (3).
Essential special tooling
Mot. 1311-08 Union for measuring
fuel pressure
Mot. 1311-01 Fuel pressure pres-
sure gauges and soc-
ket unions
IMPORTANT
During this operation, be sure to:
- refrain from smoking or bringing very hot objects
close to the working area,
-beware of fuel splashes when disconnecting the
union,
- protect sensitive areas from fuel outflow.
108650
IMPORTANT
Wear gloves during the operation.
1
109173
3
2
