19C-1
RESERVOIR

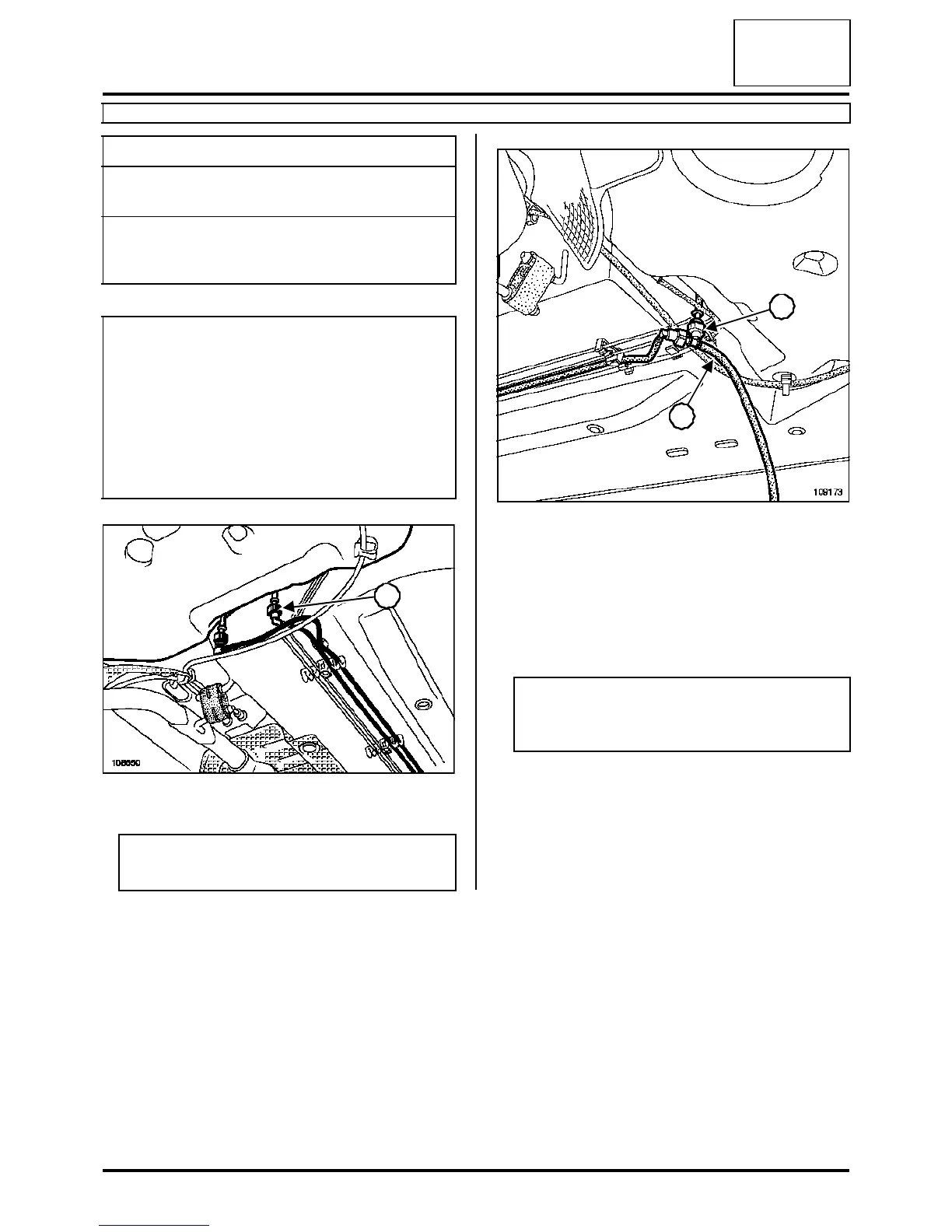

Draining the fuel tank
K7J or K7M, and 710
19C
Disconnect fuel supply pipe union (1).
Connect:
-T union (Mot. 1311-08)(3) to the pipe coming from
the fuel tank,
- pipe (2) contained in test kit (Mot. 1311-01) to T
union (3).
Place end of pipe (2) in a container.
Essential special tooling
Mot. 1311-08 Union for measuring
fuel pressure
Mot. 1311-01 Fuel pressure pres-
sure gauges and soc-
ket unions
IMPORTANT
During this operation, be sure to:
- refrain from smoking or bringing hot objects close
to the work area,
-beware of fuel splashes when disconnecting the
union,
- protect sensitive areas from fuel outflow.
108650
IMPORTANT
Wear gloves during the operation.
1
109173
IMPORTANT
This procedure must be carried out with the igni-
tion off.
2
3
