Logan X90 - Multifunction Support

10A-43
ENGINE AND LOWER ENGINE ASSEMBLY
Multifunction support
L90, and K7J, and 710, and DIRECTION ASSISTEE, and BASIC HEATING
10A
REMOVAL
Mount the vehicle on a two-post lift.
Remove:
-the engine undertray,
-the alternator (see 16A, Starting - Charge, Alter-
nator).
Remove the power assisted steering pump mounting
bolts.
Attach the power assisted steering pump to the sub-
frame.
Remove:

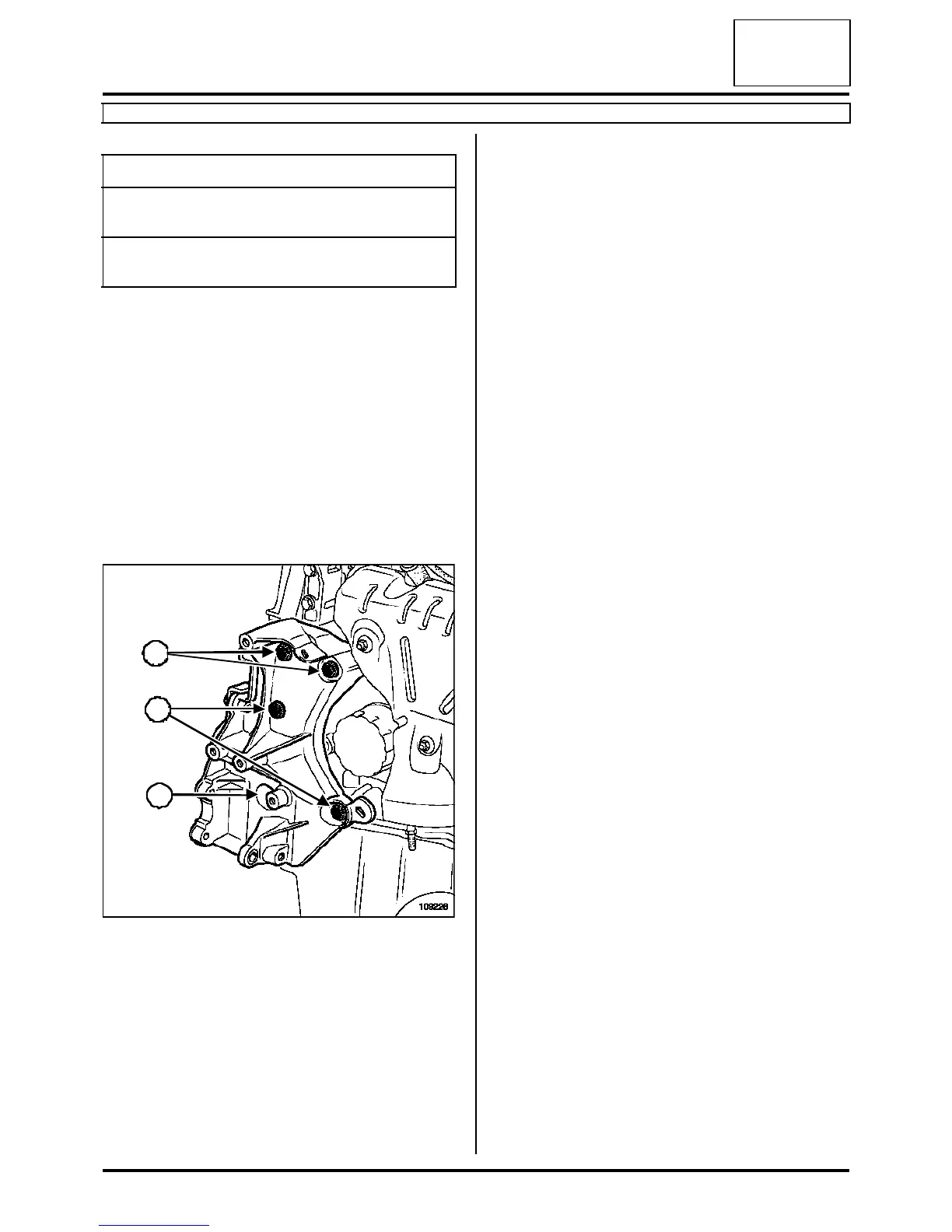

-the mounting (1) bolts of the multifunction support,
-the multifunction support.
REFITTING
Position the multifunction support.
Torque tighten:
- the multifunction support mounting bolts (4.4
daNm),
- the power assisted steering pump mounting
bolts (2.1 daNm).
Refit the alternator (see 16A, Starting - Charge, Al-
ternator).
Proceed in the reverse order to removal.
Tightening torquesm
multifunction support
mounting bolts
4.4 daNm
power assisted steering
pump mounting bolts
2.1 daNm
