19C-10
RESERVOIR
Fuel level sensor: Distinctive
K7J or K7M, and 710
19C
The fuel pump, the fuel filter and sender form an inse-
parable assembly.
I -CONNECTING THE PUMP/GAUGE/FILTER
ASSEMBLY
For information on connecting the pump/gauge/filter
unit (see Technical Note Wiring diagrams, compo-
nent 199).
II - CHECKING THE GAUGE SENDER UNIT
Remove the pump/gauge/filter assembly (see 19C,
Fuel tank, Pump/gauge/filter).
Measuring the height H:
-place the pump/gauge/filter assembly on a work sur-
face,
- measure height H between the float pivot and the
work surface.
Refit the pump/gauge/filter assembly (see 19C, Fuel
tank, Pump/gauge/filter).

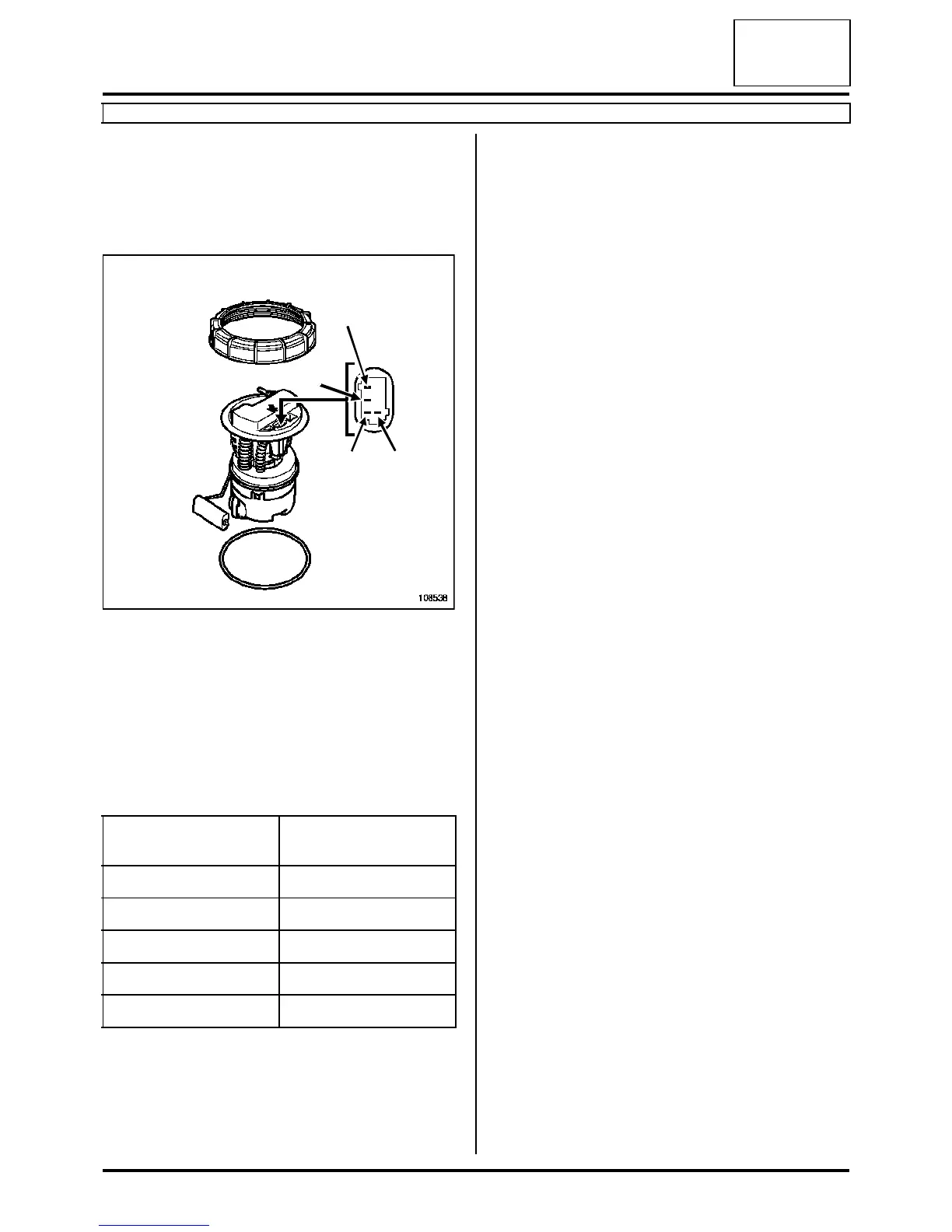

108538
Height H (mm) Value across terminals
A1 and B1 (Ω)
148 33 +8/-2
109 110 ±±
±±
9
82 166 ±±
±±
9
54 232 ±±
±±
10
24 313 +5/-10
C2
C1
B1
A1
