11A-3
TOP AND FRONT OF ENGINE
Accessories belt
L90, and K7M, and 710, and DIRECTION MANUELLE, and AIR CONDITIONING
11A
REMOVAL
Mount the vehicle on a two-post lift.
Disconnect the battery, starting with the negative ter-
minal.
Remove the front right wheel.
I -REMOVING THE AIR CONDITIONING
COMPRESSOR BOLT

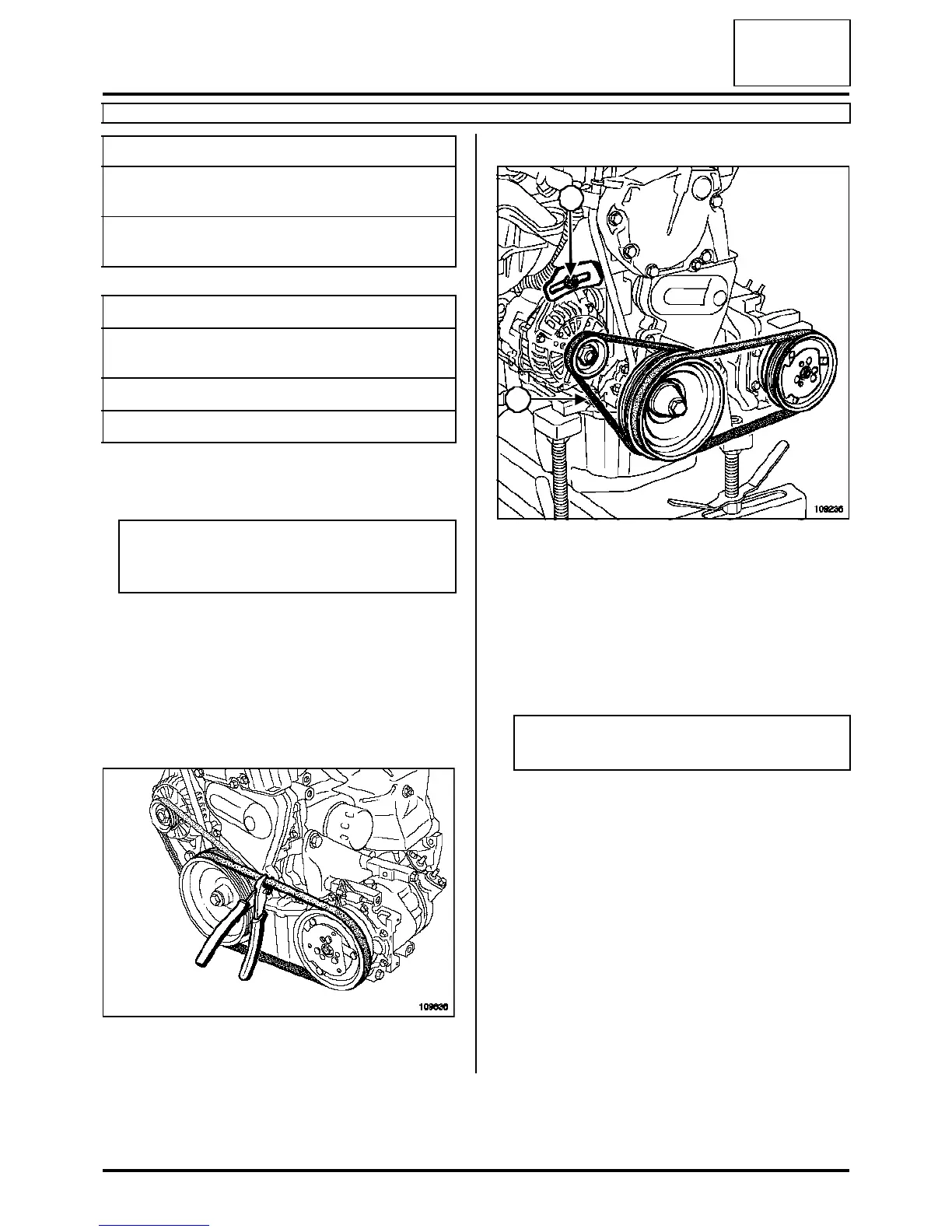

Cut the air conditioning compressor belt using cut-
ting pliers.
II - REMOVING THE ALTERNATOR BELT
Slacken:
- the alternator mounting screw (1),
- the alternator mounting bolt (2).
Remove the alternator belt.
REFITTING
I -REFITTING THE ALTERNATOR BELT
Refit the alternator belt.
Essential special tooling
Mot. 1505 Belt tension setting
tool (frequency meter)
Mot. 1715 Belt tension setting
tool (frequency meter)
Tightening torquesm
alternator mounting
screw
2.1 daNm
alternator mounting bolt 4.4 daNm
wheel bolts 10.5 daNm
WARNING
Never run the engine against its operating direc-
tion.
109636
109236
WARNING
Replace any belt that has been removed.
2
1
