14A-3
ANTIPOLLUTION
Fuel vapour canister
K7J or K7M, and 710
14A

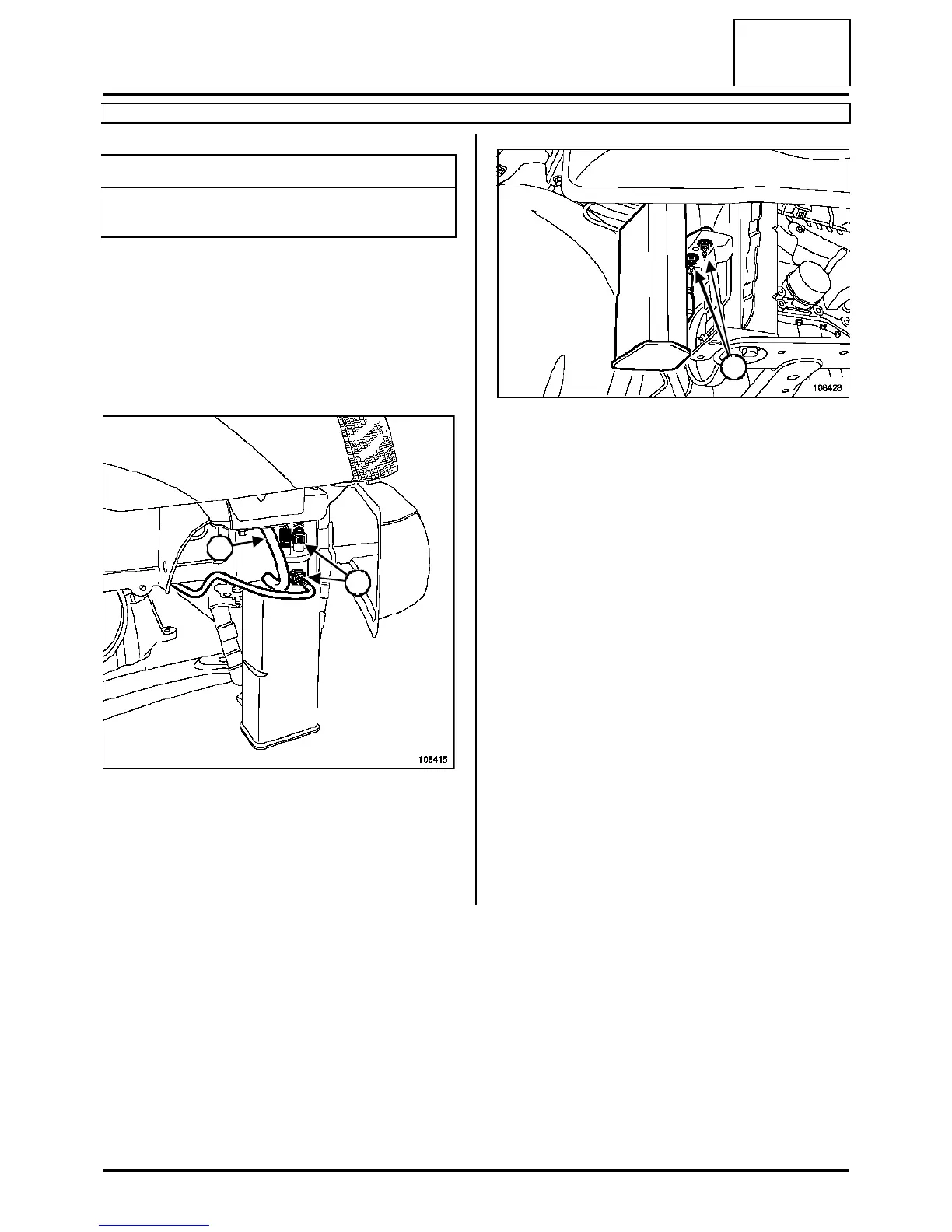

The fuel vapour absorber is located behind the front
bumper on the right-hand side of the vehicle.
REMOVAL
Mount the vehicle on a lift.
Remove the plastic screen from underneath the fuel
vapour absorber.
Disconnect:
-pipes (1) from the fuel vapour absorber (without re-
moving the bumper),
-the solenoid valve connector.
Unclip breather pipe (2).
Remove:
- fuel vapour absorber mounting nuts (3),
- the fuel vapour absorber.
REFITTING
Proceed in the reverse order to removal.
Torque tighten the fuel vapour absorber mounting
nuts (21 Nm).
Tightening torquesm
fuel vapour absorber
mounting nuts
21 Nm
108415
2
1
108428
3
